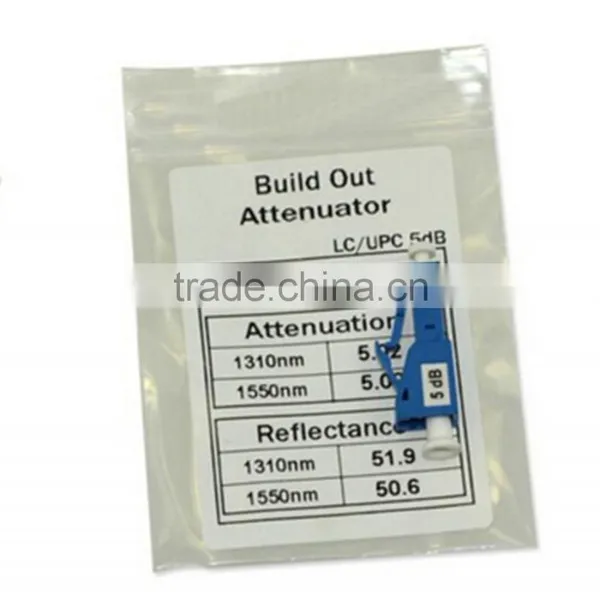

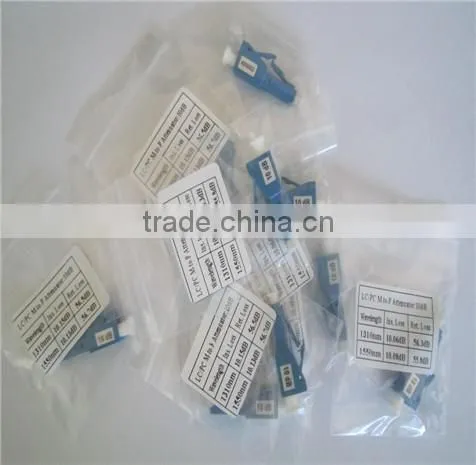

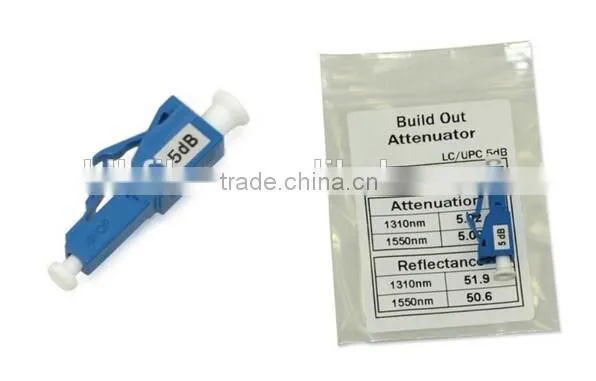

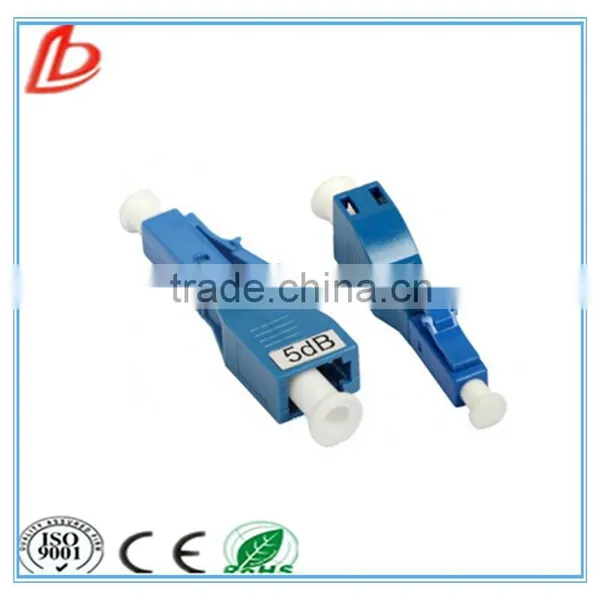

LC upc female to male 5dB fiber optic Attenuator, LC upc 5dB plug Fiber Optic Attenuator
Specifications
1.High precision
2.Female-male type
3.Long term reliability
4.RoHS compliant
Features
1.Fixed Attenuator(Fixed Type FC, SC, ST, LC)
2.Female to male type ( FC, SC, ST, LC)
3.In-Line Attenuator(Fused and Fiber Jumpers Type)
4.High Return Loss(In-Line and High RL Type)
5.Exact and Stable Attenuation(Variable Type
Parameters |
FC,SC, LC, ST, MU, E2000 |
Attenuation Range |
0dB ~ 30dB |
Operation Wavelength |
SM: 1260-600nm, or 1310nm/1550nm |
MM:850nm, 1310nm | |
Return Loss |
≤50dB (PC) |
≤55dB (UPC) | |
≤65dB (APC) | |
Attenuation Accuracy |
±0.5dB (1 ~ 10 dB) |
±10% of Attenuation Value (11~30 dB) | |
Polarization Dependent Loss (PDL) |
≤0.2dB |
Exchangeability |
≤0.2dB |
Repeatability |
≤0.2dB |
Durability |
≤0.2dB Typical 1000 matings |
Maximum Optical Input Power |
200mW |
Operating Temperature |
-20 ~ +75°C |
Storage Temperature |
-40 ~ +85°C |
Relevant products
Packaging Detail: Regular export carton package or as customers' request
1.We build and supply optical fiber patch cords and devices to meet the market demands.
1.Standard and customized OEM products from small to large quantity are welcome.
