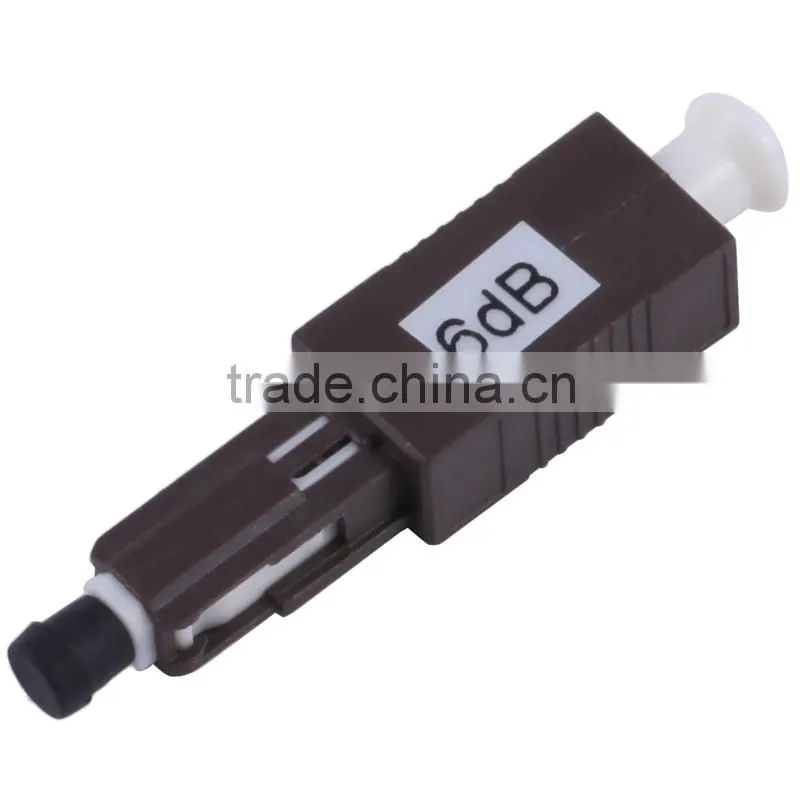

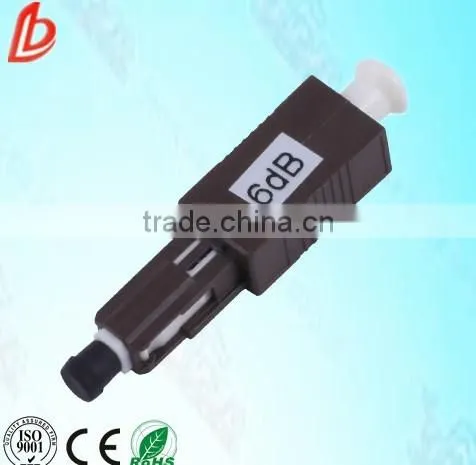

1-30dB plug-in fiber optic mu attenuator, optical fibre attenuator mu
Descriptions:
A fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is a requirement in dense wave division multiplexing and erbium doped firer amplifier applications where the receiver cannot accept the signal generated from a high power light source.
Features:
1.High precision.
2.Good stability.
3.Small size and bulk.
4.Easy to operate.
5.Based on IEC/Telcordia Bell GR-326-Core Tested.
6.Optional adapter: SM/MM, Simplex/Duplex.
7.100% Optic test(Insertion loss ≤0.20dB).
Applications:
1.Fiber optical distribuing frame
2.Fiber optical network system
3.CATV system
4.Long distance DWDM system
5.Optical add-drop multipexers(OADM)
Specification:
Return Loss: |
Less than 50 dB (SPC) |
|
Less than 55 dB (UPC) |
|
Less than 65 dB (APC) |
Attenuation Accuracy: |
+/-0.5 (1-10) |
|
+/-1.0 (11-30) |
Polarization Dependent Loss: |
Less than 0.2dB |
Maximum Optical Input Power: |
200mW |
Operating Temp. Range: |
-40 ~ 80°C |
Pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
