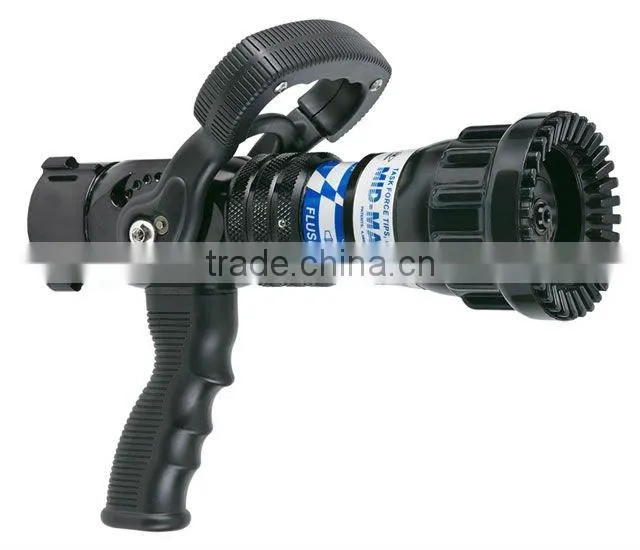

Help CenterMID-MATIC HM-VPGI Nozzle
US$ 79 - 95
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
zhean
Model Number:
HM-VPGI
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo / ShangHai / Lianyungang / Zhangjiagang / NanJing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
zhean
Model Number
HM-VPGI
Specifications
MID-MATIC W/GRIP1.5" or 2.5"American or British coupling
70-200 gpm (260-760 l/min).
patented slide-type valve
| Flow Control Method | Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern) |
| Flow Rate | 70-200 gpm (260-760 l/min) |
| Coupling Size (Nozzles) | 1 1/2 inch (38mm) |
| Coupling Style (Nozzles) | Rocker |
| Coupling Swiveling/Rigid (Nozzles) | Swivel (full time, even after tightening) |
| Pressure | 100 psi (7bar) |
| Nozzle Body Style | Nozzle with shutoff and pistol grip |
| Valve Design | Slide Valve (Stainless) |
| Valve Actuation Method | Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Fog Pattern Method | Molded Rubber Teeth (fixed) |
| Nozzle Bumper Material | Rubber - bonded |
1.5" Size Details (if you need 2.5" size, please write email to us)
MID-MATIC W/GRIP1.5" NH (38mm) Automatic pressure control with a flow capacity of 70-200 gpm (260-760 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free flow control, six detent flow positions, and "Gasket Grabber" inlet screen. Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear. Pistol grip is mounted below the valve. 1.5" NH (38mm) full-time swivel rocker lug coupling is standard. Weight: 6.000 lbs (2.721 kg) |
| PRODUCT SERIES OVERVIEW |
| • The Mid-Matic handline nozzle incorporates unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachments for increased finished foam performance. |
| • The Mid-Matic handline nozzle is available with 100, 75 or 55psi operational pressure choices to meet any fire ground operational challenge. All models are available with your choice of high strength bonded rubber fog teeth which provide a full filled pattern, or the wide protective pattern of unique stainless steel spinning teeth design. |
| • The Mid-Matic handline nozzle comes standard with reflective labeling as well as your choice of color coded pistol grip and shut off handle. This constant pressure variable gallonage nozzle series is available in tip only and shut off configurations, is individually serialized, and comes with exclusive 5 year warranty. |
