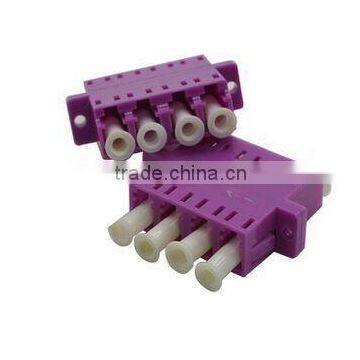

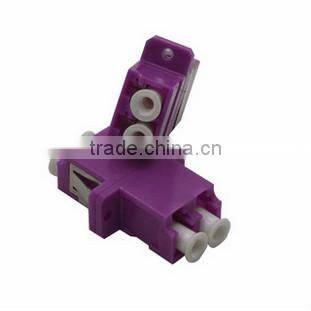

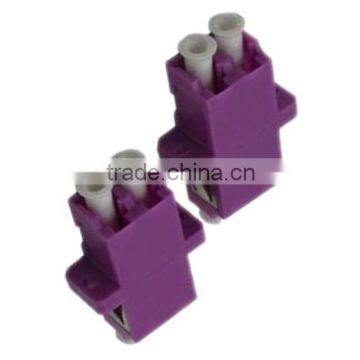

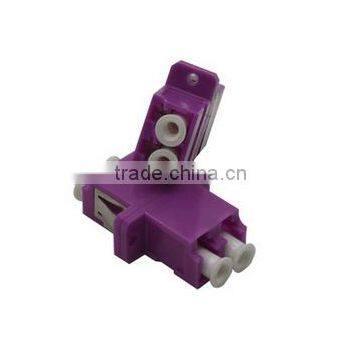

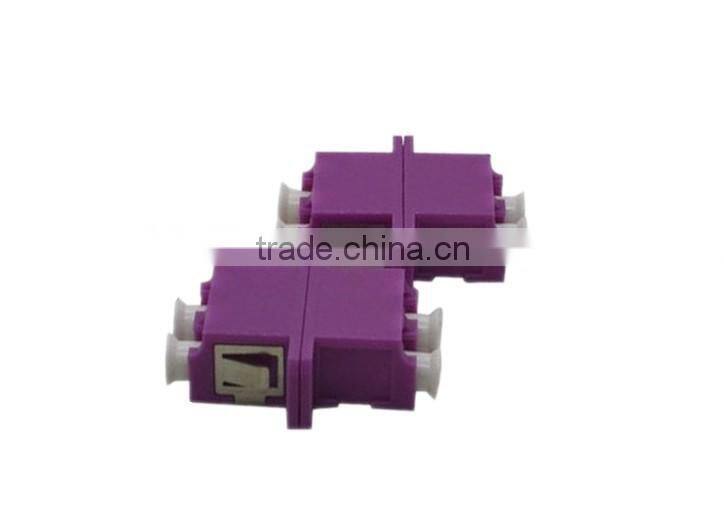

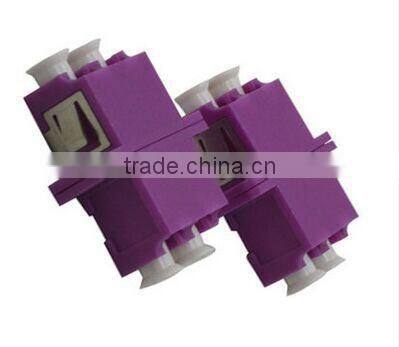

3D test pass 10G duplex om4 lc fiber optic adapter/OM4 optical fiber adaptor/OM4 duplex fiber lc coupler
Description:
Fiber Adapter (also is the flange) is a fiber optic connector on the activities of linking components. The complete series of products, including FC, SC, ST, LC, MTRJ, widely used in optical distribution frames (ODF), and optical fiber communications equipment, instrumentation, performance is stable and reliable.
Features:
1.Low insertion and back reflection loss, high precision alignment
2.Telcordia, TIA/EIA compliance
3.Low insertion loss, high return loss
4.Compact design, Plastic housing
5.Simplex, Duplex
Applications:
1.CATV network;
2.Active device/transceiver;
3.Telecommunication networks;
4.Multimedia;
5.Data processing networks;
6.Premise installation;
7.Gigabit Ethernetn,etc.
Specifications:
Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
||||||
|
|
SM |
MM |
SM |
MM |
SM |
||||
|
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Exchange ability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Repeat ability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Durability |
Time |
>1000 |
>1000 |
>1000 |
||||||
Operating Temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
||||||
Storage Temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
||||||
Pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
