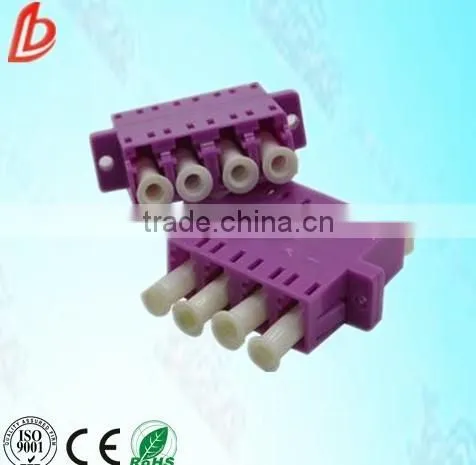

LC quad om4 Optical fiber adapter ,OM4 4 core fiber optic adapter
Description:

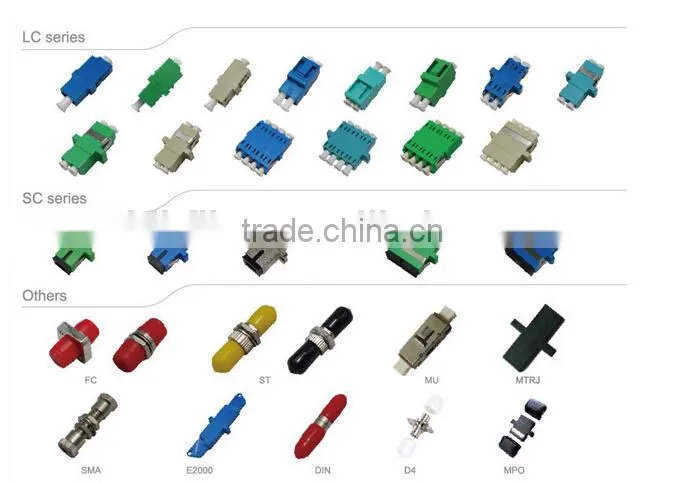

fiber optic adapters including FC,SC,ST,LC,MU,MTRJ,E2000,DIN,D4,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.Integrative construction of connector,good and low insertion loss and high returnloss can satify the requirements of fast,exact,lastingand stable connection in different environments!
* Single mode and Multimode OM4 LC duplex Fiber Optic flange adapter
* Zirconia sleeves or Phosphor bronze sleeves
* NTT standard compatible
* Increases panel density and quick plug in installation
* New SC footprint for duplex and 4 way design, more compact for most patch
* Compliant with Bellcore GR-910-CORE
* All parts compliant with ROHS
Application:
* Telecommunication
* CATV
* LAN & WAN
* Network
* Broadband
* FTTP.
Specification:
Product |
LC Adapter |
|
Mode |
S.M(Zroz) |
M.M(P.B) |
Insertion Loss |
≤0.2dB |
≤0.3dB |
Return Loss |
≥45dB |
-- -- |
Mating Durability(500times) |
Additional Loss≤0.1dB,Return Loss Variability<5dB |
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability<5dB |
|
Operating Temperature |
-40°C~+75°C |
|
Storage Temperature |
-40°C~+85°C |
|
Ordering Information :
| Item | Mounting | Sleeve Material | Adapter Material | Colour |
| SM/PC Simplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM(APC8o) Simplex | 2 Flange | Zirconia Ceramic | Plastic | Green |
| SM/PC Duplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM(APC8o) Duplex | 2 Flange | Zirconia Ceramic | Plastic | Green |
| SM/PC Duplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM/PC Simplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| MM/PC Simplex | 2 Flange | Ceramic/ phosphor bronze | Plastic | Beige |
| MM/PC Duplex | 2 Flange | Ceramic/ phosphor bronze | Plastic | Beige |
| MM/PC Duplex | 2 Flange | Ceramic/phosphor bronze | Plastic | Beige |
Pictures:
Factory:
Certificate:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
