18 Months Warranty Vibrating Screen Vibrating Screen Price Double-decks Round Vibrating Screen Vibrating Screen for Mining
- Qingdao or other ports
You May Like
-
18 Months Warranty Vibrating Screen YA/YAH Series Double-decks Round Vibrating Screen for Mining
-
Mining Machinery YA/YAH Series Double-decks Round Vibrating Screen for Mining 18 Months Warranty Vibrating Screen
-
Xxnx Hot Vibrating Screen Double-decks Round Vibrating Screen for Mining Vibrating Screen Machine
-
Xxnx Hot Vibrating Screen Vibrating Screen Price Vibrating Screen for Mining
-
2016 Hot Sale Round Vibrating Screen for Mining Xxnx Hot Vibrating Screen
-
Vibrating Screen Price Double-decks Round Vibrating Screen Vibrating Screen for Mining
Product Details
| Condition | New | Type | Other, Circular, Separator | |
| Application | Other, Ore, Ore | Place of Origin | Shandong, China | |
| Brand Name | Jinpeng | Model Number | YA | |
| Voltage | 380V | Power(W) | 30kw | |
| Dimension(L*W*H) | Choose | Weight | 380kg | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0086-535-3975297

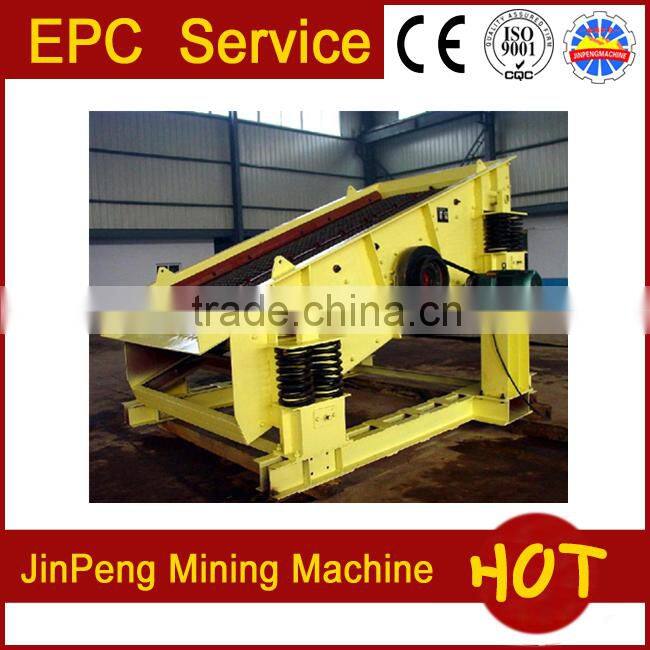

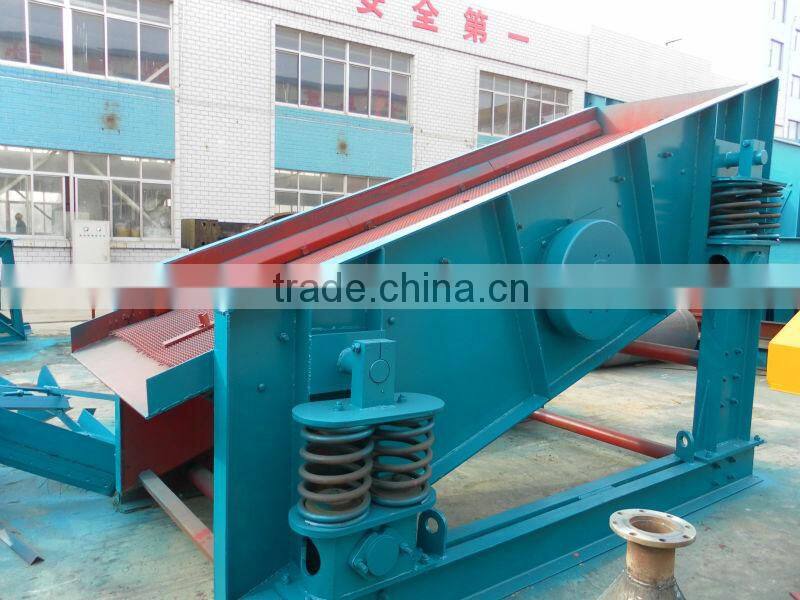

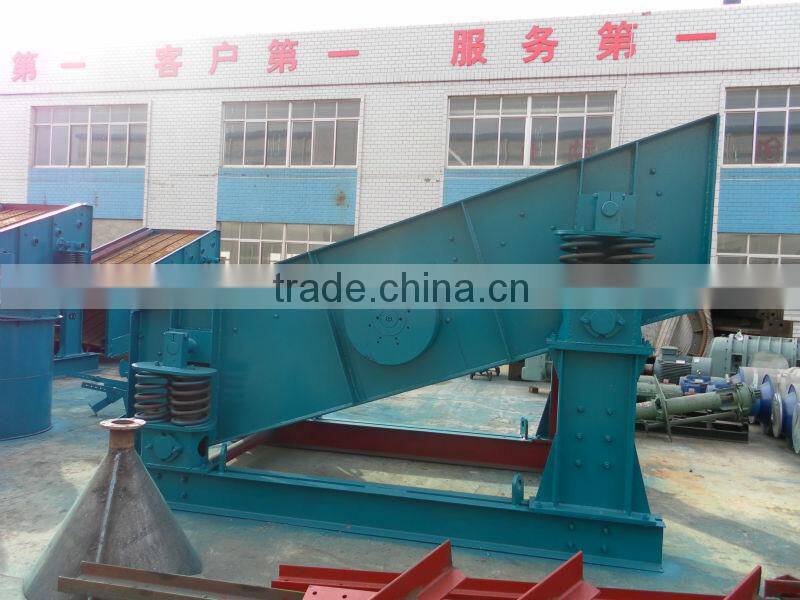

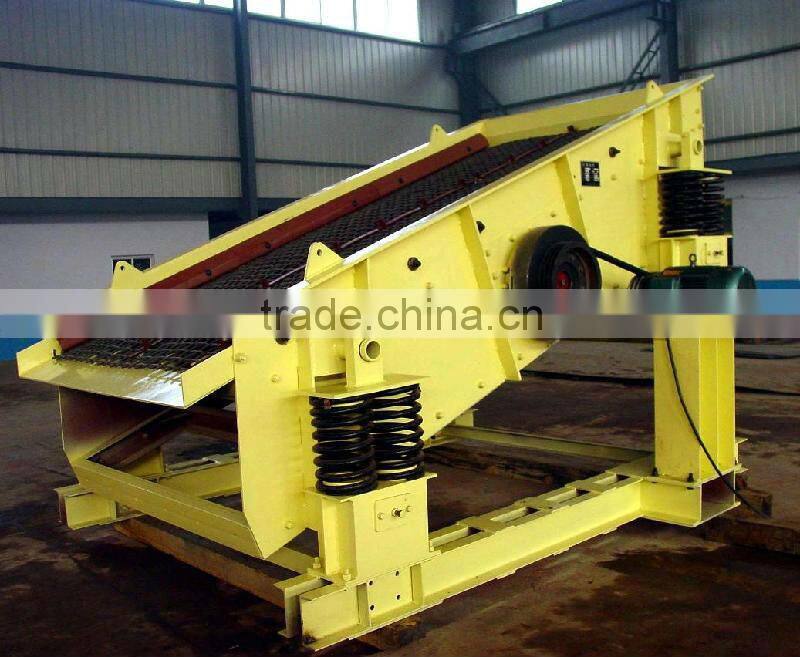

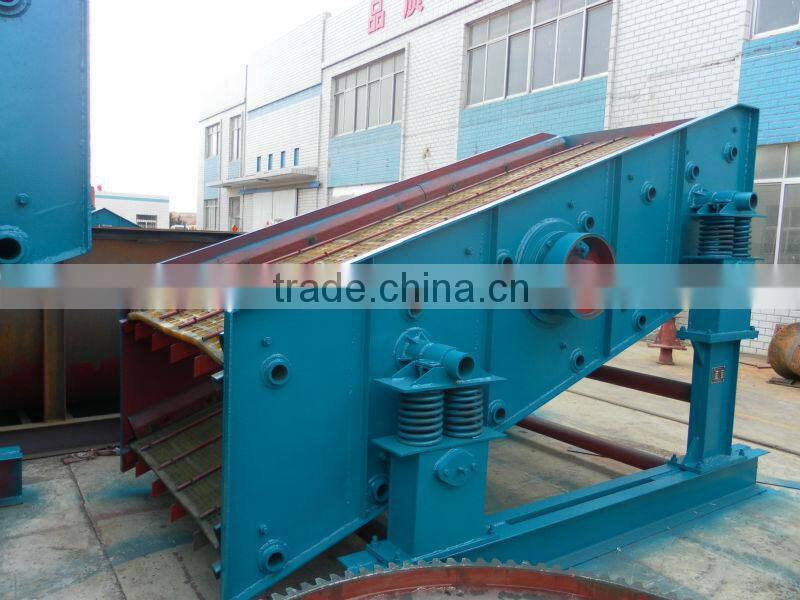

YA/YAH series double-decks round vibrating screen for mining

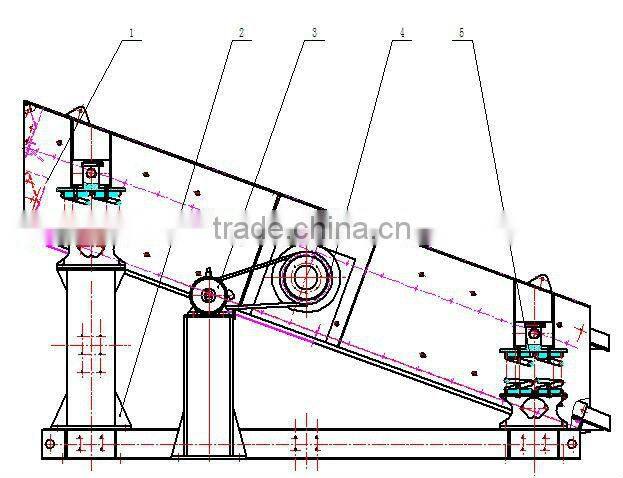

- Screen Box 2. Support chassis 3. Motor 4. Vibrator 5. Spring-loaded devices
This series vibrating screen with simple structure, and easy to maintenance, reliable to operation, and screen efficiency high. It can desliming, dehydration and removing medium operation for medium-grained material for mining, coal, electricity, construction and chemical materials. And installation of rubber screen is preferred for grading cokes material.
The motor spread to vibrator through the V belt, because the rotation of eccentric shaft causing vibration, making the screen deck do circular tracking movement, thereby make mineral rolling and vibrating on the surface of screen. The large on the surface of the screen, the size of the material less than screen pore will fall under the screen to achieve the purpose of screening.
Name | Number | Unit | Name | Number | Unit |
Specification of screen deck | 1200×2400 | mm | size of screen pore | Decide by customer | mm |
Angle of Screen | 20 | degree | maximum size of feed particle | 100 | mm |
Amplitude | 3.5 | mm | Motor | Y132S-4 | 5.5KW
|
Vibration times | 800 | ||||
No. of screen deck Layer | 1 | layer | dimension | 2469×2269×2325 | mm |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Welcome to visit our lab, design institute and factory!
