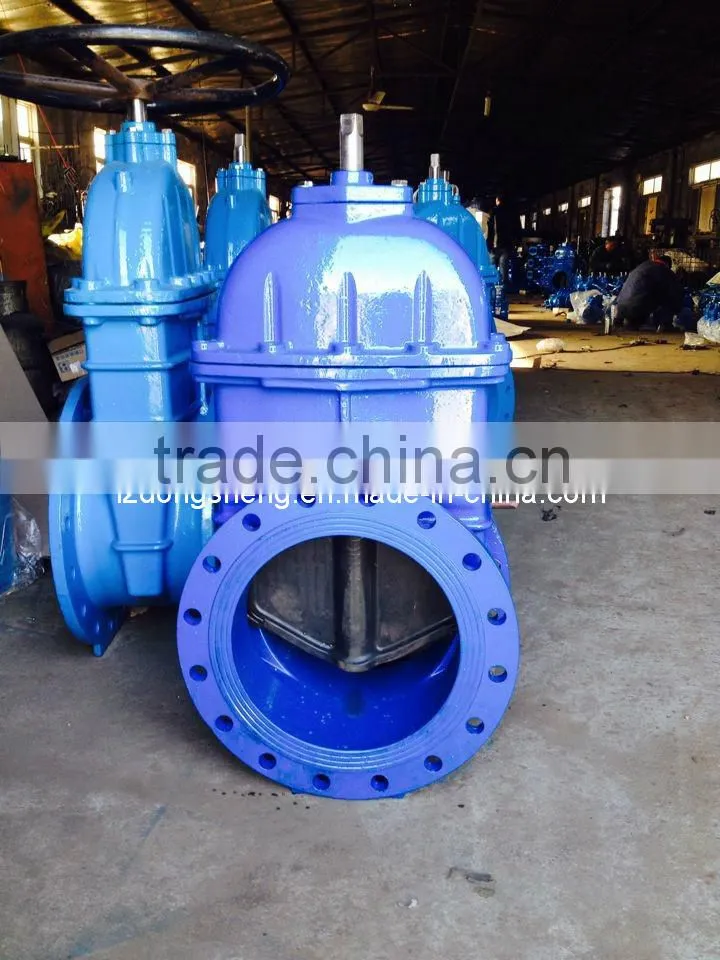

DN50 Cast iron Gate Valve PN16 With Handwheel

Non rising stem resilient seated gate valves

1. Product introduction

The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

2. Specification

Size: DN50 - DN1000mm

Design Standard:  BS, DIN, ANSI, JIS etc.

Working Temperature: -10°c to 120 °c (EPDM)

Flange Drilling: BS4504 PN10/PN16/PN25

3. Main Parts Material

Body : Cast iron or Ductile iron
Disc : Ductile iron with NBR / EPDM
Bonnet : Cast iron or Ductile iron

Stem : Stainless steel
