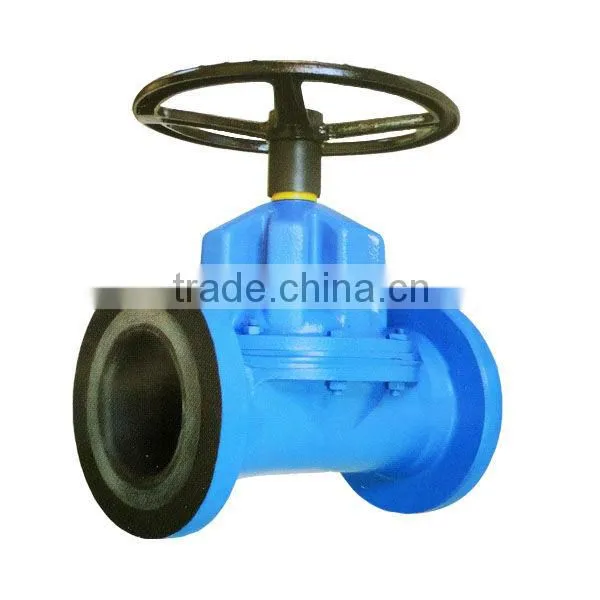

Hard Rubber Diaphragm Valve Used for Chemical Industry
US$ 1 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flanged Ends Diaphragm Valve Shut-off to Atmosphere by DiaphragmUS$ 1 - 100MOQ: 10 Pieces -
Saunders Type Valves Diaphram Suit VacuumUS$ 1 - 100MOQ: 10 Pieces
-
Diaphragm Valve(Shut Off Valve PN16 With Gas)US$ 1 - 100MOQ: 10 Pieces
-
Handle Operated Hard Rubber Linings Shut off ValveUS$ 1 - 100MOQ: 10 Pieces
-
Straight-Through Industrial Diaphragm Stop ValvesUS$ 1 - 100MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
Low Pressure
Power
Manual
Material
Casting
Temperature of Media
Normal Temperature
Media
Water
Port Size
DN50-DN300
Place of Origin
Shandong, China
Model Number
GMV
Brand Name
DS
Application
General
DIAPHRAGM VALVE
DESCRIPTION:
1.Working pressure: DN50-DN125 1.0Mpa
DN150-DN200 0.6Mpa
DN250-DN300 0.4Mpa
2. Working temperature: NBR:-20°C ~ +60°C
3. Face to face: EN588-1
4. Flange standards: EN1092-2,BS4504 etc.
5. Testing: DIN3230,API598
6. Medium: Cement, Clay, Cinder, Granular fertilizer and so on solid fluid, Fresh Water, Sea water, inorganic acid and alkaline liquid etc.
NO. |
PART |
MATERIAL |
1 |
BODY |
Cast iron GG25/Ductile iron GGG40 |
2 |
BODY LINED |
NATURAL RUBBER |
3 |
DIAPHRAGM |
NATURAL RUBBER |
4 |
VALVE CLACK |
Ductile iron GGG40 |
5 |
BONNET |
Ductile iron GGG40 |
6 |
STEM |
STAINLESS STEEL |
7 |
BUSH |
PLASTIC |
8 |
HANDWHEEL |
Ductile iron GGG40 |
9 |
PIN |
CARBON STEEL |
10 |
BOLT |
STAINLESS STEEL |
