Gold Equipment Cyclone Mineral Separator Hydrocyclone Sudan Market Gold Mining
- Qingdao or other port
- T/T L/C D/P D/A
You May Like
-
Gold Equipment Cyclone Mineral Separator Hydrocyclone Gravity Seperation Machine New Technology Low Energy
-
Copper Equipment Cyclone Mineral Separator Hydrocyclone Gravity Seperation Machine
-
Gold Equipment Cyclone Mineral Separator Hydrocyclone Gravity Seperation Machine
-
Gold Equipment Cyclone Mineral Separator Hydrocyclone New Plant Aftica Market
-
Gold Equipment Cyclone Mineral Separator Hydrocyclone New Tehnology
-
Gold Equipment Cyclone Mineral Separator Hydrocyclone High Quality
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 100T/h | Place of Origin | Shandong, China | |
| Brand Name | Jin Peng | Model Number | GXX/JAX | |
| Voltage | Request | Power(W) | Power | |
| Dimension(L*W*H) | Varies | Weight | 1.2t | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0086-13153515710

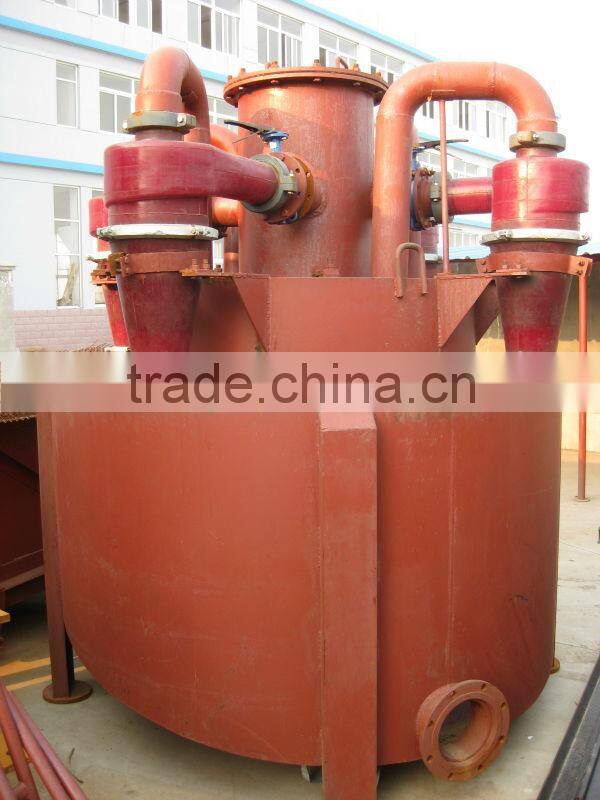

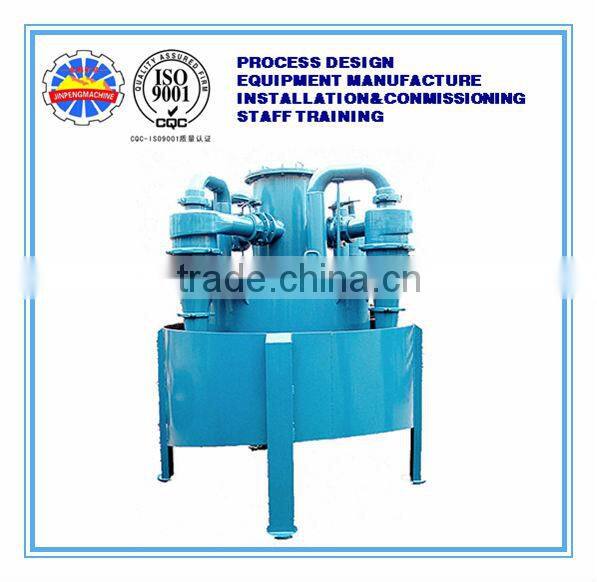

High efficiency hydrocyclone group separator for mining
Cyclone is mainly used in the mineral processing for classification, sorting, concentration and desliming, etc. It is non-power equipment, which is pumped the materials to the cyclone, due to a certain pressure to separate materials in different proportions.

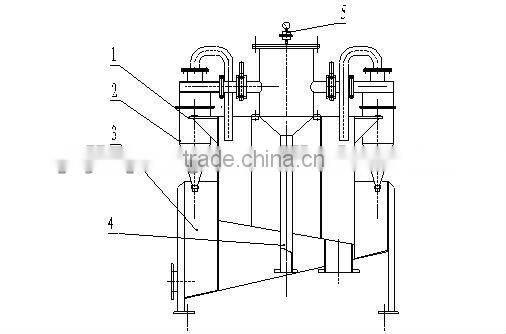

1. Cyclone support 2. Cyclone 3. Tank 4.Feed distributor 5. Pressure gauge
The characteristics of hydrocyclone: a. simple structure, flexible and light. b. Low-cost, easy disassembly and maintenance, occupying small space, little foundation fee. c. Large capacity in unit volume d. The overflow size can be 10μm. e. Higher efficiency, etc.
1, Feeding particle max. size3mm;
2, Feeding pressure: 0.03-0.25MPa;
3, Separation particle size :40-100μm;
4,Capacity (flow rate) 60m ³ / h;
5,Pump requirement: choose Slurry pump or slime pump, flow rate > 30% of the cyclone flow can be equipped with valves control ;
6,Installing pressure gauge in the cyclone feed Department, , pressure can not be less than 0.05MPa, can not be higher than 0.3 MPa;

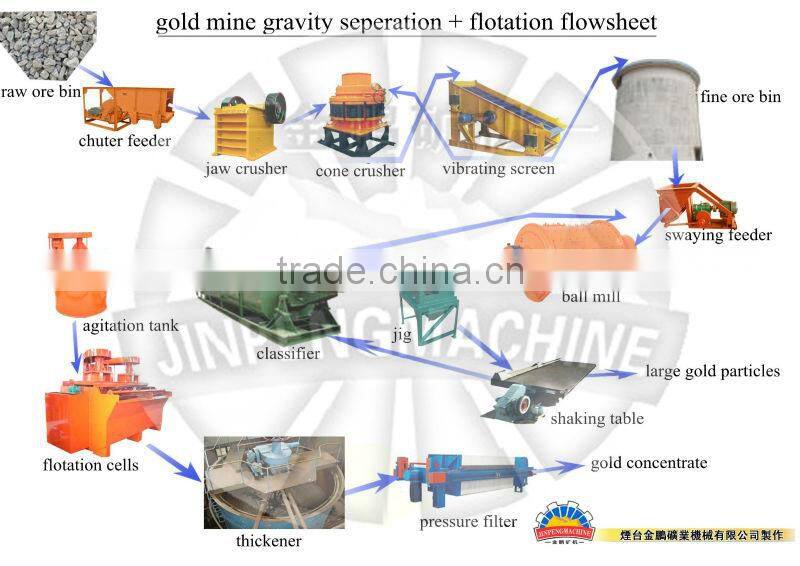

Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
