Help CenterIndustrial Valves
US$ 10 - 1,000
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Other, Low Pressure, Valve pressure rating 200 psi
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Shandong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ductile Iron Butterfly Valve With Spline KeyUS$ 1 - 500MOQ: 50 Pieces -
Industrial Butterfly ValveUS$ 10 - 1,000MOQ: 50 Pieces
-
Butterfly Valve,Lug Style,Pipe Size 4 InUS$ 10 - 1,000MOQ: 50 Pieces
-
Flange Ends PN16 Wafer Type Butterfly ValveUS$ 1 - 500MOQ: 50 Pieces
-
Butterfly Valve - Cast Iron, International, Electroplated Ductile Iron DiscUS$ 1 - 500MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Other, Low Pressure, Valve pressure rating 200 psi
Power
Manual
Material
Casting
Temperature of Media
Medium Temperature
Media
Oil
Port Size
DN50-300
Place of Origin
Shandong, China
Model Number
BUT-V301
Brand Name
DongSheng
Application
General

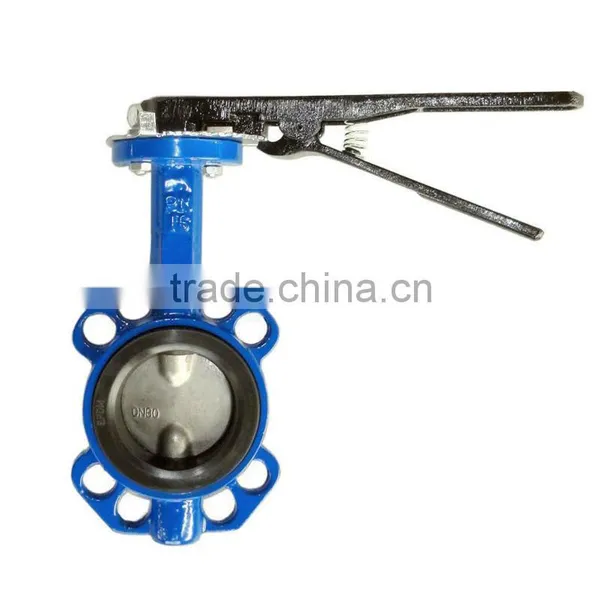

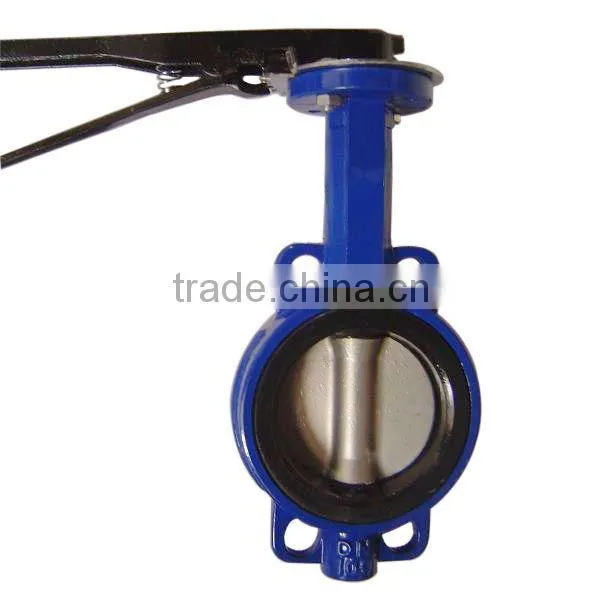

Butterfly valve - Cast Iron, International, Wafer Type
The valve performs well in commercial applications including HVAC and hot/cold potable water.
DESCRIPTION:
- Working pressure : 1.0 / 1.6Mpa
- Working temperature : NBR 0 °c to 80 °c ; EPDM -10 °c to +120 °c
- Face to face : DIN3202 K1
- The flange can be as per : DIN2501 PN10/16; BS4504 PN10/16; BS10 TABLE D/E ; JIS2220 10K/16K ; ANSI 125/150 .
- Testing: DIN3230, API598
- Medium: Fresh water ; Seawater ; food stuff ; all kinds of oil etc.
MATERIAL LIST:
| NO. | Part | Meterial |
| 1 | Circlip | 65MN |
| 2 | Lock Piece | Steel |
| 3 | Sleeve | PTFE |
| 4 | O-ring | NBR |
| 5 | Shaft | SS304 |
| 6 | Body | Cast Iron GG25 or Ductile Iron GGG40 |
| 7 | Seat ring | NBR or EPDM |
| 8 | Disc | GGG40 ; SS304 or SS316 |
| 9 | Shaft | SS304 |
| 10 | Screw | Steel |
