2016 Hot Sale Cone Crusher in China
You May Like
-

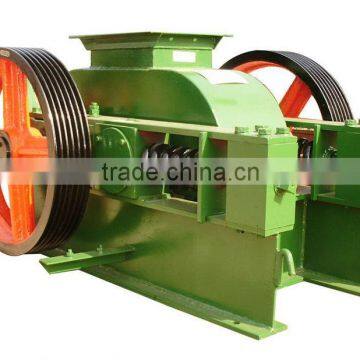

2016 High Pressure Roller Crusher
-
2016 High Reliability New Type Cone Crusher for Sale, Stone Crushing Equipment and Machineries New Technoloy New Plant
-
2016 High Reliability New Type Cone Crusher for Sale, Stone Crushing Equipment and Machineries New Technology New Plant
-
2016 Energy Saving Cone Crusher for Sale, Stone Crushing Equipment and Machineries Zimbabwe Market New Technology New Plant
-
2016 High Quality Cone Crusher for Sale, Stone Crushing Equipment and Machineries Laos Market New Technology Energy Saving
-
2016 High Efficiency Cone Crusher for Sale, Stone Crushing Equipment and Machineries Myanmar Market New Plant New Technolgy
Product Details
Place of Origin | Shandong, China | Brand Name | Jinpeng | |
Model Number | Cone Crusher,Crusher | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0086-535-3410108 15288799786
High Efficiency ore crushing machine cone crusher for mine processing
Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry.
Our cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc.
1. When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.
2. Joint between supporting sleeve and frame is compressed by spring. When metal block and other materials that can no be crushed fall into the crusher, spring will be out of sharp and discharge the objects.
3. When the materials that can not be crushed pass through the crushing chamber or the machine overloads, the spring safety system makes the cone discharging hole become larger. When objects are discharged from crushing chamber, discharging hole will automatically reset. Cone crusher resumes normal operations.
4. The surface of crushing chamber is covered with wear-resisting high manganese steel lining plate. Size of discharging hole can be adjusted hydraulically or manually.
1. Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
Type | Diameter of cone | Max. feeding size | Width of discharging hole | Crushing capacity | Motor power (kw) | Swing frequency of main shaft | Weight (t) | Dimension (L× W× H) | |
PYB | 600 | 600 | 65 | 12-25 | 40 | 30 | 356 | 5 | 2234×1370×1675 |
PYD | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | ||||
PYB | 900 | 900 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
PYZ | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | ||||
PYD | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | ||||
PYB | 1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
PYZ | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | ||||
PYD | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | ||||
PYB | 1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910×2894×3809 |
PYZ | 185 | 10-30 | 115-320 | 50.3 | 3910×2894×3809 | ||||
PYD | 85 | 5-13 | 75-230 | 50.2 | 3910×2894×3809 | ||||
PYB | 2200 | 2200 | 300 | 30-60 | 59-1000 | 280-260 | 220 | 80 | 4622×3302×4470 |
PYZ | 230 | 10-30 | 200-580 | 80 | 4622×3302×4470 | ||||
PYD | 100 | 5-15 | 120-340 | 81.4 | 4622×3302×4 |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
