Aquaspin DYP 330 bauer center pivot irrigation system

Aquaspin pivot irrigation system

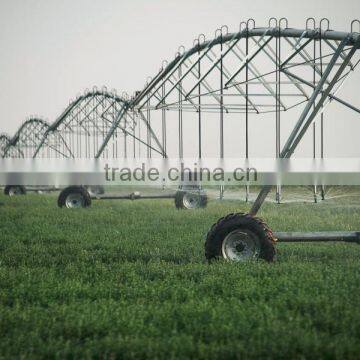

“Aquaspin” center pivot irrigation system is suitable for large-area irrigation, being economic, efficient, sturdy, durable and easy to handle. The long and multi-spans spin around the fixed center to irrigate the land circularly. The irrigation diameter can reach 1000 meters long.

Working diagram:

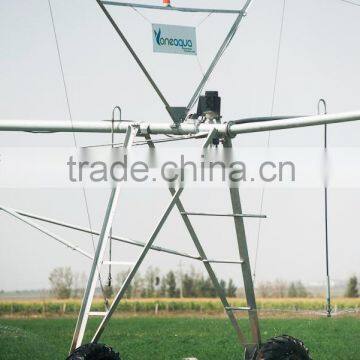

1.Pivot tower

Sturdy structure on four legs with broad support; pivot tower angle 108*108; C-profile for increased structural strength;  broad support plates with large support surface area; entire pivot tower is hot dip galvanized; double lip seal for  no leakage.

2.Drive towers-wheel base

Drive tower bracing angle 100*75 for high torsion resistance; large-dimension wheel base drive tower heights for optimum adjustment to different crops; wheel base brackets with bracing; highly stable stand thanks to extremely wide wheel base;  permissible slope: up to 15%.

3. Gear motor

High-torque motor with thermal overload protection; enclosed moisture-proof motor; high-efficiency spur gear; shaft seal with specific dirt-  repellent profile; type: 40:1(0.55kw;0.75kw;0.9kw;1.1kw)

4. Spans-trussing

2 tube diameters for wide application range (50 to 300m3/h),optimum adjustment for lower operating cost; uniform tube length of 5.85m for easy assembly and transportation

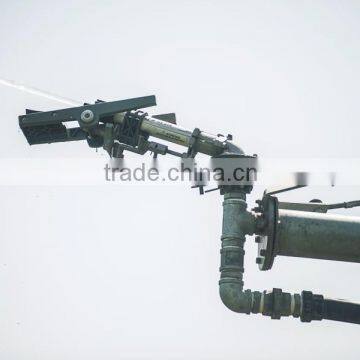

5. Sprinklers

Elaborate combination of different sprinklers makes the water better distributed, advancing the efficiency of irrigation. Both the low- pressure deflector type spray nozzle and Rotator are with high wind resistance and meet the requirements even in  windy conditions.
