Double impeller leaching agitation tank, chemical reagent leaching tank

Yantai jinpeng Mining Machinery CO., LTD

The excellent one stop service supplier at home and abroad

Professional mineral processing design, equipment production,installation and conmissioning institue.

Tel: 0086-535-3975290 & 0086-13589859081  Skype: lee.vicky198

Working principle

1.The machine features a reasonable and compact structure, and high transmission efficienty;

2.Twin impeller is used ,which has bigger diameter,lower turning speed,lower agitation power consumption,and lower wear of the carbon;

3.Air is sent to the bottom via pipes , so that it is evenly spared with less bubles; It gives moderates agitation strength, to keep the slurry density and fitness to be basically uniform is the tank, so as to improve leaching ability of the cyandidation and the adsorption intensity.

4.The aeration system and the trasmission system are innovated for the new model of the twin impeller high-effciency leaching agitation tank.

Technical parameters of double impeller efficient stirring carbon leaching tank:

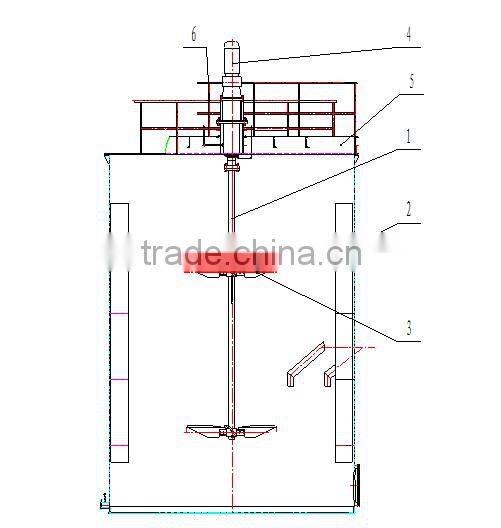

the outline drawing:

Table Ⅰagitator shape installation drawing

1. Vertical axis        2. Agitator        3. Impeller

4. Drive of motor      5. Beam          6. Railing

work  onsite:

 Used in gold process flowsheet
