Specifications
1. Environmental Protection2. With low noise oil pump, off gas system
3. PLC intelligent detection
4. Automatic control
Used Engine Oil Purifier /Recycling Machine/Equipment Supplier
1. Technological Instruction:
Adopting ways of transportation by tins or buckets, the waste mineral oil are unloaded into
filtering ponds directly. After the process of sedimentation and filter, pumped the waste oil into
oil-water separator, then discharge the waste water and pump the isolated oil to tank separately.
Through secondary filter, heat the oil up to certain temperature, feed it continuously flow to vacuum
film evaporator, further desorbs the water in the waste mineral oil to isolate the clean oil and heavy oil
Then start the secondary filtration in molecular distillers to distillate the lubricating oil with Siemens
PLC and color touch screen to control the whole process.
After cooling in condensator and stand still in buffer tank, pump the end product into tank.
2. Technological Parameter:
A.This oil purifier used a physiochemical reaction to eliminate the electric charge between polar
particulate in waste oil, which is gathered into coarse particles and removed, it is also can separate
colloid, bitumen and other compound.
B.Under high vacuum and high temperature situation the harmful gas and the water content can be
removed by the deodorization and dehydration system, aiming to purify waste oil and retain the
active ingredient from oil.
C. High precision stainless steel net is used, which is anti-corrosive, high temperature resistant and
has a good mechanical strength and long lifetime. The pressure filter that easy to operate and
economical, is used as filter medium.
D. It has a novel structure and reasonable layout, it is deemed as a "mini refinery".
E. The processing effect is obvious and the decolorization effect is straightforward, besides, it can
also serve for multiple purposes.
3. End product after regeneration:
a. Clean and bright, moisture content less than 100PPM, separation degree of the heavy and clean oil is more than 90%
b. The quality of the heavy and clean oil achieves or exceeds the new oil.
c. Recycle rate achieve more than 80%
4. Equipment Configuration:
a. Not fussy about the waste oil, it can recycle the waste oil no matter what condition it is.
Payment & Shipping Terms |
Supply Capacity |
||
Payment term : |
T/T or L/C |
Production capacity : |
500pcs/year |
MOQ: |
1 pc |
Packing : |
standard export package |
Price |
negotiable |
Delivery way |
By sea |
Means of transport : |
FOB , CIF , |
Delivery time : |
30-45 days |
Techincal Indications:
Moisture content |
10PPM |
Mechanical impurities |
‹ 0.022% |
Pollution Degree |
‹ NAS9 |
Be compare with new oil, viscosity change rate |
‹+5% |
Filter accuracy |
3 micron |
Efficiency |
95% |
Installed power |
17KW |
Regenerated oil quantity |
800-1000KG/8H. |
Simlar Projects:
Detailed information:

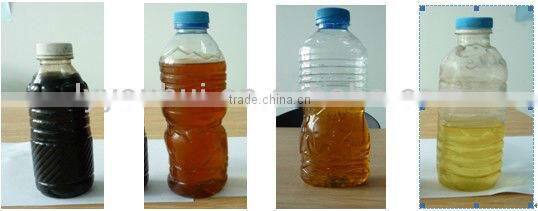

Comparison of the oil before and after the regenetation:
