Help CenterSwing Gate Opener, TM-G12B
Related Products
TOMA Swing gate opener
Full Set ( two motors, one control box, 2 remote controls, mounting accessories)

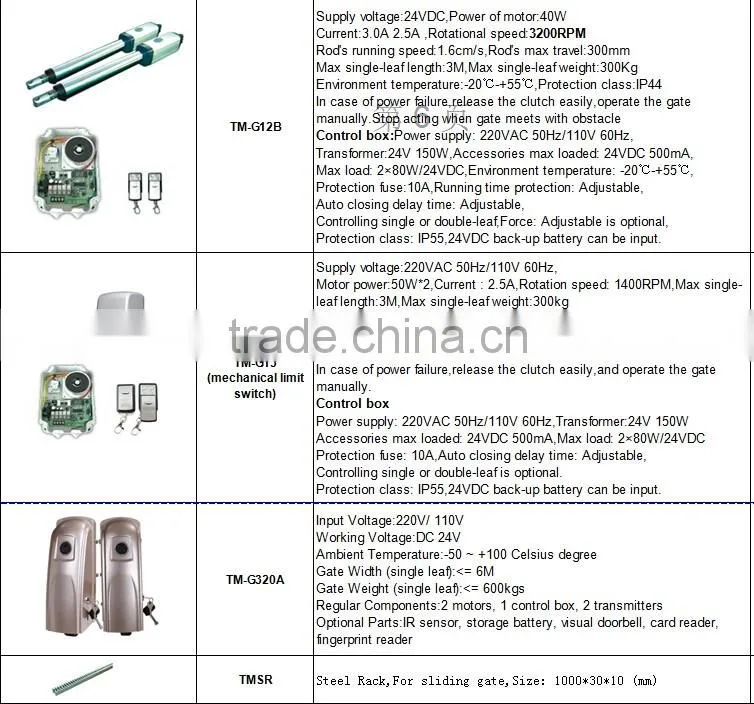

Technic data:
Supply voltage:24VDC
Power of motor:40W*2
Current:3.0A 2.5A
Rotational speed:3200RPM
Rod's running speed:1.6cm/s
Rod's max travel:330 or 385mm
Max single-leaf length: 3m
Max single-leaf weight:300Kg
Environment temperature:-20°C-+55°C
Protection class:IP54
In case of power failure,release the clutch easily,operate the gate manually.
Stop acting when gate meets with obstacle
Control box:Power supply: 220VAC 50Hz/110V 60Hz,
Transformer:24V 150W
Accessories max loaded: 24VDC 500mA,
Max load: 2×80W/24VDC
Environment temperature: -20°C-+55°C
Protection fuse:10A
Running time protection: Adjustable
Auto closing delay time: Adjustable
Controlling single or double-leaf
Force: Adjustable is optional
Protection class: IP55
24VDC back-up battery can be input.
