HOT Agricultural Bearing PDNF-140-1

Agricultural Bearing

Overview:

We offer a complete range of agricultural standard and special design bearings and assemblies.

All popular designs are represented in our full line offering: Disc Harrow, Flanged Disc, and Agricultural Specials including round, square bore, hex bore, and hex bore conveyor bearings.

Our bearings and seals are specifically designed for the demanding conditions encountered in agricultural applications. Our Agricultural bearings are available with single, double and triple lip shroud seals. They are also available with or without relubrication feature.

Bearing Number:

Applications:

Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.
Lawn & Garden - Lawn Mowers wheels and spindles.
Conveyors - Grain, Aggregate

Product capability:
Bore Size: 10mm and larger
Outer Diameter: up to 160mm
Closures: Single lip, double lip, triple lip and exclusive Maintenance Free designs.
Ring Material: 52100 chrome steel
Seal Material: Elevated temp formula NBR
Retainer: Riveted steel, glass filled and non-glass filled polymer.
Precision Class: ABEC1
Radial Internal Clearance: C3, C4
Heat stabilization: S1

Product Features and Benefits:

1. High grade through hardened bearing steel for improved fatigue resistance and load carrying capacity.
2. High grade balls have improved roundness and finish to extend bearing fatigue life.
3. Raceway formation and finishes to provide long life and load carrying capacity.
4. Seal designs for all operating conditions, loads and speeds.
5. Premium grease types and fill amounts for optimal bearing life

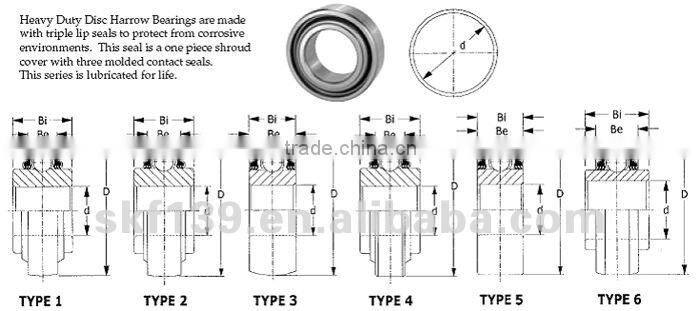

Photos:

...
