Multi function automatic exercise book binding machine
Features:
Uses double wire on spools, both pitch 3: 1 and 2: 1;
Great flexibility, 9 different double wire diameters can be used from 1/4" up to 7/8" with proper tools-size-set (simply change the binding tools);
Microprocessor controlled with touch screen;
The machine operates electrically and must be connected to a compressed air supply;
Advantages:
1. Effective speed: 1200-1500 units per hour, 8+ times faster than manual binding;
2. Automatic cutting, automatic binding and closing, automatic collect the finished notebooks;
3. With the calendar hanger insertion;
4. Touch screen and multi-language available (English / Spanish ect.,);
5. Panasonic PLC control system;
6. Skip-binding, up to 6 segments, greatly improve the efficiency and save double wires;
Skip Binding

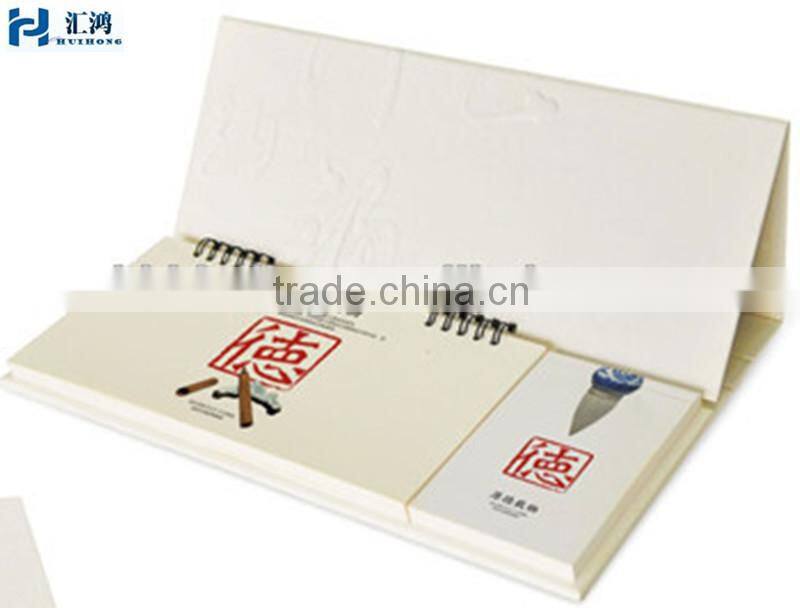

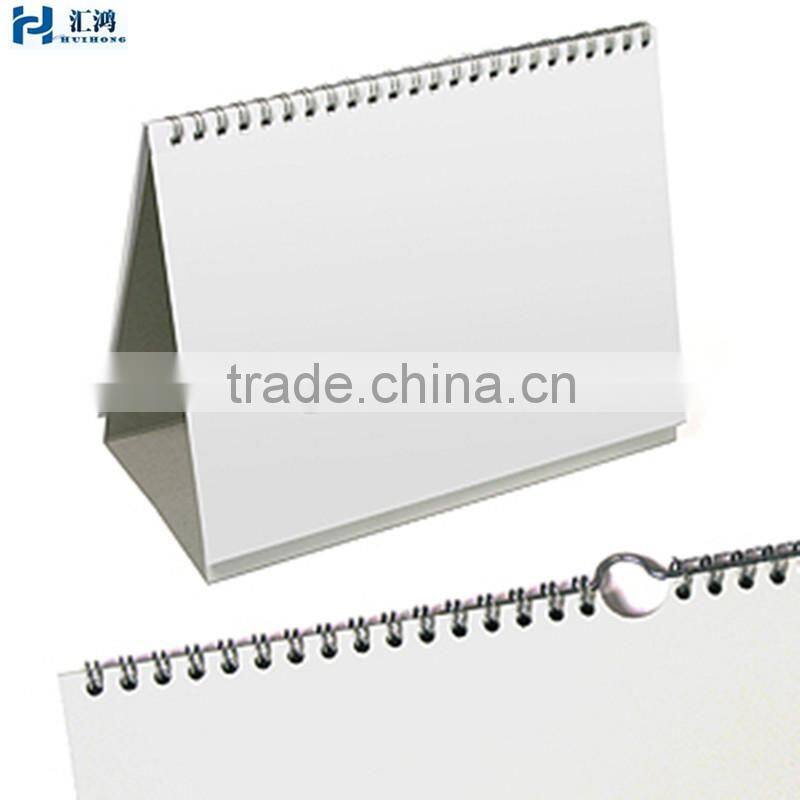

Binding Calander
CE CERTIFICATE
Technical Data:
Feeding Mode | Manual |
Wire Specifications | Automatic cutting, insertion & closing |
Max. Paper Width | 520 mm |
Max.Binding Width | 520 mm |
Min. Paper Width | 75 mm |
Working Speed/hour | 1200-1500 units |
Size of worktable | 660*300 mm |
Power | 220V/1ph/50-60Hz/0.2kw |
Air Compressor(not included)/KW | 1.5 kw |
Air Pressure (bar) | 6-8 |
Machine Dimensions | 1000*760*1230 mm |
Net weight(kgs) | 400 kgs |
Diamensions of pay-off unit | 490*760*1230 mm |
Net weight if pay-off unit | 65 kgs |
Dimension | 800*760*1230 mm |
