automatic double coil binding machine
- 50 Set / Sets per Month
- Shenzhen port China.
- T/T Credit Card
- Infrared and circulating air dryer Printing Ink Tunnel Oven Machine
- big size Automatic screen printing machine for sheet with automatic blanking
- Printing Ink Tunnel Oven Machine
- Ozone-free energy saving and environmental protection LED uv curing machines
- Round/Plane Surface UV Drying Machine
- Bottle UV Drying Machine
Product Details
Condition: | New | Type: | Other, wire-o closing machine | Automatic Grade: | Semi-Automatic |
Place of Origin: | Guangdong, China | Brand Name: | HuiHong | Model Number: | DWC-520 |
Voltage: | 220 V/ 1ph / 50-60 Hz | Power(W): | 0.2 KW | Dimension(L*W*H): | 1800*760*1230mm |
Weight: | 460 KGS | Certification: | CE certificate | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

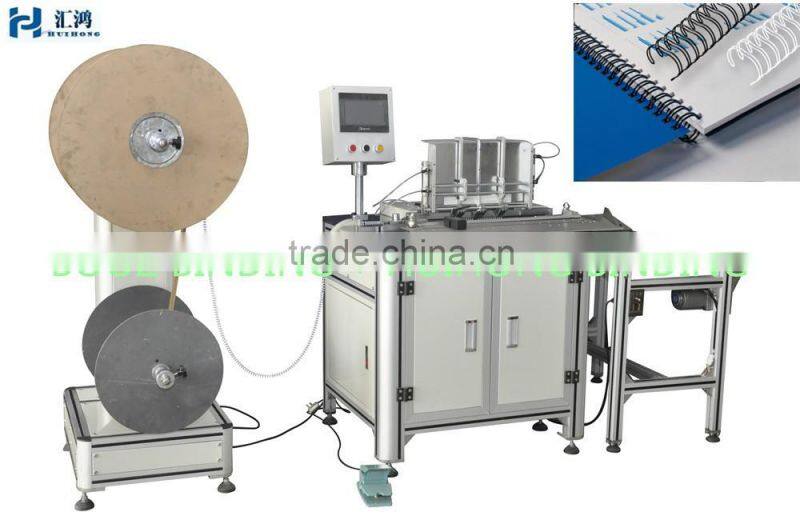

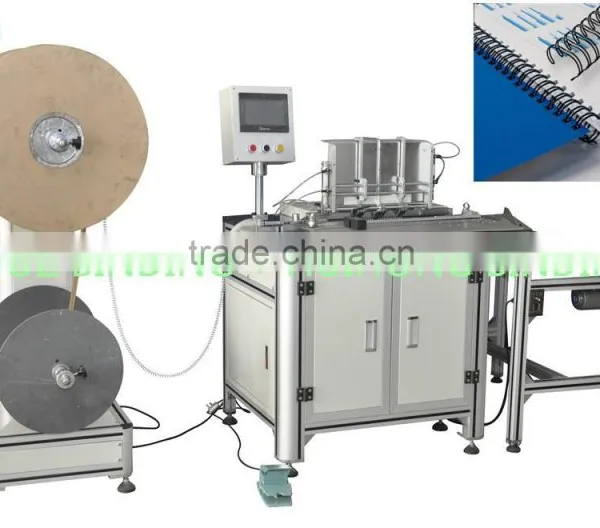

automatic double coil binding machine
The DWC-520 is the best seller, most famous and simplest binding machine,

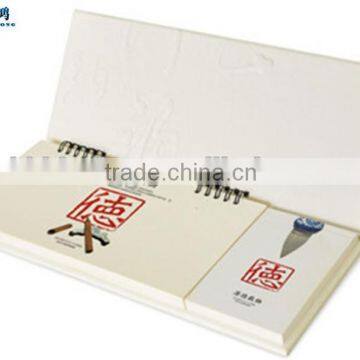

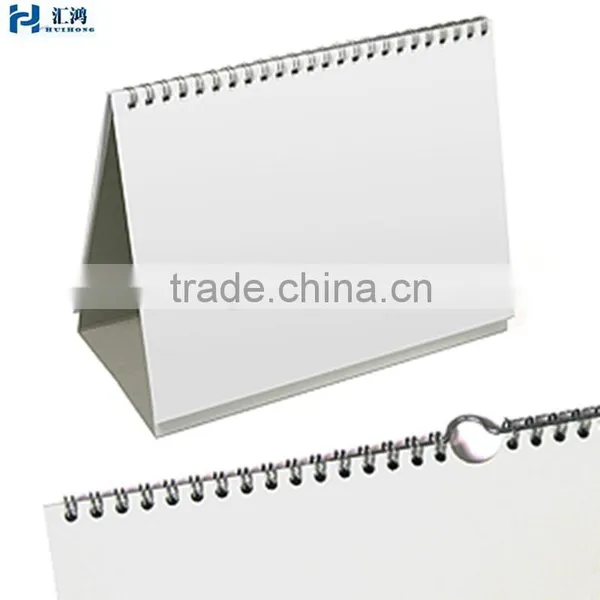

Perfect binding for desk/wall calendars, catalogues, notebooks, diaries ect.,
Easy to use, easy to maintain, and extremely sturdy, automatic carry the finished products to the conveyor, greatly improve the working speed and efficiency, 8+ TIMES THAN MANUAL BINDING
It is the ideal binding machine and your best binding assistant.
Features:

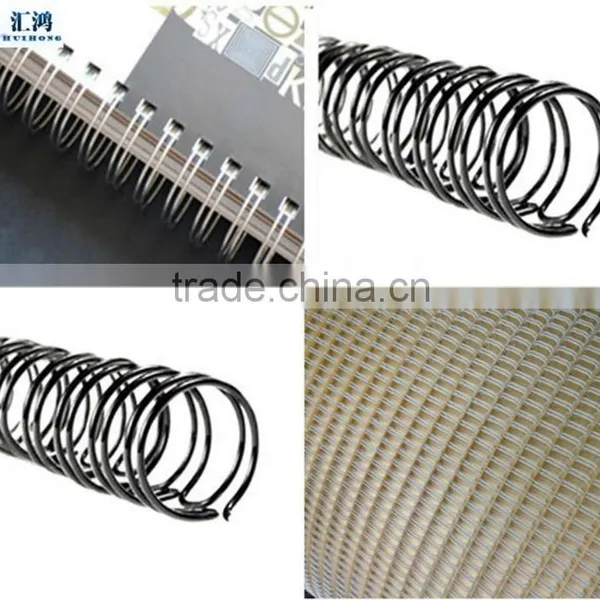

- Uses double wire on spools, both pitch 3:1 and 2:1;
- Great flexibility, 9 different double wire diameters can be used from 1/4" up to 7/8"
- With proper tools-size-set (simply change the binding tools);
- Microprocessor controlled with touch screen;
- The machine operates electrically and must be connected to a compressed air supply;
Advantages:
- Effective speed: 1200-1500 units per hour, 8 + times faster than manual binding;
- Automatic cutting, automatic binding and closing, automatic collect the finished notebooks;
- With the calendar hanger insertion;
- Touch screen and multi-language available (English);
- Panasonic PLC control system;
- Skip-binding, up to 6 segments, greatly improve the efficiency and save double wires;
Technical Data:
Feeding Mode | Manual |
Wire Specifications | Automatic cutting, insertion & closing |
Max. Paper Width | 520mm |
Max.Binding Width | 520mm |
Min. Paper Width | 75mm |
Working Speed/hour | 1200-1500 units |
Size of worktable | 660mmx300mm |
Power | 220V/1ph/50-60Hz/0.2kw |
Air Compressor(not included)/KW | 1.5kw |
Air Pressure (bar) | 6-8 |
Machine Dimensions | 1000x760x1230 mm |
Net weight(kgs) | 400kgs |
Diamensions of pay-off unit | 490x760x1230 mm |
Net weight if pay-off unit | 65kgs |
Dimension | 800x760x1230 mm |
Working video:/v_show/id_XNTkzMTc0MzMy.html
Picture:
