Stainless Steel Tube 8mm

Stainless Steel Tube 8mm thumbnail-1
Stainless Steel Tube 8mm photo-1
US$ 6.5 - 11 MOQ: 100 Units
Key Specifications
Get Latest Price
Type:
Other, Carburetor, pressure pipe
Size:
6m*6mm*1mm
Car Make:
all natural gas vehicles
Contact Supplier Request Quote Chat Now
Chengdu Shuangliu Jiali Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Carburetor, pressure pipe
Size 6m*6mm*1mm
Car Make all natural gas vehicles
OE NO. jl-p-001
Place of Origin Sichuan, China
Brand Name jiali
Model Number jl-p-001
Warranty 24 Months

Specifications

stainless steel tube 8mm
1.Made of stainless steel(304
2.Test pressure:30Mpa
3.Test before delivery
4.

  stainless steel tube 8mm

 CHG tube: resist high press from outside,no leak on tube, tested by 500kg water press;smooth and tough,advanced technology

1. Main usage about stainless steel tube 8mm   : widely used in CNG fuel-auto and double fuel-auto, auto-braking system; auto-oil system, fuel system,etc

The high pressure tube is the pipeline of connecting reducer and gas cylinder.Used to connect the steel cylinder, filling port, high pressure solenoid valve, and pressure reducer, there is a rubber pipe on the surface to ensure it safety and durability.


2.   Raw materials: low carbon steel tube, seamless steel pipe,

3.   Specification about stainless steel tube 8mm :

φ6.00mm × 1±0.1mm

         Chemical Composition

C

Si

Mn

P

S

≤0.08%

≤0.03%

≤0.03%

≤0.02%

≤0.02%

Size(mm)

Length

Thickness

OD

Total Thickness

Roll ID

Cut-to-length

±50

1±0.1

6±0.06~0.1

0.65±0.2

195-200

Mechanical Property

No.

Test Item

Technical Standard

Test Result

Remark

1

Tensile Strength

≥290MPa

295MPa

PASS

2

Yield Strength

≥180MPa

189MPa

PASS

3

Elongation

≥30%

34%

PASS

4

Flaring Test

Flaring≥25%,

30%

PASS

5

Bending Test

Bend 180o in a radius three times of the pipe diameter

No crack or peeling after flaring

PASS

6

Flattening Test

No crack after flattening

No crack

PASS

7

Pressure Test

Working Pressure≥26MPa

32MPa

PASS

Burst Pressure≥135MPa

140MPa

PASS

8

Salt Spray Test

>48 hours

72 hours

PASS

6.   Products functions about stainless steel tube 8mm : our materials single/double wall steel tube conform to Country YB/T4164-2007 standards

7.   Mechanical functions about stainless steel tube 8mm :

     Good curvature machining property;Highest blasting press;

     Thickness is uniform with PVC;Good binding force

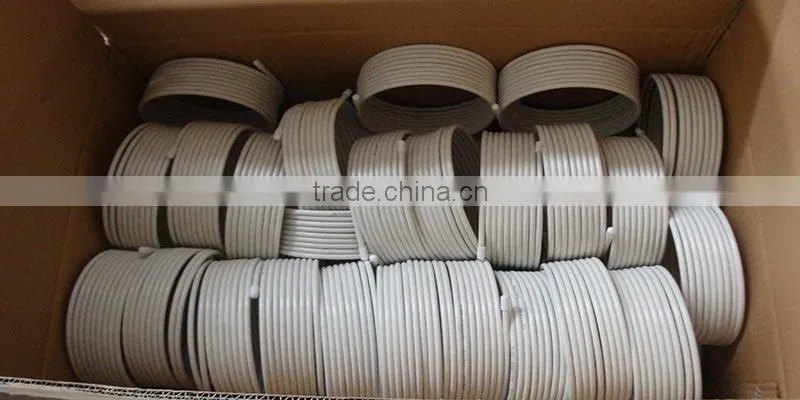

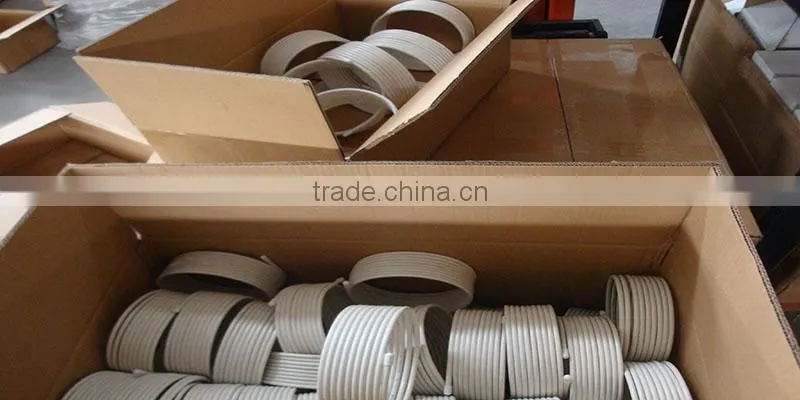

9. Packing: export standed, box, palstic,etc (according to customers requirements)

10. Photos from our company

stainless steel tube 8mm

stainless steel tube 8mm
