double wire binding machine, double loop wire binding machine
19 YEARS, TOP QUALITY MANUFACTURER OF DOUBLE WIRE BOOK BINDING MACHINE,
TWIN WIRE BINDING MACHINE AND DOUBLE LOOP WIRE,
YOUR RELIABLE AND TRUSTABLE BUSINESS PARTNER!

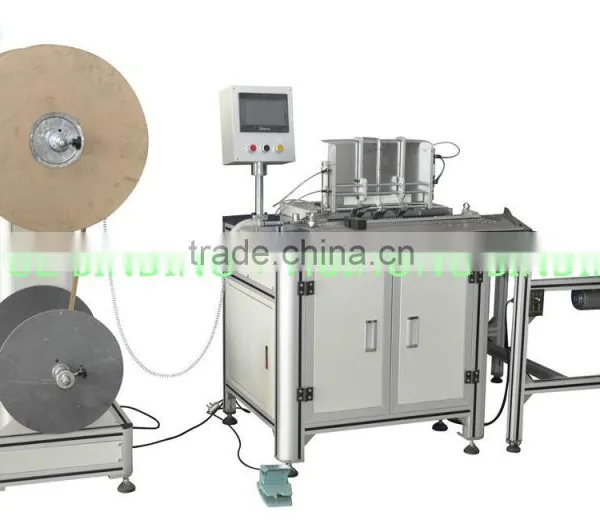

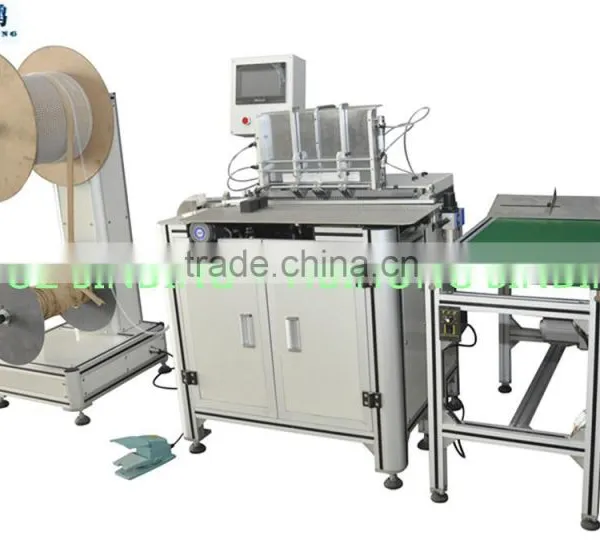

DOUBLE WIRE BINDING MACHINE Features:
Uses double wire on spools, both pitch 3: 1 and 2: 1;
Great flexibility, 9 different double wire diameters can be used from 1/4" up to 7/8" with proper tools-size-set (simply change the binding tools);
Microprocessor controlled with touch screen;
The double wire binding machine operates electrically and must be connected to a compressed air supply;
Advantages of DOUBLE WIRE BOOK BINDING MACHINE :
1. Effective speed: 1200-1500 units per hour, 8+ times faster than manual binding;
2. Automatic cutting, automatic binding and closing, automatic collect the finished notebooks;
3. With the calendar hanger insertion;
4. Touch screen and multi-language available (English / Spanish ect.,);
5. Panasonic PLC control system;
6. Skip-binding, up to 6 segments, greatly improve the efficiency and save double wires;
SKIP-BINDING OF DOUBLE WIRE BOOK BINDING MACHINE

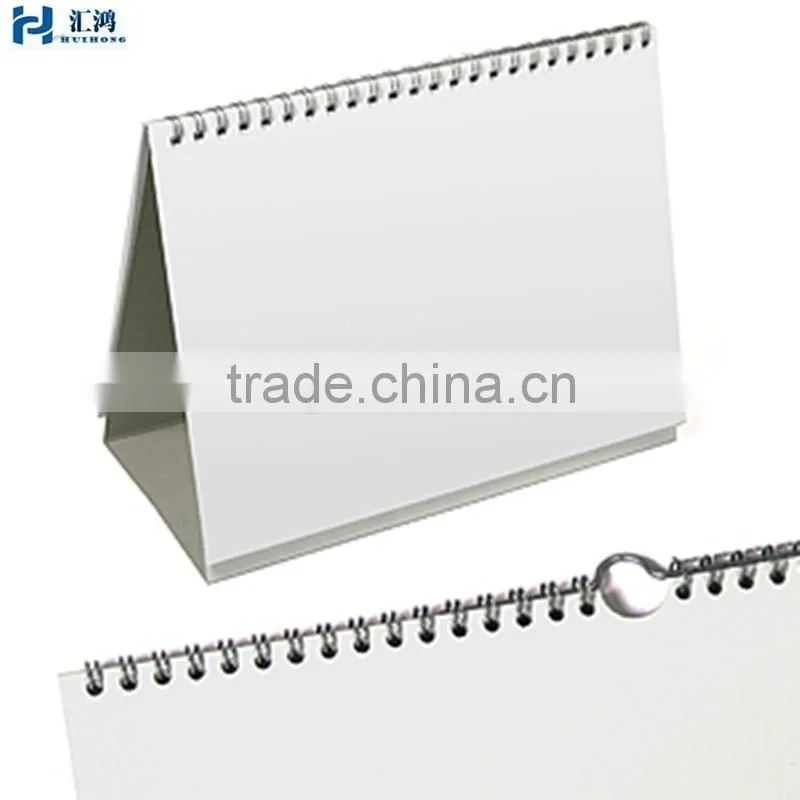

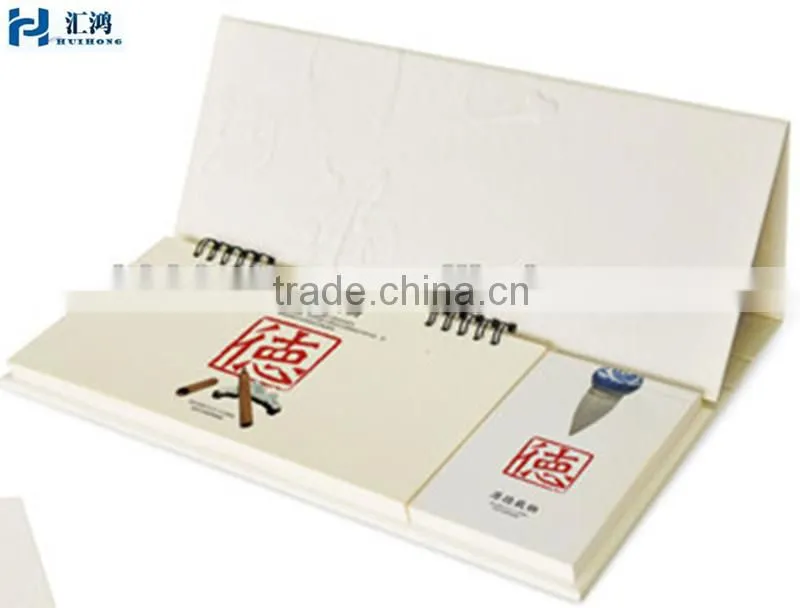

BINDING CALENDAR OF DOUBLE WIRE BOOK BINDING MACHINE
Technical Data of DOUBLE WIRE BOOK BINDING MACHINE:
Feeding Mode |
Manual |
Wire Specifications |
Automatic cutting, insertion & closing |
Max. Paper Width |
520 mm |
Max.Binding Width |
520 mm |
Min. Paper Width |
75 mm |
Working Speed/hour |
1200-1500 units |
Size of worktable |
660*300 mm |
Power |
220V/1ph/50-60Hz/0.2kw |
Air Compressor(not included)/KW |
1.5 kw |
Air Pressure (bar) |
6-8 |
Machine Dimensions |
1000*760*1230 mm |
Net weight(kgs) |
400 kgs |
Diamensions of pay-off unit |
490*760*1230 mm |
Net weight if pay-off unit |
65 kgs |
Dimension |
800*760*1230 mm |

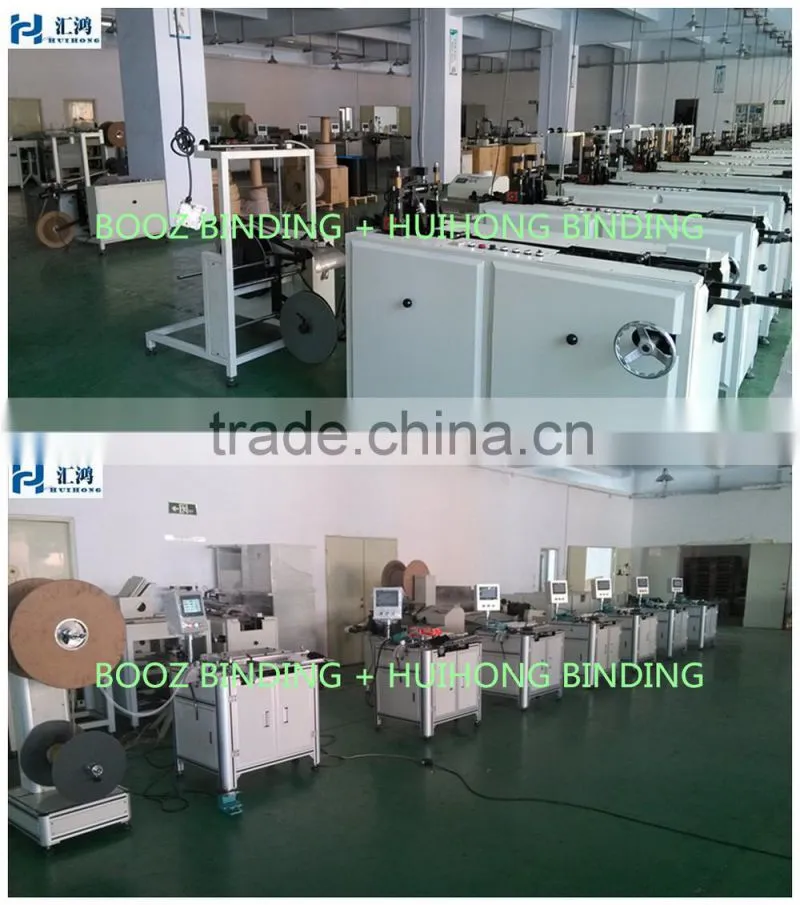

WORKSHOP CORNER
