Car Cng Systems

1.Commodity: car cng systems

2.Key Parts & Functions about car cng systems

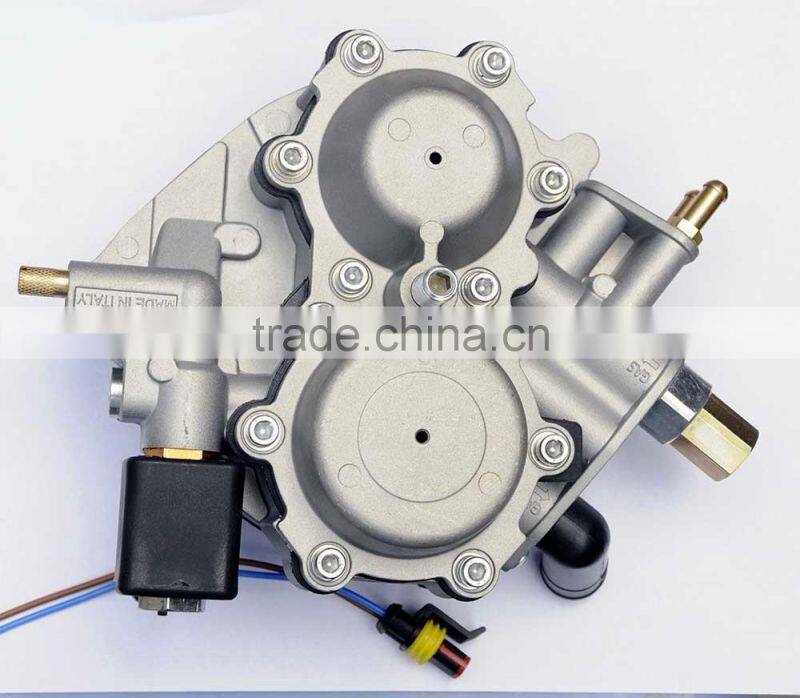

A. CNG Reducers(01)

 Decrease High pressure CNG from CNG tanks to the pressure which is available to your engines

B.CNG Emulators

During gas operation, these devices cut off the flow of petrol on cars equipped with electronic injection and emulate the signal of the injectors or other sensors.
The emulator model for each car varies depending on the type of injection system involved in the conversion.

C.Air/ fuel Venturi Mixers

Mechanical devices that, by using the Venturi principle, ensure correct air/fuel mixing in both stationary and dynamic conditions. Each mixer is designed for a specific vehicle and, together with the regulator , provides optimum gas and petrol operation;

 Measure your air intake hose near the throttle body where the mixer will be installed and select an appropriate sized mixer that will fit inside the air intake (sizes we have: 52/63/72mm/82mm, DO NOT provide other sizes); Will require 2 ones If engine with a dual air intake hoses (price will increase);

D.CNG Changer-over Switches

An electronic control module whose main functions are:
• Gas/petrol selector with 2 positions led gauge indicates the fuel being used;
• Petrol starting automatically passing over to gas on deceleration with overlapping;
• Display of the level of gas in the tank by means of 5 led;
• Electronic safety device that cuts off supply to the natural gas solenoid valves if the engine stalls

Usage and Advantage about  car cng systems

a. Available to all cars with EFI, less than 3.6L

b.CNG Traditonal aspirated system kits suit to 4/5/6 cylinders injection cars, EFI; Performance not as good as sequential injection kit but more easy to install. Generally used in those older cars, for cars newer than 1990's we recommend sequential injection system kits--better performance.

C.Advantages of CNG Carburetor conversion kits:

5.Warranty conditions:

The warranty period terminates minimum 1 year with a mileage limit. IF exceed the warranty period,

you need to pay for the cost if you want to apply for warranty service.

6.Photos from our workshops

7.Certificates:

                             E4 R110-000257                                                                          E4 R110-000259

                      E4 R110-000258                                                       E4 R110-000283

8.All CNG/LPG kits of Reducer/Regulator

9. CNG/LPG injectors

10.LPG/NG Generators
