Agricultural Machinery Bearing China Pillow Block Bearing UCP205 Insert Bearing Units With Housing
YNR Pillow Block Bearing Detail
| Item | Pillow Block bearings UCP205 UCP206 UCP206 UCP207 UCP208 |
| Brand | YNR or OEM |
| Ball Bearing seals | ZZ 2RS |
| Material | GCr15 steel,carbon steel,stainless steel etc. |
| Precision | P0,P2,P5,P6,P4 |
| Clearance | C0,C2,C3,C4,C5 |
| Size | Bore size 0-200 mm outer diameter 0-400mm |
| Bearings Feature | Long-life with high quality |
| Low-nosie with strict controlling the quality of bearing | |
| High-load by the advanced high-technical design | |
| Competitive price, which has the most valuable | |
| OEM service offered, to meet the customers'requirements | |
| Application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc Insert Bearing Units With Housing |
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Price terms | FOB,CFR,CIF,EXW |
| Delivery time | 1-3 days acccording the quantity |

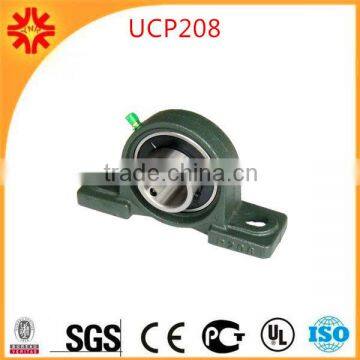

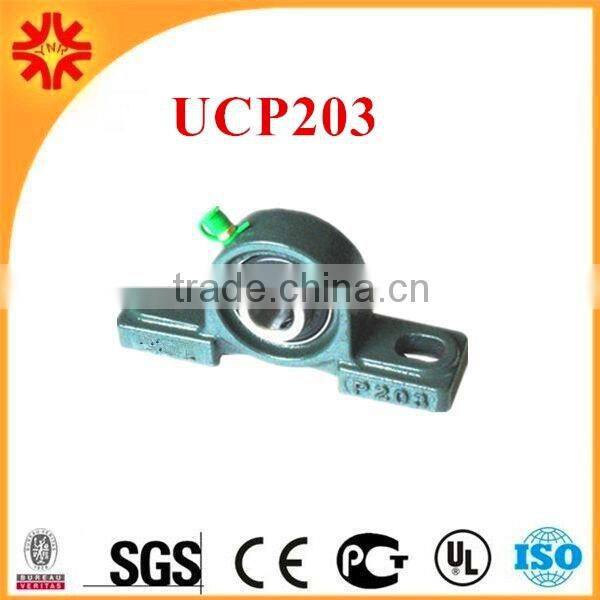

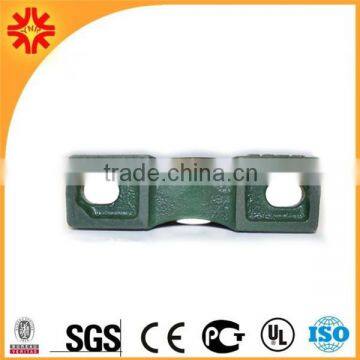

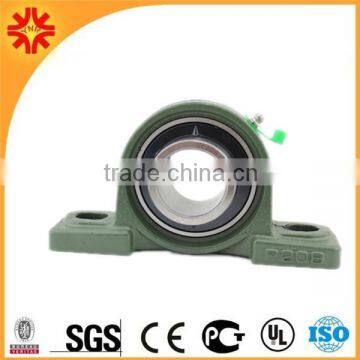

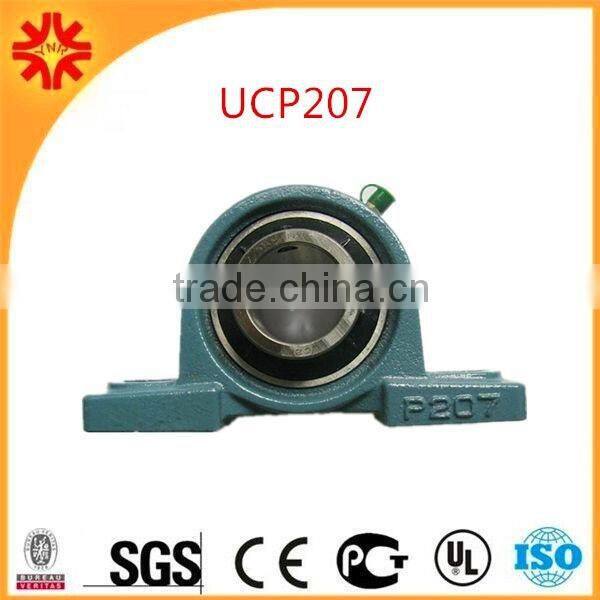

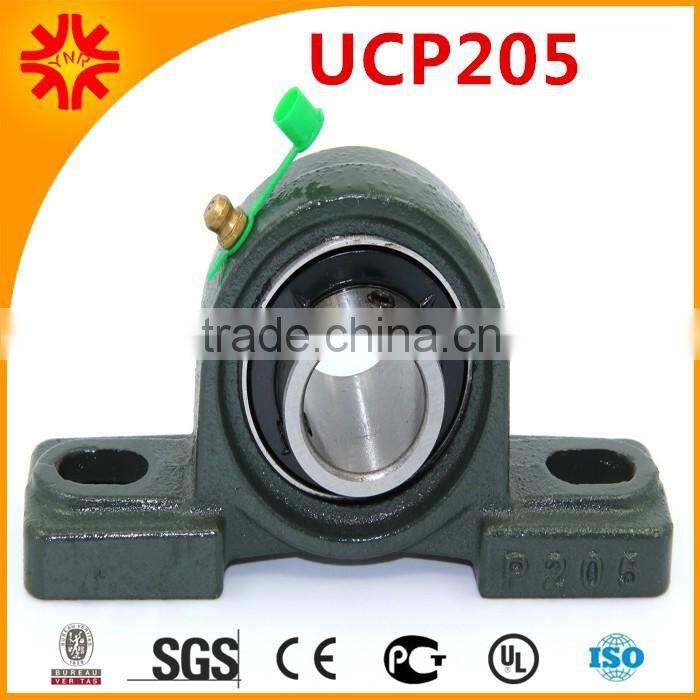

Insert Bearing Units With Housing Photo
1.Specifications :

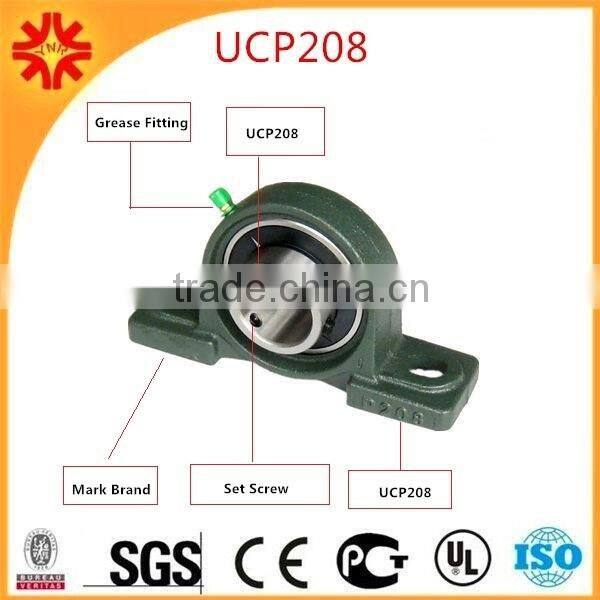

YNR Pillow Block Bearing UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
2.Application :
Economical housed bearing solution
Light and heavy industrial use Pillow Block Bearing
Agricultural and Automotive Pillow Block Bearing
Conveyor and Fan assemblies Pillow Block Bearing
Fabricated machine assembly Pillow Block Bearing
Great value quality parts dispatched the same day
3.Features :
1. With tight set screw insert class UC bearing Pillow Block Bearing ;
2. Insert UK type bearing with conical hole;
Pillow block bearing is deep groove ball bearing grease seal type bearing with different shapes and combination of high precision components products.Bearing assembly can pass a few bolts to install directly on the body of the mechanical device, with the heart function, can be the supplement of the grease, etc., is a kind of installation is very simple products.
Pillow block bearingUSES: outer spherical bearing is suitable for the required equipment and parts of simple situation, such as used for agricultural machinery, transportation systems or on construction machinery
4.Related Pillow Block Bearing Catalogue
Pillow Block Bearing UCP205 UCP206 UCP207 UCP218 UCP208
| Model NO. | Length(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| UCP201 Bearing | 127 | 38 | 60.7 | 0.76 |
| UCP202 Bearing | 127 | 38 | 60.7 | 0.74 |
| UCP203 Bearing | 127 | 38 | 60.7 | 0.72 |
| UCP204 Bearing | 127 | 38 | 64 | 0.7 |
| UCP205 Bearing | 140 | 38 | 69.5 | 0.76 |
| UCP206 Bearing | 160 | 44 | 82 | 1.25 |
| UCP207 Bearing | 167 | 48 | 92 | 1.55 |
| UCP208 Bearing | 180 | 52 | 98 | 1.9 |
| UCP209 Bearing | 189 | 54 | 106 | 2.2 |
| UCP210 Bearing | 204 | 57 | 112 | 2.75 |
| UCP211 Bearing | 217 | 60 | 125 | 3.3 |
| UCP212 Bearing | 238 | 66 | 137 | 4.7 |
| UCP213 Bearing | 262 | 70 | 149 | 5.6 |
| UCP214 Bearing | 266 | 72 | 155 | 6.6 |
| UCP215 Bearing | 274 | 74 | 162 | 7.3 |
| UCP216 Bearing | 292 | 78 | 174 | 9 |
| UCP217 Bearing | 310 | 83 | 186 | 10.8 |
| UCP218 Bearing | 326 | 88 | 198 | 13 |
| UCP220 Bearing | 380 | 95 | 225 | 16 |
| UCP305 Bearing | 175 | 45 | 85 | 1.4 |
| UCP306 Bearing | 180 | 50 | 95 | 1.8 |
| UCP307 Bearing | 210 | 56 | 106 | 2.8 |
| UCP308 Bearing | 220 | 60 | 116 | 3.08 |
| UCP309 Bearing | 245 | 67 | 129 | 4.1 |
| UCP310 Bearing | 275 | 75 | 143 | 6 |
| UCP311 Bearing | 310 | 80 | 154 | 7.4 |
| UCP312 Bearing | 330 | 85 | 165 | 9.4 |
| UCP313 Bearing | 340 | 90 | 176 | 10 |
| UCP314 Bearing | 360 | 90 | 187 | 12 |
| UCP315 Bearing | 380 | 100 | 198 | 14 |
| UCP316 Bearing | 400 | 110 | 210 | 18 |
| UCP317 Bearing | 420 | 110 | 220 | 20 |
| UCP318 Bearing | 430 | 110 | 220 | 24 |
| UCP319 Bearing | 470 | 120 | 250 | 26.5 |
| UCP320 Bearing | 490 | 120 | 275 | 34.3 |
| UCP321 Bearing | 490 | 120 | 280 | 36.6 |
| UCP322 Bearing | 520 | 140 | 300 | 42.5 |
| UCP324 Bearing | 570 | 140 | 320 | 53.5 |
| UCP326 Bearing | 600 | 140 | 355 | 72.1 |
| UCP328 Bearing | 620 | 140 | 390 | 89.100 |
YNR Advantage
SOLUTION
– At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition.
PRODUCTION
– Running in accordance with ISO 9001 quality system, the advanced production equipments, sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development.
QUALITY CONTROL (Q/C)
- In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.
PACKAGE
– Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
LOGISTIC
– Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
WARRANTY
– We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.
