PLCC-6 5050 3-Chip LEDs green smd led specification
1. Features |
|
l Package ( L/W/H ) : 5.4 × 5.0 × 1.6 mm l Color : Ultra Bright Green(3 dices) l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

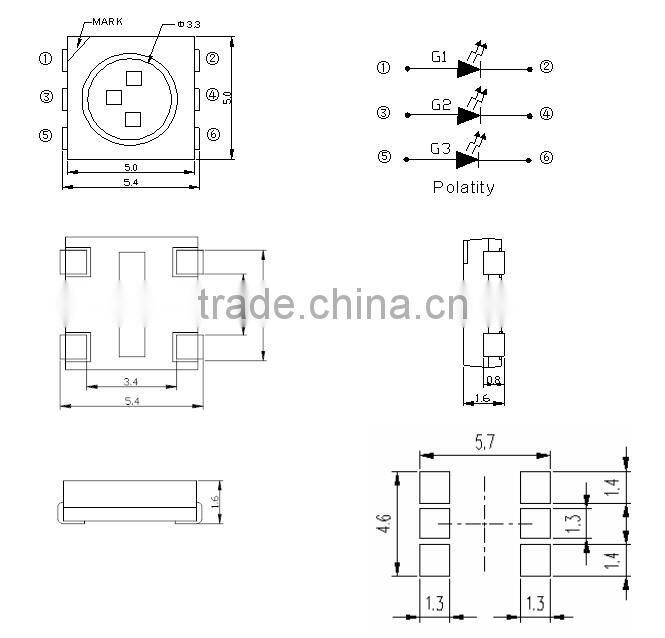

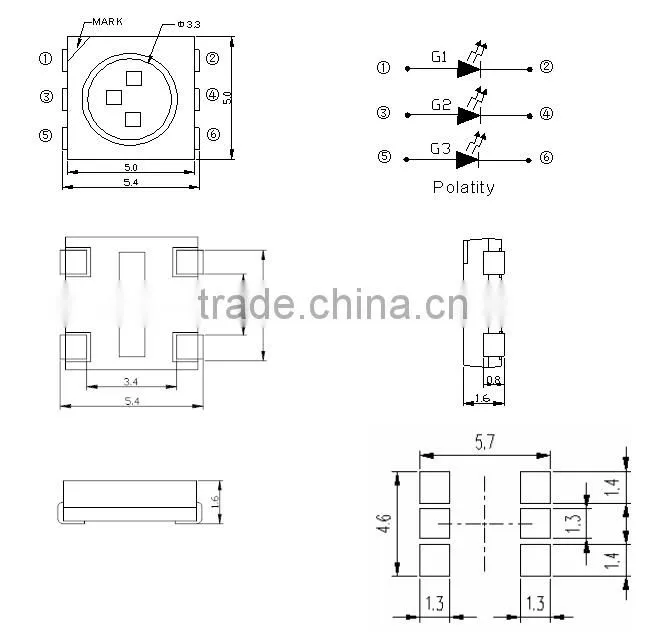

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter |
Symbol |
Rating |
Unit |
|
Power Dissipation |
Pd |
230 |
mW |
|
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP |
100 |
mA |
|
DC Forward Current |
IF |
75 |
mA |
|
Reverse Voltage |
VR |
5 |
V |
|
Operating Temperature Range |
Topr |
-30°C ~ + 85°C |
||
Storage Temperature Range |
Tstg |
-40°C ~ + 90°C |
||
Soldering Condition |
Tsol |
Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds |
||
ESD CLASS |
ESD |
2000 |
V |
|

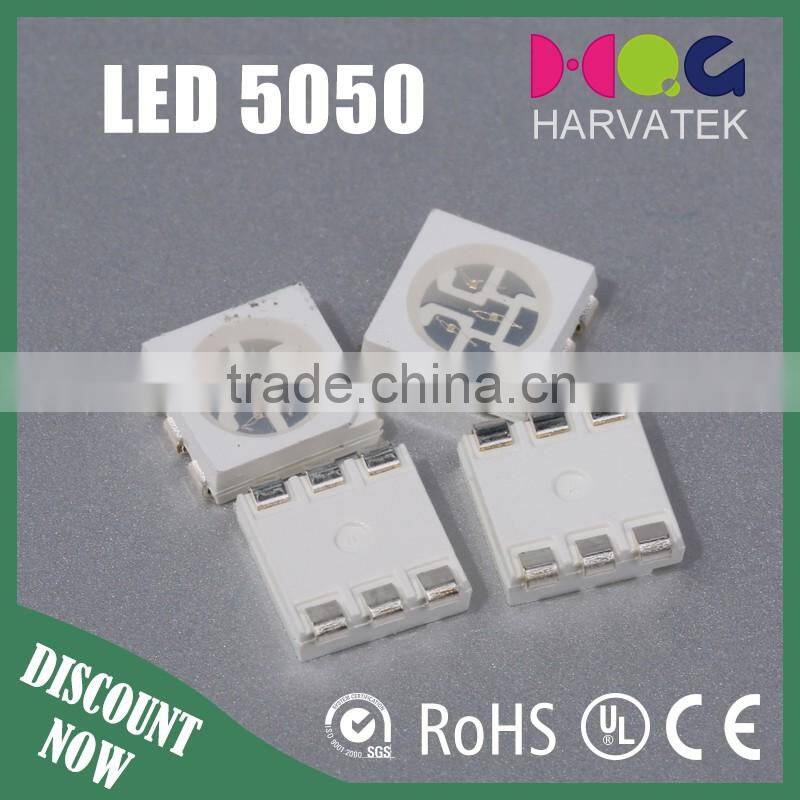

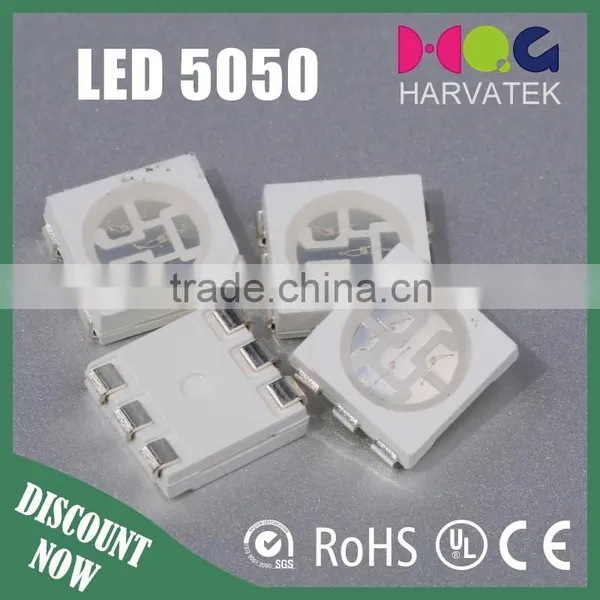

2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 5050 smd led specification and free samples, click the "send" below to contact us!
