Good quality 30mA sanan epistar chip led ultra bright 3528 5050 smd led
1. Features |
|
l Package ( L/W/H ) : 5 .0×5.4×1.6mm l Color : Ultra Bright White l Lens: Yellow Diffuse Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

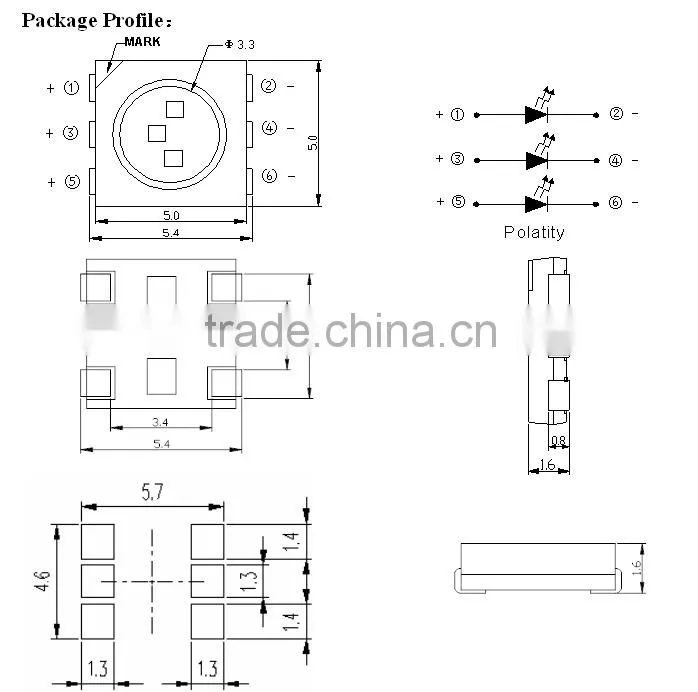

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter |
Symbol |
Rating |
Unit |
||
Power Dissipation |
Pd |
W1 |
90 |
mW |
|
|
|
W2 |
90 |
|
|
|
|
W3 |
90 |
|
|
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP |
W1 |
100 |
mA |
|
|
|
W2 |
100 |
|
|
|
|
W3 |
100 |
|
|
DC Forward Current |
IF |
30*3 |
mA |
||
Reverse Voltage |
VR |
5 |
V |
||
Operating Temperature Range |
Topr |
-30°C ~ + 85°C |
|||
Storage Temperature Range |
Tstg |
-40°C ~ + 90°C |
|||
Soldering Condition |
Tsol |
Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds |
|||
ESD CLASS |
ESD |
2000 |
V |
||

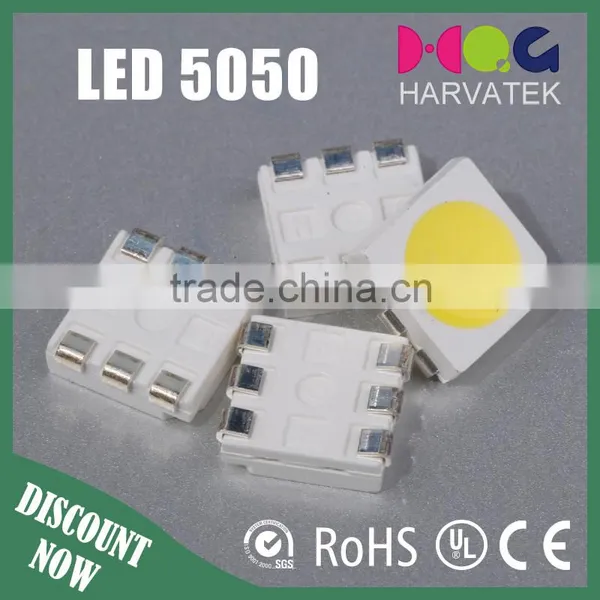

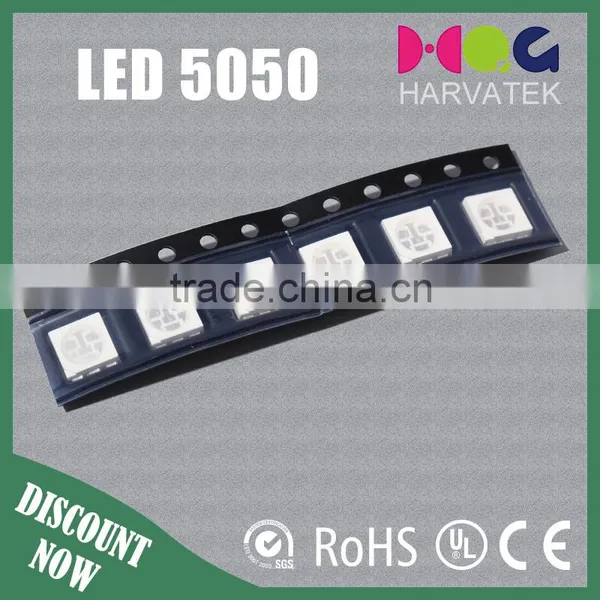

2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of and free samples of 5050 smd led, click the "send" below to contact us!
