High bright 1.1T surface mount sanan chip 0805 pink led smd
- 500000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Free samples 2.0x1.25x1.1mm sanan chip 25mA 0805 yellow green smd led
-
Ultra bright 2.0x1.25x1.1mm sanan chip mini type 0805 green smd led
-
High bright 1.1T sanan chip 25mA 0805 blue smd led speicification
-
Ultra bright 1.1T surface mount led 25mA 0805 purple led chip
-
Promotional price 1.1mm thick sanan chip 5000-6500K 0805 white smd led
-
New 2.0x1.25x1.1mm sanan led chip 25mA 0805 bi-color red white smd led
Product Details
| Model Number | HQ17-2102UFD, HQ17-2102UFD | Chip Material | InGaN | |
| Emitting Color | Other, Pink | Luminous Intensity | 16mcd | |
| Luminous Flux(lm) | 6-7lm / 5-6lm | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | X:0.42 Y:0.18 | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description

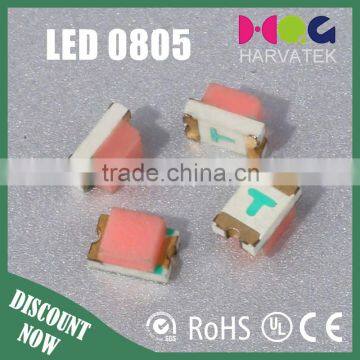

High bright 1.1T surface mount sanan chip 0805 pink led smd
1. Features |
l Package ( L/W/H ) : 2.0 × 1.25 × 1.1 mm l Color : Ultra Bright Pink l Lens: Pink Diffuse Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |
Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 75 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 70 | mA | |
DC Forward Current | IF | 25 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
Electrostatic Discharge | ESD | 2000 | V | |
2. Products View
