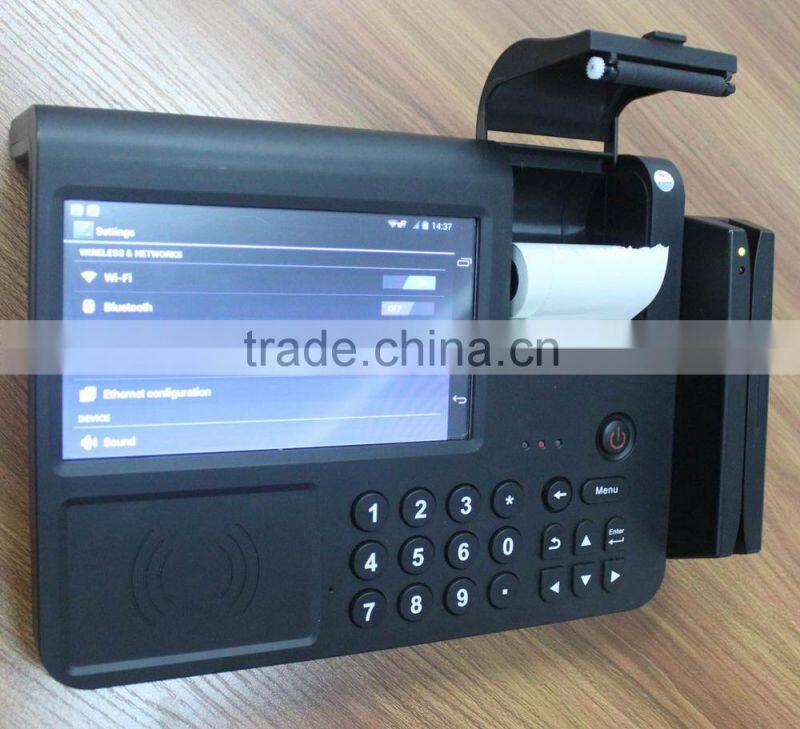

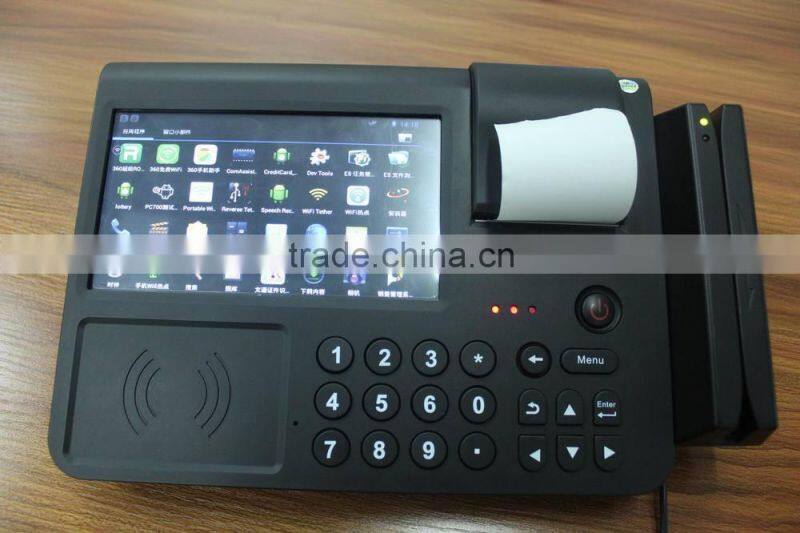

7 Inch Intelligent Tablet POS with PSAM Encryption, Bluetooth, RFID Card Reader, Printer
1. Introduction
DP7000 intelligent terminals combine handheld computers, POS and other structural model,Integrate a number of today's IT industry, the latest technical achievements(Such as:Embedded Computer System Design,Mobile Communications,RFID,Data security mechanisms etc.),With mobile terminal must have low power consumption, powerful, modular, with light structure, beautiful appearance, etc.Open systems platform,Embedded Android operating system,Can be embedded in a variety of functional modules,Such as:3G,Thermal Printer,RFID,Webcam,wifi,PSAM encryption etc,To ensure the protection of confidential information security,Can also connect a variety of devices such as bar code scanning etc.The machine POS can be widely used in supermarket, hotel, business hall, logistics tracking, mobile electronic payment, business data processing, enters sells saves the management and other fields.
Product |
Item |
Features |
Android POS Terminal |
DP7000 |

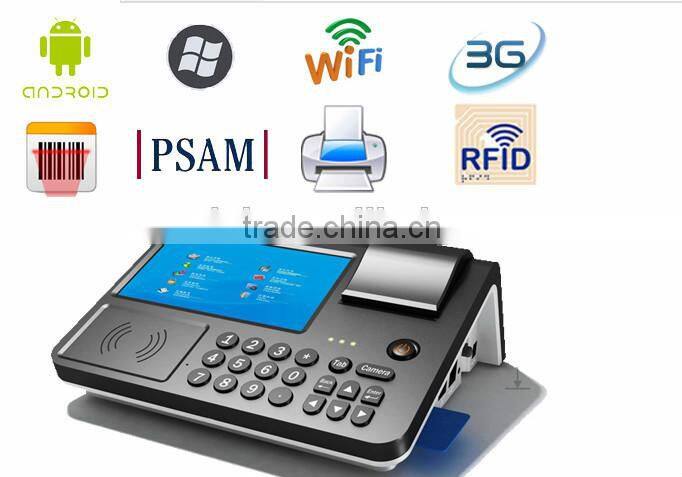

3G,WiFi,Bluetooth,GPS,NFC,Camera, barcode scanner, RFID,PSAM,RS232 Thermal printer, Magnetic stripe card(Optional) |

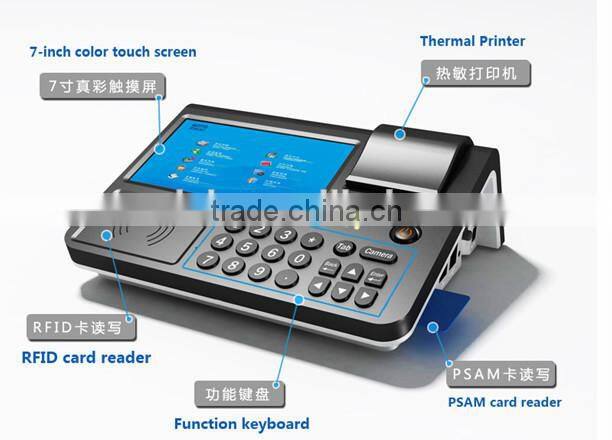

2.Product Description:
1.Support wifi.3G
2.Support RFID read and write ( ISO14443 ) protocol ( 13.56Mhz )
3.Support PSAM financial level IC card encryption card read-write

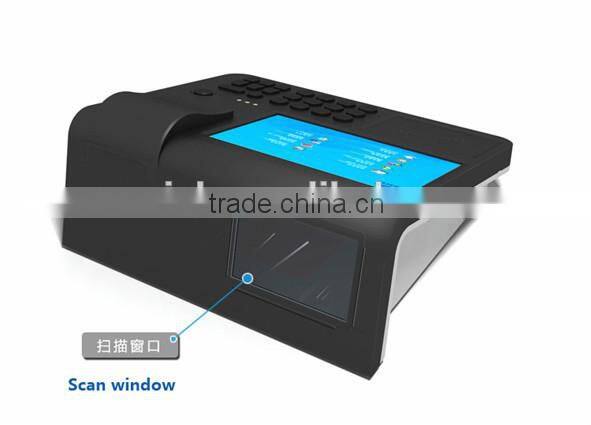

4.Support 2 million pixel camera,ID card photo identity and recognition function and 1D/2D barcode scan.
5.Support for external serial printer,Barcode Scanner,External other devices
6.Support SIM card data reading
7.Support secondary development(Provide SDK development kit)
DP7000(MTK)specification Parameters | |||||||
CPU |
Model |
MT6572(dual-core) |
ARMV7 Processor VFPv4 |
||||
Frequency |
1.2 GHz |
||||||
Memory |
RAM |
1 GB |
|||||
NAND Flash |
4GB |
||||||
Capacity Expansion |
32GB |
||||||

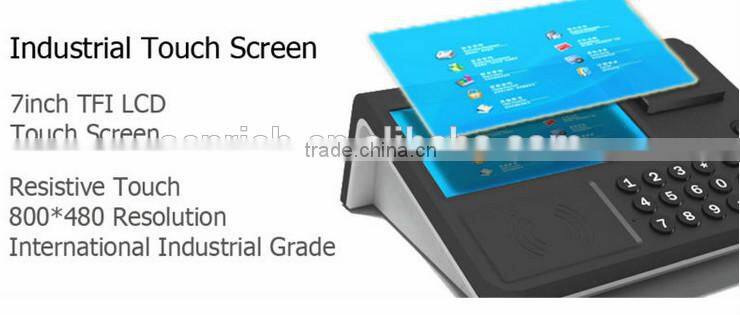

Display |
Screen Size |
7 inch color TFT LCD screen |
|||||
Touch Screen |
Capacitive touch screen |
||||||
Resolution |
1024×600 |
||||||
OS |
Android 4.2 |
||||||
Hardware Function |
Internet |
3G WCDMA |
Unicom 3G(WCDMA),Unicom 2G/China Mobile 2G(GSM) |
||||
GSM |
2GGSM850/900/1800/1900 |
||||||
WIFI |
IEEE 802.11 n/b/g |
||||||
Bluetooth |
Bluetooth V2.0,V3.0,V4.0 |
||||||
Navigation |
GPS |
||||||
NFC |
Frequency 13.56M |
Support:ISO14443A,ISO14443B,ISO15693,MIFARE Read/ Write Model etc. |
|||||
Camera |
Insult 200W pixel,support 1D/2D barcode scanning |
||||||
PSAM encryption |
Support 2-track PSAM card encryption card reader
|
ISO7816 standard |
|||||
Magnetic stripe card |
Support IOS7811 Standard Card(optional) |
||||||
Printer |
58mm thermal printer |
Support Chinese,English,1D/2D,Black and white binary images printing |
|||||
Language |
Chinese,English and other languages |
||||||
Secondary Development |
offer SDK |
||||||
Video Playback |
Support audio and video playback |
||||||

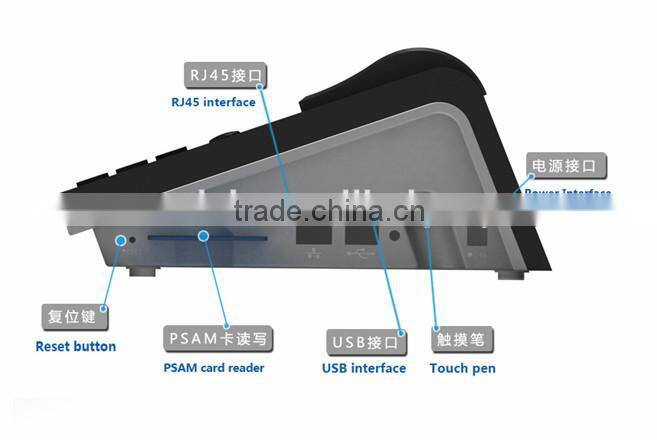

Input/ Output |
Loudspeaker |
Built-in speaker |
8 Ohm 0.5W |
||||
USB interface |
Host2.0,can connect with U disk,keyboard,mouse,USB devices,etc. |
||||||
Mini-USB interface |
Can pick up 5 pin of the USB cable, support for data with a PC connection |
||||||
RS232 interface |
offer a RS232 serial |
||||||
Power interface |
Can connect with DC9V,3A DC power adapter |
||||||
SIM deck |
Insert deck |
||||||
Panel buttons |
12 Number buttons and 9 related function keys |
||||||
Battery |
The battery capacity |
7.4V 2200mAH lithium battery |
|||||
Temperature and humidity |
Temperature:-10℃~50℃ Humidity:0~95% |
||||||
accessories |
AC adapter *1, Data Line*1 |
||||||

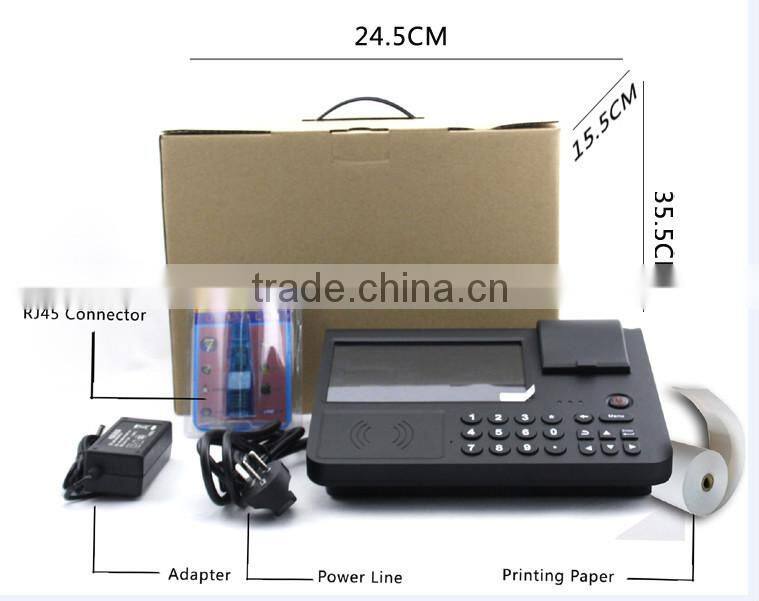

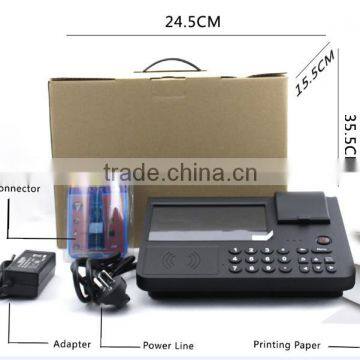

Product Size and Packing |
|||||||
Dimension and weight |
Product Size: 265mm*225mm*110mm |
||||||
weight:1.16kg | |||||||
Product Size:265*225*100mm
Packing size:350*260*160mm
N.W:1.16kg
G.W:1.84kg

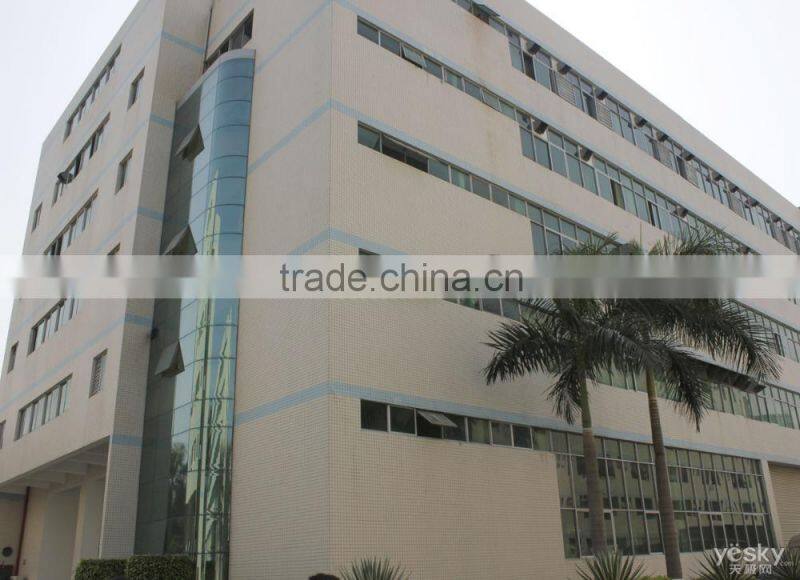

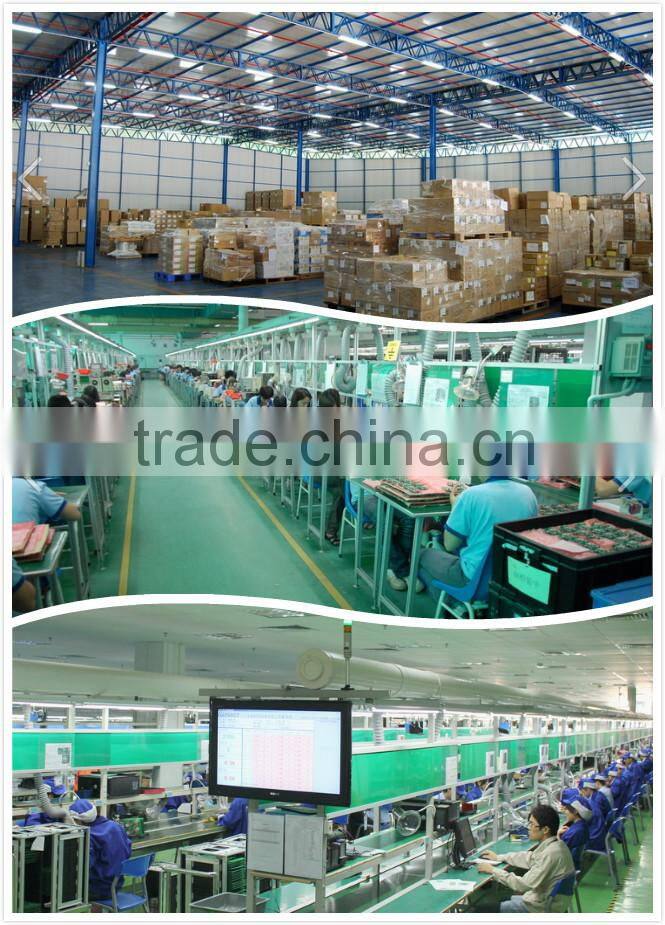

Our Factory:
Shenzhen SEN-RICH Technology Co.,Ltd located in shenzhen Internet industry base, is a professional manufacturer in producing handheld mobile communication terminal products !Combined R&D with sales ! Such as: PDA data collector; POS unionpay machine; Electric data acquisition; Parking management PDA, etc.

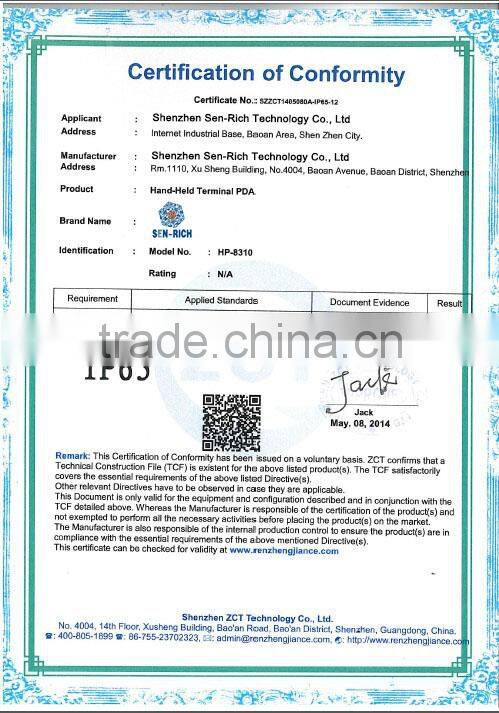

SEN-RICH has devoted to build and apply internet of things over the years. Relying on core intelligent technology and reliable products with perfect solutions, its product has been passed the "ISO9001 international quality management system certification enterprises" CCC, IP65 quality detection, etc. Products are widely used in smart grid, commerce, logistics, parking fees, and other areas of the Internet of things.
