High Quality 1.6x0.8x0.4mm Sanan Epistar Chip 1608 Red Smd Led
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Good Quality 0.4T 25mA Surface Mount 0603 Yellow Green Led Chip
-
Good Quality 1.6x0.8x0.4mm Sanan Chip 0603 1608 Blue Led Smd
-
Super Bright 1.6x0.8x0.4mm Sanan Chip 25mA 0603 Green Led Smd
-
Super Bright 1.6x0.8x0.8mm Sanan Chip 25mA 0603 1608 Warm White Smd Led
-
Good Quality 0.8T Sanan Chip Led 25mA Clear Lens 1608 Cool White Smd Led
-
Ultra Bright 0.4T Sanan Chip 25mA ce Rohs Approved 0603 White Flashing Smd Led
Product Details
| Model Number | HQ19-2151SURC, HQ19-2151SURC | Chip Material | AlGaInP | |
| Emitting Color | Red | Luminous Intensity | 140mcd | |
| Luminous Flux(lm) | 6-7lm / 5-6lm | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | R:620-630nm | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description

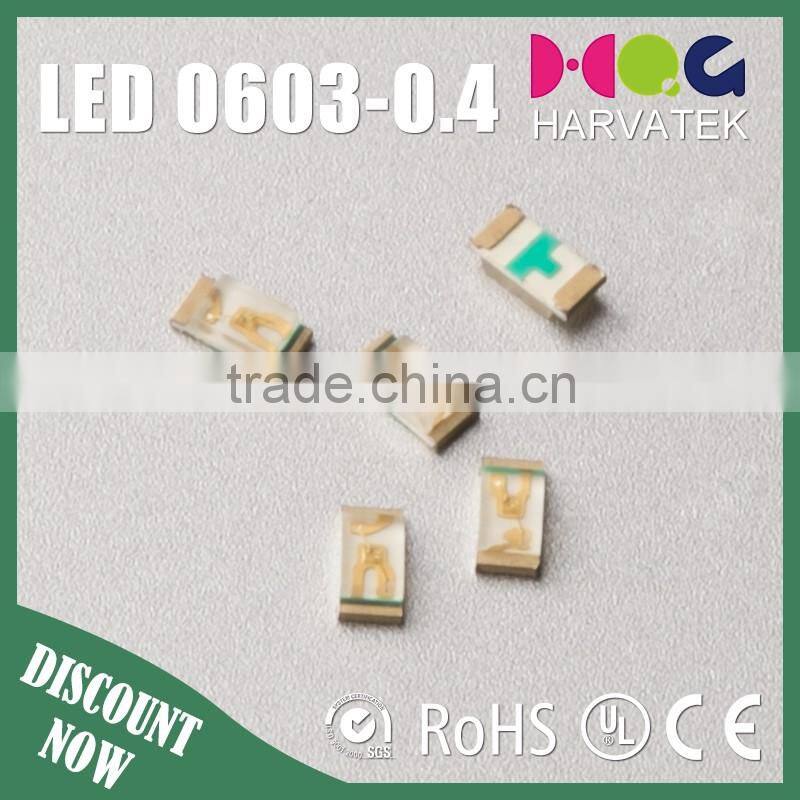

High quality 1.6x0.8x0.4mm sanan epistar chip 1608 red smd led
1. Features |
l Package ( L/W/H ) : 1.6×0.8×0.4 mm l Color : Ultra Bright Red l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

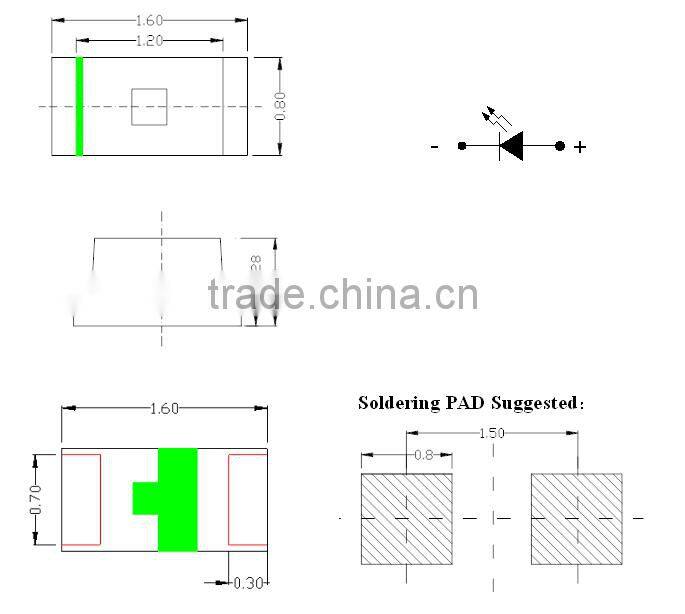

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit |
Power Dissipation | Pd | 75 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 70 | mA |
DC Forward Current | IF | 25 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -30°C ~ + 85°C | |
Storage Temperature Range | Tstg | -40°C ~ + 90°C | |
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | |
2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 1608 smd led and free samples, click the "send" below to contact us!
