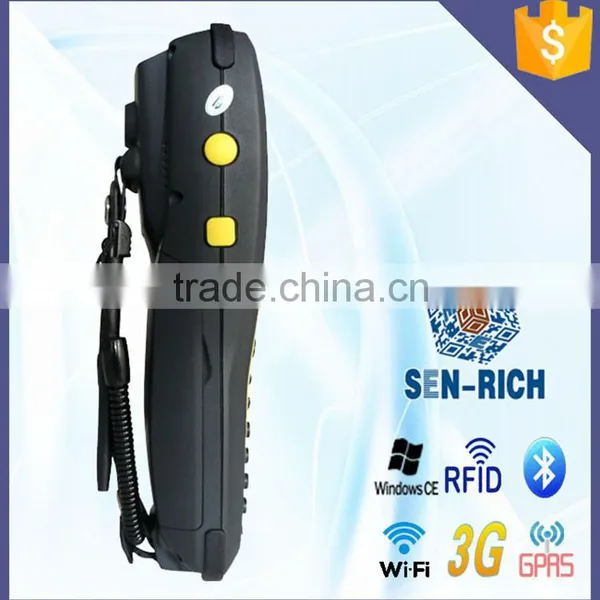

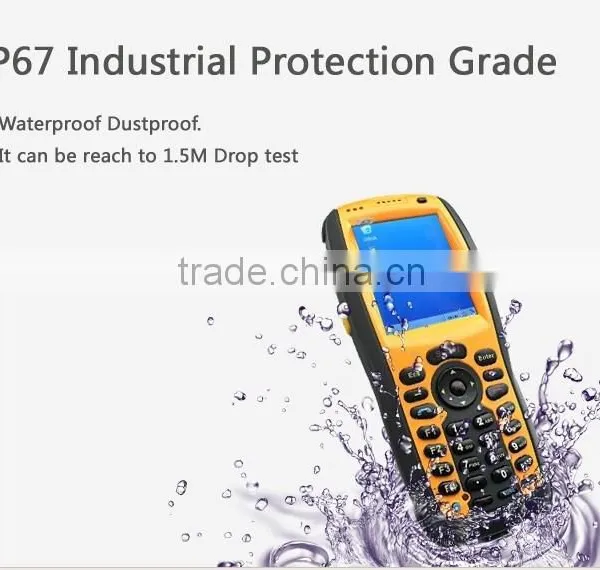

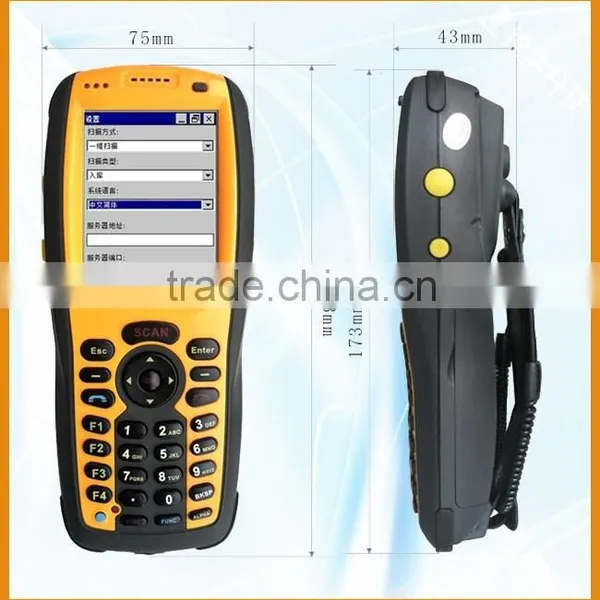

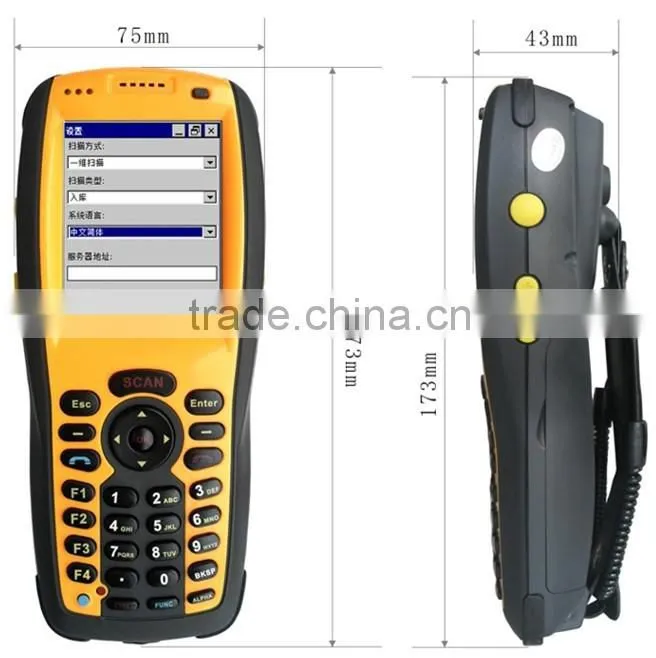

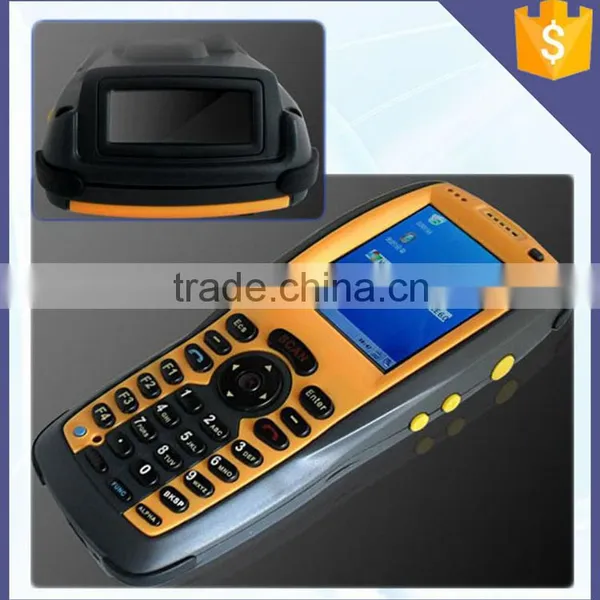

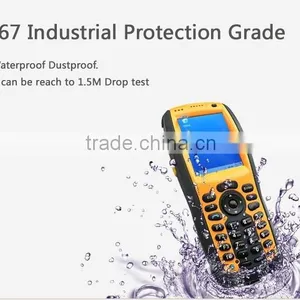

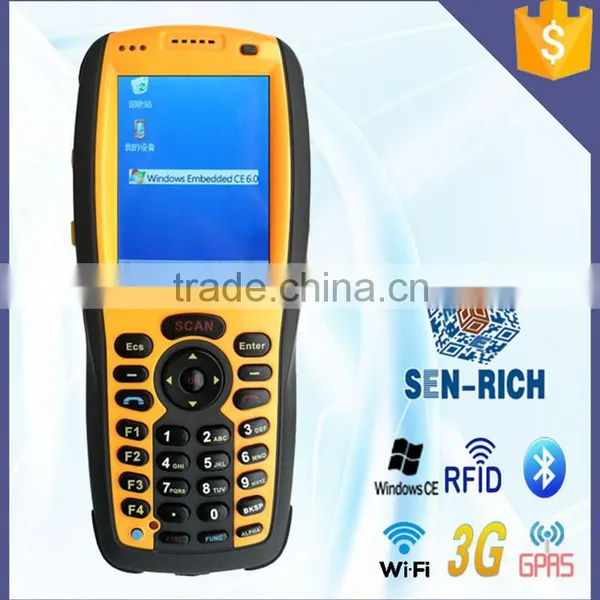

The following is the product pictures show, if you have any questions, you are welcome to communicate with me .
Central processor |
Master: |
Samsung S3C6410 |
|
Frequency: |
800MHz |
Built-in memory |
DDR1 |
128MB |
|
NAND Flash |
2GB |
Display |
Size |
2.8-inch |
|
Display |
TFT true color touch screen |
|
Resolution |
320×272 |
Operating system |
Window CE 6.0 |
|
Function |
3G(Optional) |
Support China Telecom CDMA |
|
GPRS(Optional) |
Support for mobile data transmission |
|
WiFi |
WIFI Wireless Communications,Support IEEE802.11b/g(standard configuration) IEEE802.11g(6M / sec transmission rate) |
|
GPS |
GPS navigation, positioning |
|

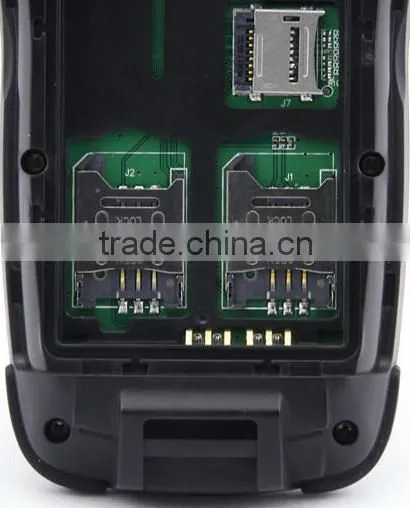

PSAM |
In accordance with "China financial integrated circuit (IC) PSAM card specification" identification card, with contact IC card standard "ISO/IEC 7816-1/2/3/4" "the people's Bank of China PSAM card specification" |
|
RFID |
Operating frequency:13.56MHz |
|
|
Protocol support:ISO/IEC 14443A/MIFARE Read / write mode Support M1,S70 card etc |
|
Bluetooth |
Bluetooth communication,Supports protocol version 2.0, 2.4 GHz |
|
Bar code scanning |
One-dimensional laser bar code scanning, two-dimensional bar code scanning |
|
Camera |
Support built-in 2 million 5 million camera |
Input and output |
Serial ports |
Provide an external 232 standard serial port |
|
USB interface |
USB device 2.0 interface |
|
Storage Interface |
TF card slot |
|
IO expansion interface |
Built-in SPI I2C serial GPIO and other expansion |
|
Power synchronization port |
MiNi-USB interface,For 5V power charging and PC synchronization |
|
Speaker |
Support for audio and video playback |
|
Indicator |
Charge, working indicator |
|
Function keys |
34 function keys+5 side key |
Battery |
Battery capacity |
3.7V 3100mA lithium polymer battery |
|
Charging time |
Power off charging:3~4 hours; On charging:6~8hours |
|
Life time |
Video player>6 hours |
Language |
Chinese or English(Optional) |
|
Secondary development |
VBVS,NET2005(2008),MS EVC 4.0 ,VC,C#,C++ (Provide the SDK) |
|
Temperature and humidity |
Temperature:0℃~50℃ Humidity:0~95% |
|

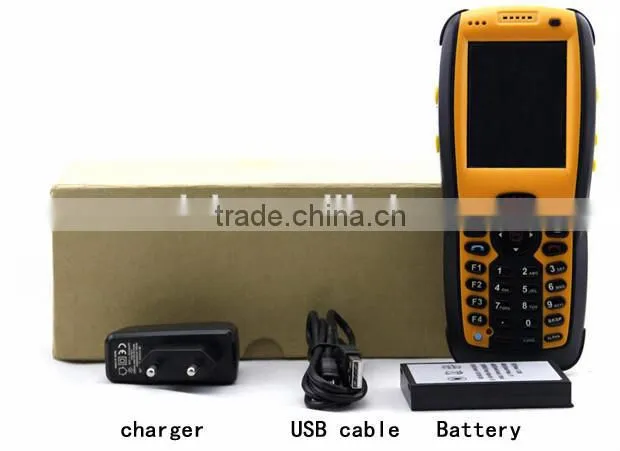

Fitting |
USB data line and a touch pen,A power adapter,A battery |
|
