Advertisement Cnc Router Bits DW1212

Name: Advertisement Cnc Router Bits DW1212
Brand: Dwin
SKU: 127150043

Advertisement Cnc Router Bits DW1212 thumbnail-1

Advertisement Cnc Router Bits DW1212 photo-1

US$ 2,800 - 3,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Dwin

Model Number:

DW1212

Contact Supplier Request Quote Chat Now

Jinan Dwin Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Dwin

Model Number DW1212

Specifications

cnc router bits
ing area:1200*1200mm
ftware surroundings:windows98/2000/xp
3.positioning accuracy:0.05mm

DW1212 cnc router bits

Features:

1.Imported bearings, contant torque,low noise,high power water cooing spindle.

2,Taiwan transducer with stable output signals.

3,High flexility, uneasy distorted cable and imported electronic components.

4,This series routers are designed with 3D embossment engraving particulary for redwood, classiacal, funiture,high precision,high speed,can satisfy any kinds of engraving work

5.with the round guide rail .

6,Three axises dustproof, Gantry mode movement, whole cast structure, Strong and long lifetime ,steady working without distortion, high precision.

7,. The system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.

8,The water cooling spindle driver adopt imported sccessaries and imported transducer, low noise, long life span, low maintenance cost.

Technical parameters:

Model DW1212

X,Y working area : 1200×1200mm

Z working area : 120mm

Table Size 1400×1470mm

Max. Speed : >12m/min

Max. working speed : 10m/min

Max. feeding height : 120mm

Working delicacy: 0.005mm

positioning accuracy: 0.05mm

Command: G code*.u00*.mmg*.plt

Surroundings for software : windows98/2000/xp

Software Compatability: Type3 Software, Ucancam software,

Power (spindle is not included) : 1.2kW

Working voltage : AC220V/50Hz

Spindle power : 2.2KW

Spindle rotating speed: 0-24000rpm/min

Collect : ER16

Detailed Product Description

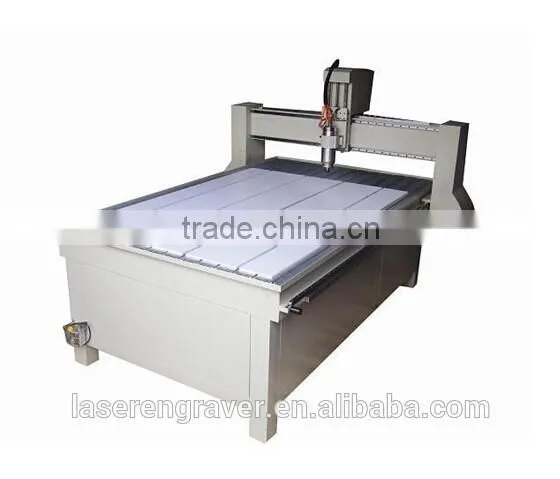

DW1212 MDF cnc router machine
1.high precison and fast speed
2.engrave and cut the metal
3.with CE

DW1212 MDF cnc router machine. engrave and cut the metal is mainly for the advertisement ,arclyic ,and the relevent materials ,it can also engrave and cut the metal

Specifications:

X,Y working area	1200×1200mm
Z working area	>120mm
Table Size	1400×1470mm
Max. Speed	>12m/min
Max. working speed	10m/min
Max. feeding height	>120mm >
Working delicacy	0.005mm
Repositioning accuracy	0.05mm
Command	G code.u00.mmg*.plt
Surroundings for software	windows98/2000/xp
Software Compatability	Type3 Software, Ucancam software,(Option:Artcam )
Power (spindle is not included)	1.2kW
Working voltage	AC220V/50Hz
Spindle power	1.5kw/2.2KW
Spindle rotating speed	0-24000rpm/min
Collect	ER16
