Specifications
YAG-50 laser marking machine1,High quality and high speed
2,Compact design
cess metal and nonmetal

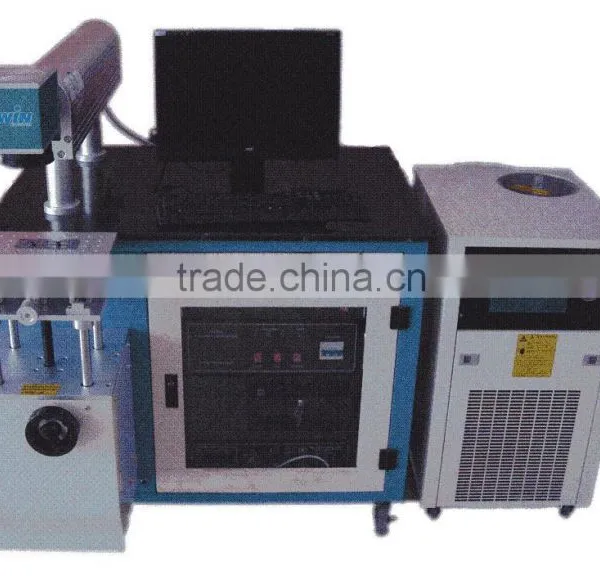

DW50D Laser marking machine
Features:
1) Use the advanced diode side-pumped laser technology, with high optical conversion efficiency and stable performance.
2)Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.
3) With preciser beam mode than YAG lamp-pump laser machine, the high precision is what the YAG Lamp-pump laser machine can not reach.
4) No need to change the consumables (such as laser lamp), free of maintenance,
very low operation cost.
5) All the core optical components used such as laser diode, Q-switch crystal,
are famous brands with top quality, therefore the whole machine is with very
stable performance and long life time.
Specifications:
1. Laser output power : 50W
2. Laser wavelength : 1064nm
3. Standard marking scope: 110 mm*110mm
4. Selective Marking scope: 70mm*70mm/150 mm*150mm
5. Beam quality: M2 <3 (@ 25A)
6. Marking depth: 0.01~0.2mm
7. Marking speed : 7000mm/s
8.Repeated accuracy : ±0.01mm
9.Minimum character ; 0.1mm
10.Minimum line width : 0.015mm
11.Electric power requirement : 380V/50-60Hz220V/50-60Hz
12.Machine power: 3KW
13. Dimensions :(L*W*H)
Mainframe : 240mm*1280mm*1200mm
Control Cabinet : 590mm*560mm*800mm
Water Cooling Machine: 540mm*700mm*900mm

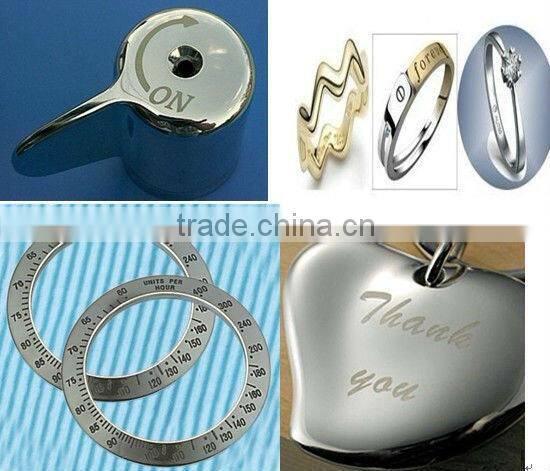

samples:
1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
last but not the least Dear customer, this just a normal model ,if you have any special application or materials,please don't hesitate to tell us ,we can manufacture as your request and give you a satisfying result . Besides,we have many kinds of the machine fittings ,if you need help,please contact us ,we are willing to help you!
our company team
