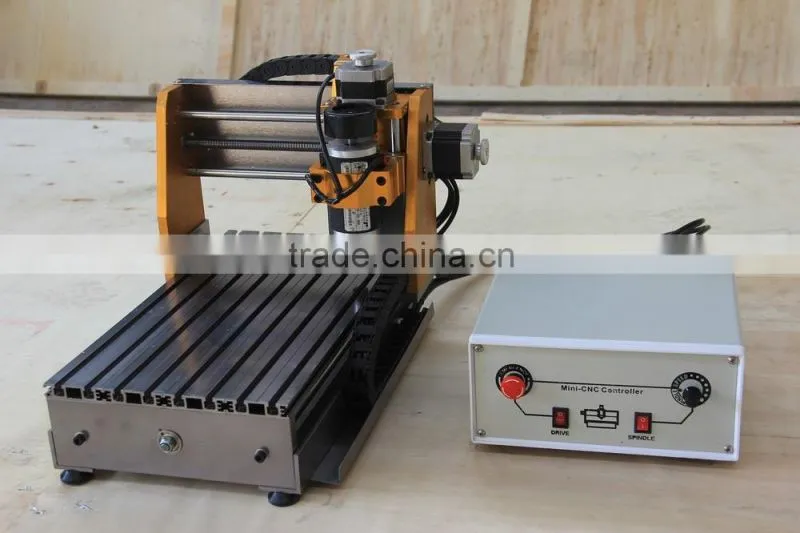

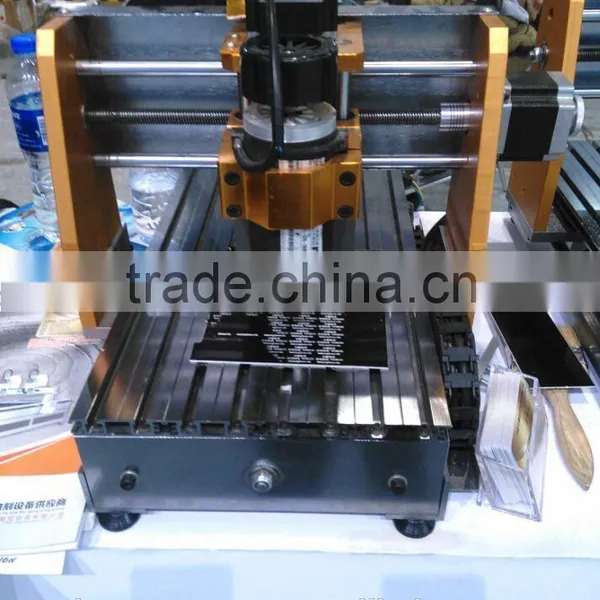

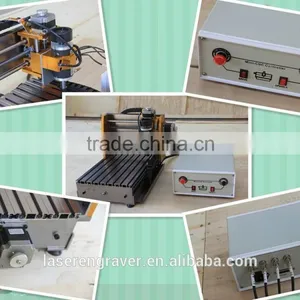

Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc

Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc thumbnail-1
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc thumbnail-2
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc thumbnail-3
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc thumbnail-4
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc thumbnail-5
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc photo-1
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc photo-2
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc photo-3
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc photo-4
Jinan Factory Portable March3 Control System 300x200mm Cnc Router/router Cnc photo-5
US$ 600 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, CNC Router, portable router cnc
Use:
Marble
Contact Supplier Request Quote Chat Now
Jinan Dwin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, CNC Router, portable router cnc
Use Marble
Place of Origin Shandong, China
Brand Name Dwin cnc cutting machine
Model Number DW3020 cnc cutting machine
Voltage 220v
Power(W) 400w
Dimension(L*W*H) 600x600x600mm
Weight 25kg
Certification CE FDA
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

                     Jinan factory portable march3 control system

                              300x200mm cnc router/router cnc



 Jinan factory portable march3 control system 300x200mm cnc router/router cnc

Product Description

Applicable industry:

Stone,Cu and AL processing, wood processing, mold manufacturing, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, stamp cutting, PCB cutting, etc.





Technology

Portable router cnc

Type

Portable router cnc

Model

DW3020 portable router cnc

Machine Body

Whole cast iron

Work Dimensions

300x200x60mm

Z-axis Working Area

60mm

Max. Feeing Height

60mm

Cut Thickness of Material

<20mm

Max. Speed

4200mm/min

Working Speed

0-3000mm/min

Mechanical Precision

0.01mm

Software

March3

Max. Power Consumption

900W

Power Supply

AC220V/50Hz and others

Driver Type

Lead shine Stepper Motor

Memory

1MB

Spindle

 400w water cooled motor

Spindle Speed

0-24,000rpm

Blade Diameter

1-6m

Control System

Artcut or Weihong (NCSTUDIO) or DSP(USB interface

Command

G code, u00, mmg, plt

Interface

RS232

Running Circumstance Temperature

0-45

Relative Humidity

30%-75%

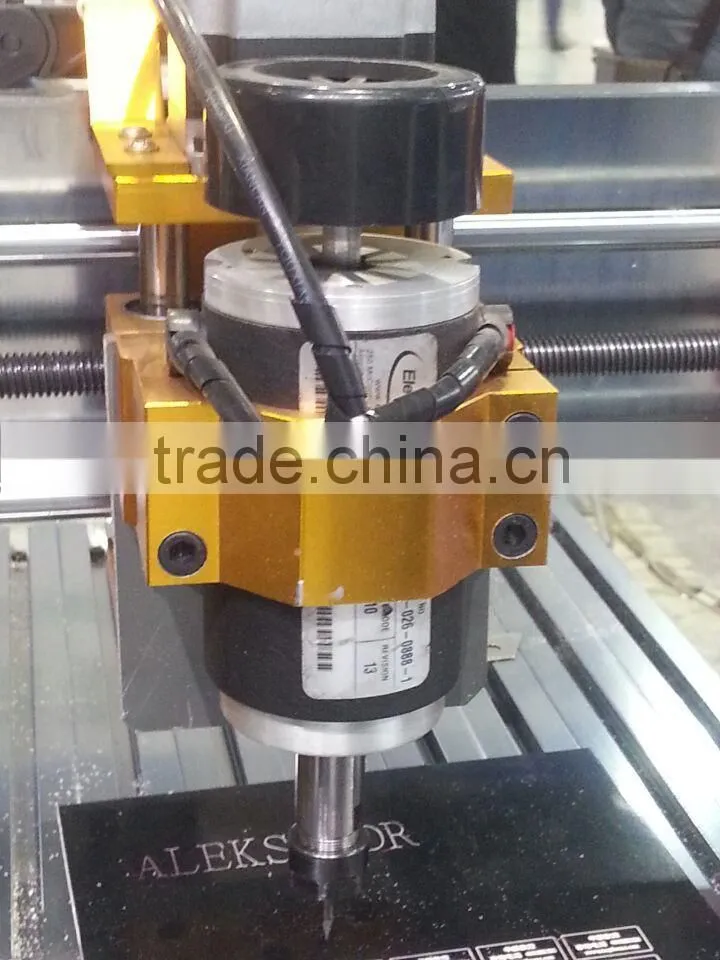

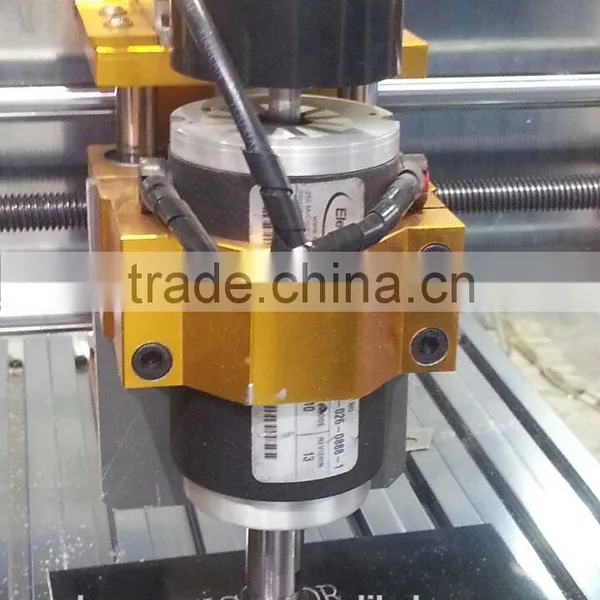

machine parts

Portable router cnc



Jinan factory portable march3 control system 300x200mm cnc router/router cnc

 Jinan factory portable march3 control system 300x200mm cnc router/router cnc

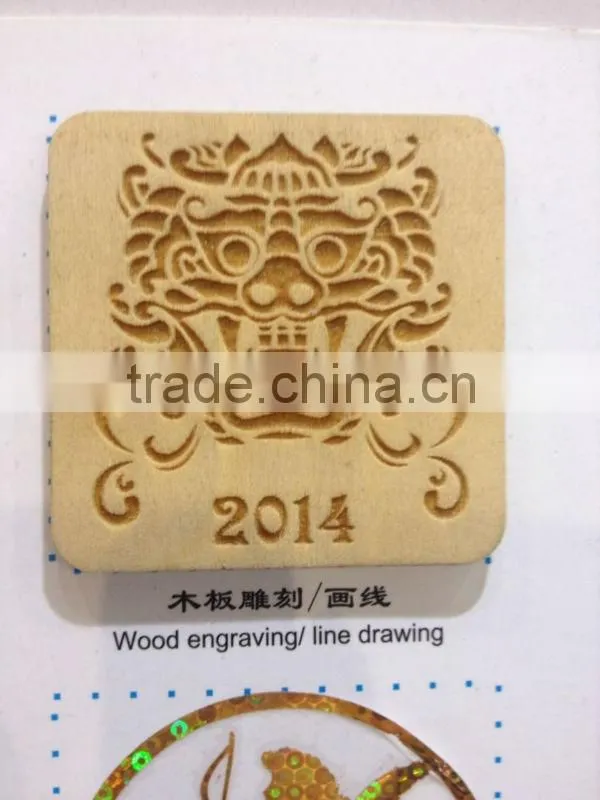

sample





Portable router cnc



 Jinan factory portable march3 control system 300x200mm cnc router/router cnc





Packaging & Shipping



Portable router cnc Jinan factory portable march3 control system 300x200mm cnc router/router cnc



Our Services

Portable router cnc



1)      The machine guarantee period is 12months.

2)      24 hours technical support by email or calling.

3)      Friendly English version manual and operation video CD disc.





Company Information

Portable router cnc







 Jinan factory portable march3 control system 300x200mm cnc router/router cnc
