Hot Selling Cnc Router With CE For Wood Acrylic Mdf Aluminum 6090 Machine

Name: Hot Selling Cnc Router With CE For Wood Acrylic Mdf Aluminum 6090 Machine
Brand: DWIN
SKU: 127139969
Availability: InStock

Jinan Dwin Technology Co., Ltd.

US$ 2,600 - 3,300 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name DWIN

Model Number DW-6090

Voltage 220V

Power(W) 2.2KW/3.2kw

Dimension(L*W*H) 600x900x100mm

Weight 200kg

Certification CE FDA

Warranty 12 months, 12 months

After-sales Service Provided Overseas service center available

Hot selling cnc router with CE For wood acrylic mdf

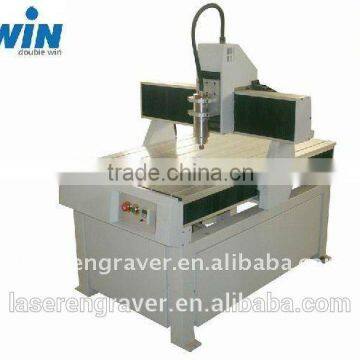

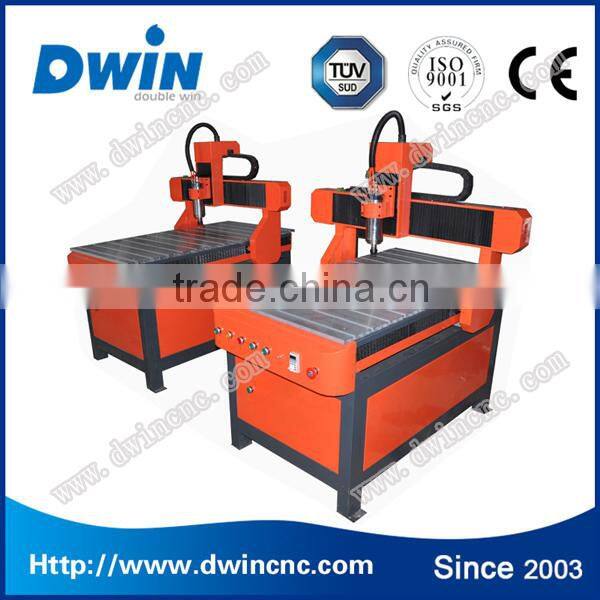

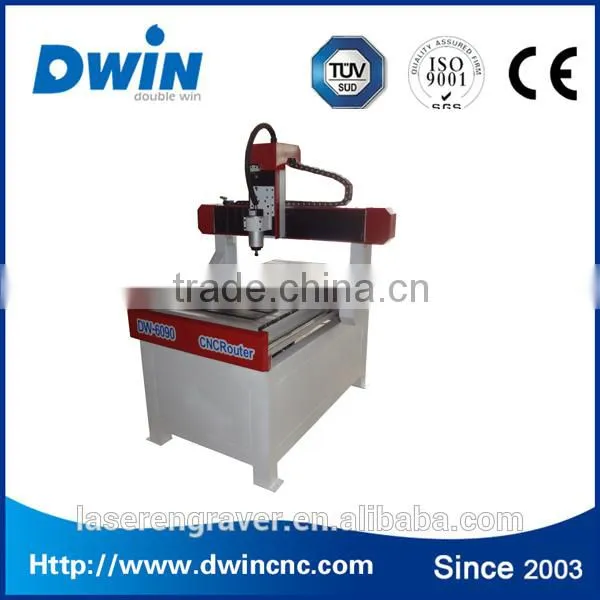

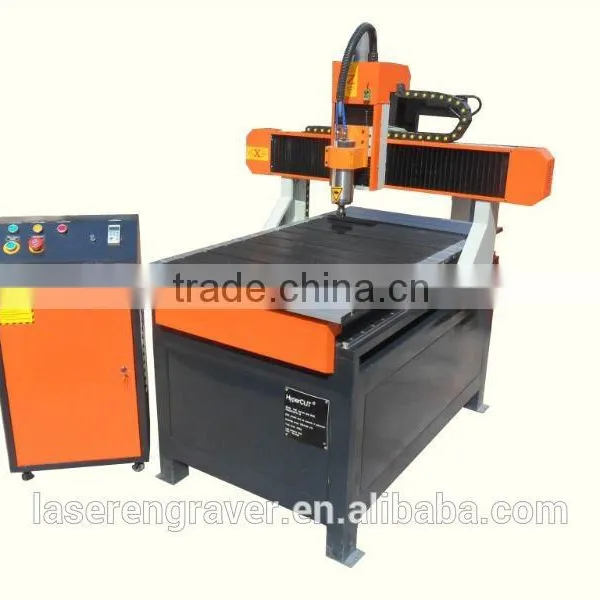

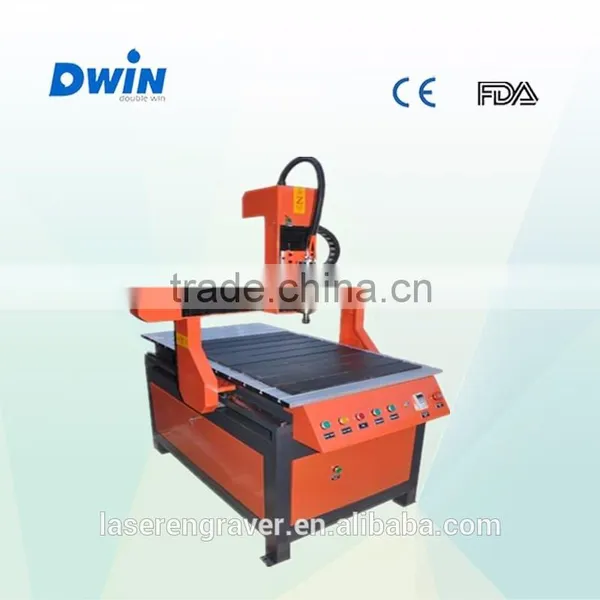

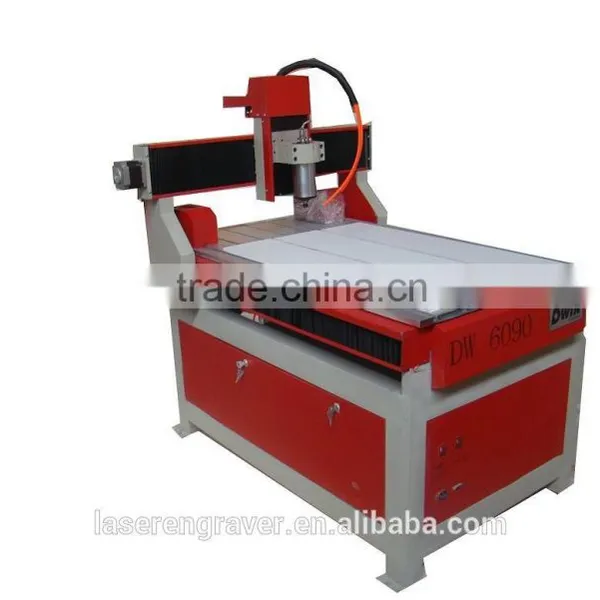

6090 cnc router

1. DW6090 CNC router is one high precision small CNC engraver with 2D& 3D CAD/CAM machining

capabilities.

2. It is the best choice for the Engraver,Sign maker,Panel maker and Educational Institution.

3. The machine structures are designed with cast steel and with Germany ball screws transmission for x, y

& z axes. It is small enough to fit into almost any work space.

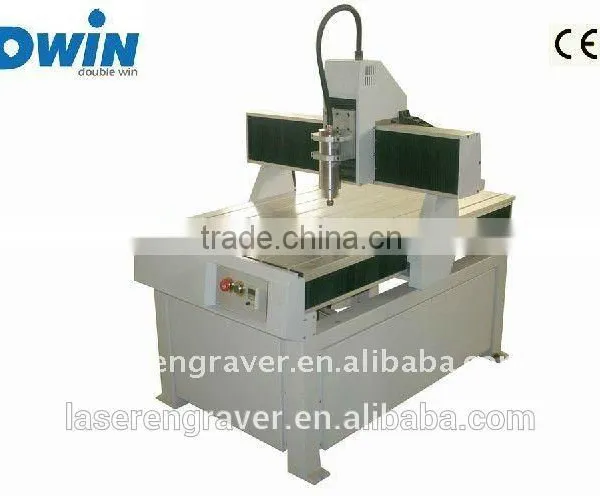

	6090 cnc router
1	X,Y,Z Working Area	600x900x100mm
2	Table Size	1560X1050mm
3	X,Y,Z Traveling Positioning AccuraIT	±0.03/300mm
4	X,Y,Z repositioning Positioning AccuraIT	±0.02mm
5	Table Surface	T-slot Extrusions
6	Frame	Welding steed
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. power Consumption	0.8Kw
10	Max. Rapid Travel Rate	8000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power Motor	2.2Kw self cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 software, Ucancam software, (Option: Artcam software)
23	Running Environment	Temperature: 0°C~45°C Relative humidity: 30%~75%
24	Packing Size	1710 x 1250 x 1585mm
25	Net Weight	180KG
26	Gross Weight	272KG
