DW1325 Hot Sale Marble Cnc Router With Waterproof

Specifications

marble cnc router with waterproof
1.can bear heavy stones,tile,tombstones
2.with the fast speed
3.3 axis is linear guide ra

 DW1325  marble cnc router with waterproof







This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.

Performance Features:

1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .

2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.

3.Constant power spindle and motor,highly cutting capability ,high efficiency.

4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.

6.High flexibility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.





Standard configurations:







1.Spindle:4.5KW-9KW water cooling (Air cooling & Italy HSD for your choice)





2.Stepper motors (Servo motors, Japan Yaskawa and panasonic servo motors for your choice )

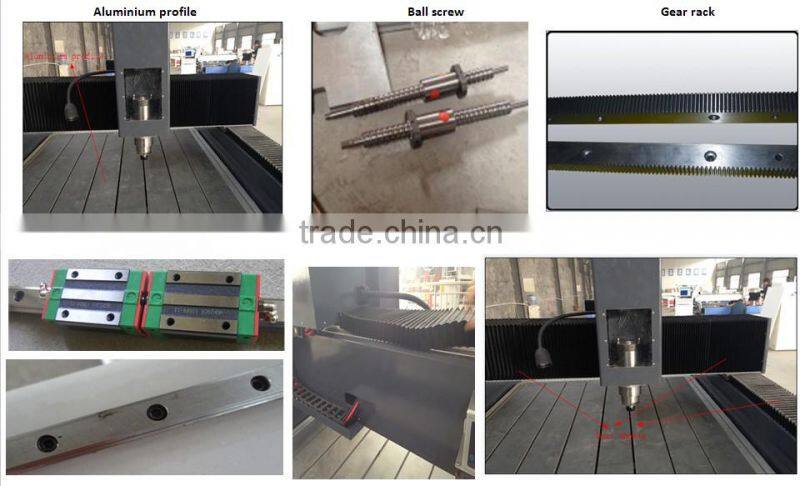

3.Taiwan Imported HIWIN or PMI square linear orbit





4.DSP or NCstudio control for your choice





5.Water tank, used for cooling the bits





6.Whole seamless weld steel structure





7.20 pieces of different size bits

Technical parameter:

Performance parameter	9015	1218	1224
X,Y Working area	900mmx1500mm	1200mmx1800mm	1200mmx2400mm
Z Working area	250mm	250mm	250mm
Table size	1100mmx2000mm	1400mmx2300mm	1400mmx2900mm
Processing precision	0.05mm	0.05mm	0.05mm
Reposition precision	0.02mm	0.05mm	0.05mm
Table structure	aluminum	aluminum	aluminum
X,Y,Z structure	X,Y,Z ballscrew	X,Y,Z ballscrew	X,Y,Z ballscrew
Command	G CODE	G CODE	G CODE
Machine power	2KW	2KW	2KW
Max processing speed	6000mm/min	6000mm/min	6000mm/min
Max speed	8000mm/min	8000mm/min	8000mm/min
Working voltage	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Spindle power	5.5KW	5.5KW	5.5KW
Spindle rotating speed	0-24000rpm/min	0-24000rpm/min	0-24000rpm/min
Drive motor	Stepper	Stepper	Stepper
Operation system	PCI CARD /DSP/Mach3	PCI CARD/DSP/Mach3	PCI CARD/DSP/Mach3

 Samples:
