Specifications
3d stone cnc engraving machine1.high precision
2.machine can be divided into two parts
3.with red point

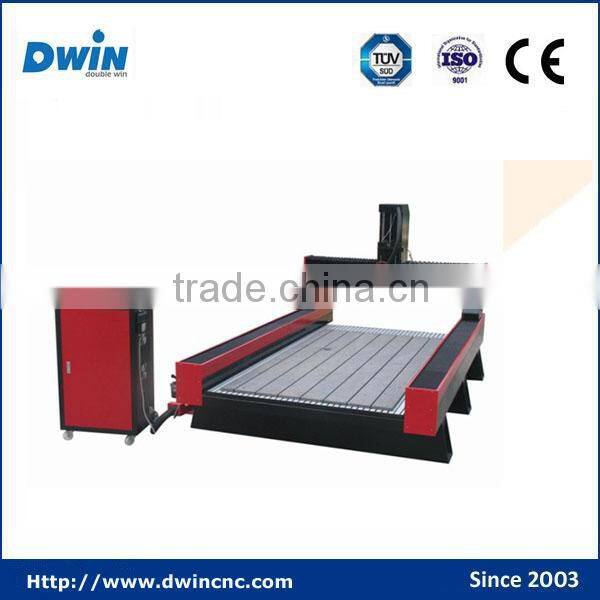

DW 1325 water jet marble cutting machine
water jet marble cutting machine Features and Advantage
1. T-slot mesa, lathe bed is more stable.
2. Water cooling system ensures the cutter a long life.
3. Have breakpoints, power failure continued carving function.
4. Dust oiling structure, effectively guarantee the mechanical aspects of the long run.
5. High power water-cooled brushless motor make it more forceful in cutting capability and wear well.
6.Main configuration chooses import, joint venture brand components, stable and reliable performance.
7.High compatibility,applicable for CNC software:type3,Artcam,Castmate,Pore,Wentai,cariable CAD/CAM etc.
8.Machine is equipped with a sink and automatic water supply system, which can be fully to the cutting tool and machining of stone, metal cooling.
9.Machine body is industrial production model, heavy all steel welded structure, tempering aging treatment, strong Non-deformation. Durable in use.
10.Triaxial exclusive dust protection, waterproof technology used to ensure that the guide rail, gear and rack from the cutting dust and scraps, prolong the service life of parts.
Applicable Industry
The stone industry , stone processing industry, art industry, advertising industry, decoration industry, ceramics reliefs industry and so on.
Technical Parameters
| Working size | 1300×2500×200mm water jet marble cutting machine |
| Spindle power | Water cooling 3000W |
| Spindle rotation | 6000--24000rpm |

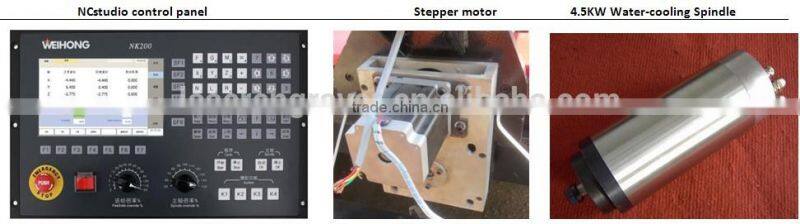

| Motor driver | Stepper motor driver(Chinese servo motor and Japan servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | High accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | 0.03/300mm |
| Engraving speed | 12000mm/min |
| Data transmission | PC connect directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 1200kg |
sapre parts

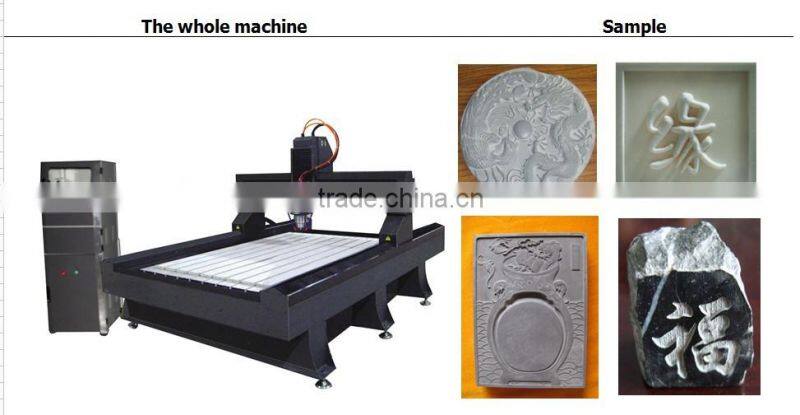

samples
