Specifications
sculpture marble router cnc engraving machine1.high precision,fast speed
2.water cooling
3.DSP or NCstudio controller
4.CE
DW1325 sculpture marble router cnc engraving machine
sculpture marble router cnc engraving machine Features:

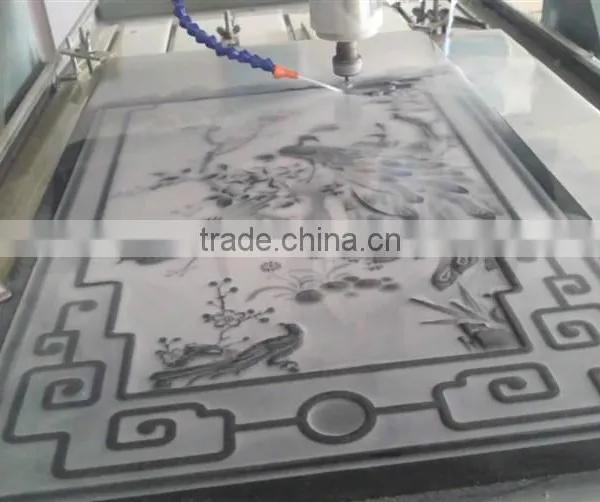

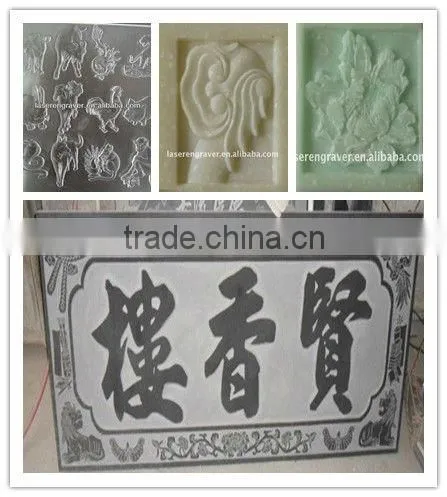

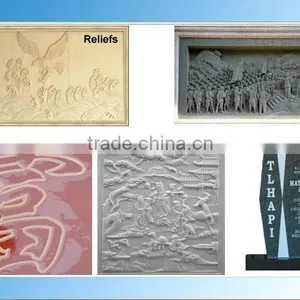

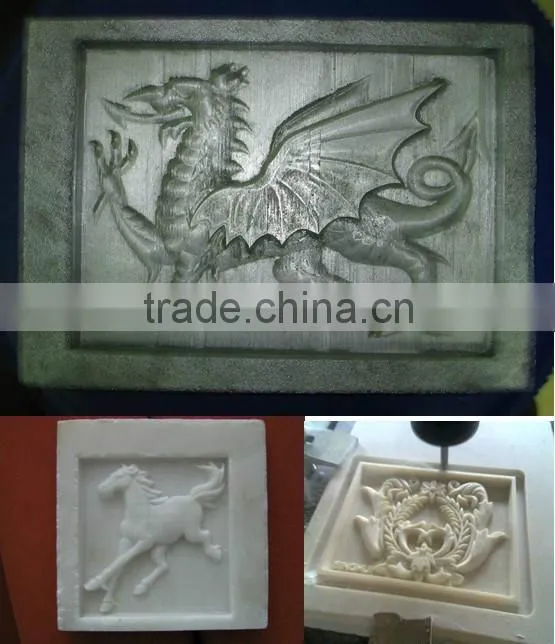

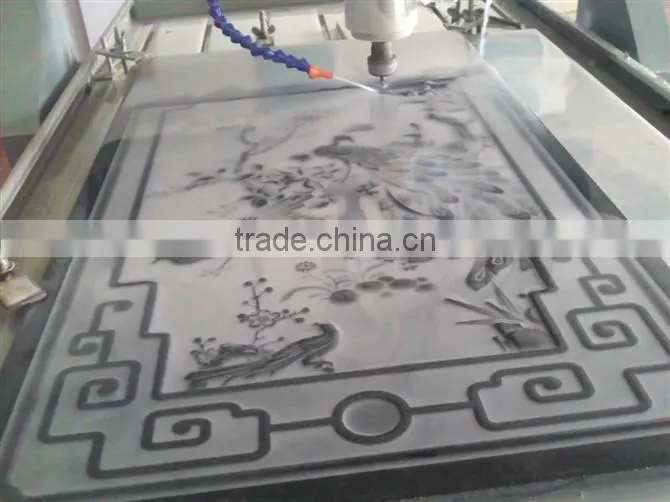

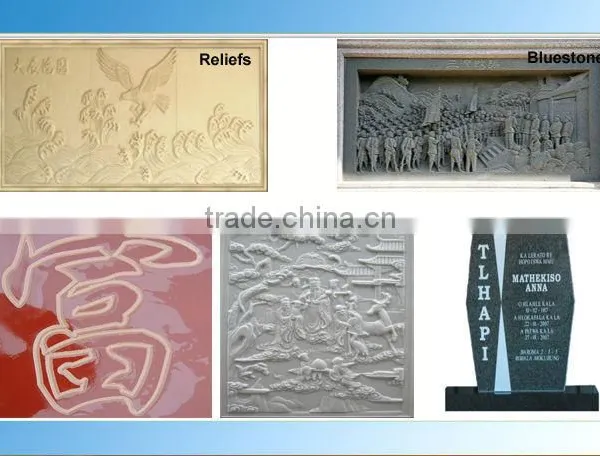

stone engraving router mainly used for heavy weight of the tile ,bluestone ,granite and tombstones,etc have the strong structures
3d heavy marble engraving cnc router Performance Features:

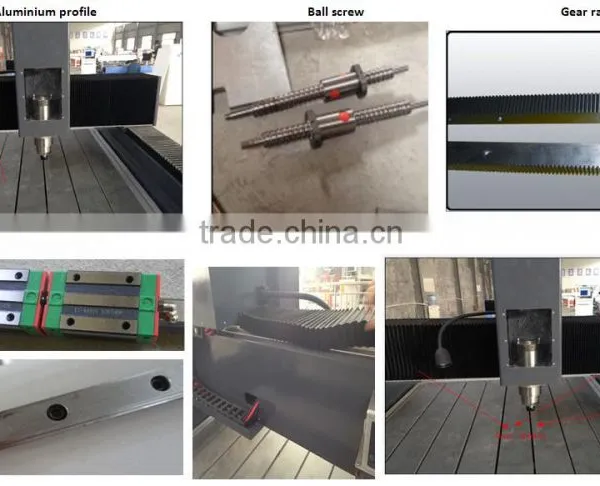

1.Three axises adopt import Taiwan Hiwin (or PMI) square linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3. Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
4. Constant power spindle and motor, hightly cutting capability ,high efficiency.
5. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam, Castmate ,Wentai ,Coredraw.
6. Double direction cutters cooling system can prolong the lifetime of using.
7. High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
sculpture marble router cnc engraving machine Standard configurations:
1.Spindle:4.5KW-9KW water cooling (Air cooling & Italy HSD for your choice)
2.Stepper motors (Servo motors, Japan Yaskawa and panasonic servo motors for your choice )
3.Taiwan Imported HIWIN or PMI square linear orbit
4.DSP or NCstudio control for your choice
5.Water tank, used for cooling the bits
6.Whole seamless weld steel structure
7.20 pieces of different size bits
sculpture marble router cnc engraving machine Performance parameter
X,Y Working area : |
1300mmx2500mm |
Z Working area: |
250mm |
Table size : |
1500mmx3000mm |
Processing precision : |
0.05mm |
Reposition precision: |
0.02mm |
Table structure : |
aluminium |
X,Y,Z structure : |
X,Y,Z ball screw |
Command: |
G CODE |
Machine power: |
2KW |
Max processing speed : |
30000mm/min |
Max speed : |
8000mm/min |
Working voltage: |
AC380V/50Hz |
Spindle power: |
5.5KW |
Spindle rotating speed : |
0-24000rpm/min |
Drive motor : |
Stepper |
Operation system : |
DSP or NC studio |
1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc
