Help CenterBrick Wall Cutting Tools (ZIR-YF-3580)
Related Products
Specifications
brick wall cutting tools:1.Rated power:1450w
2.Switch more comfortable,dust function better
3.GS/CE/EMS/ROHS certification
INTRODUCTION:
Our electric tool--- wall chaser is really some of renovation as a supplementary tool in the building construction.

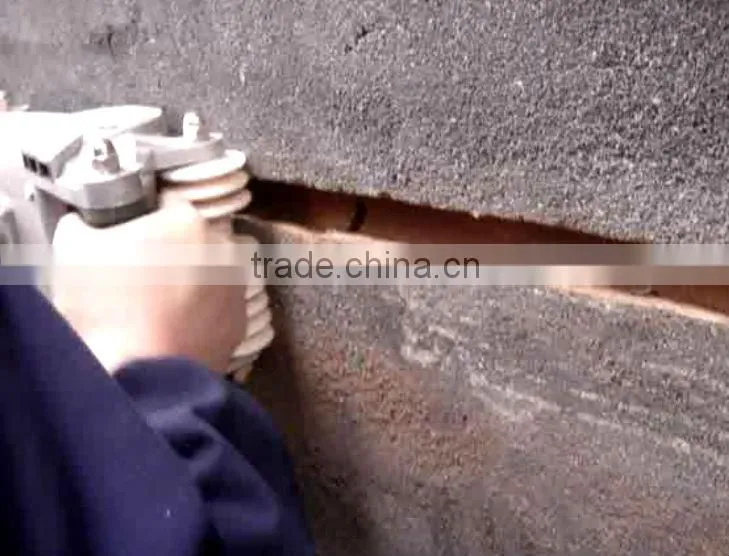

It is used to chase for installation of electric wires into wall. With this machine, the construction efficiency can be
greatly improved, when compared to traditional wall-chased equipments. Its chasing speed can reach up to 2
meters in red brick wall and 1 meter in brick wall with cement covered. Its driving part is finished by CNC Machining
Center, which guarantees its good work in rough conditions. This product also contains many humane-oriented
specialties as below:
A. Chasing Speed: 2 meters in red brick wall and 1 meter in brick wall with cement covered;
B. Finish of Driving Part: CNC Machining Center;
C. Anti-dust Grade: No scatter of dust;
D. Blade Life Time: up to 40 times;
E. Dust Collector: either connected to the chaser or not;
F. Life Time of Carbon brush: more than 200 hrs;
G. LED Indicator: LED indicator warns if with no carbon brush;
H . Lubricating Material: liquid oil
specification:
| Motor: | Universal 1450W 110V/220V±10%(AC),50/60Hz |
| No-load speed: | 1800RPM |
| Grooving width: | A(15-25mm) B(25-35MM) |
| Maximum grooving depth: | A(15-25mm) B(25-35mm) |
| Weight: | 8kg |
| Package size: | 46*44*35CM/2pcs |
| Packing model: | BMC |
| Certified | GS / ROHS |
BLADE

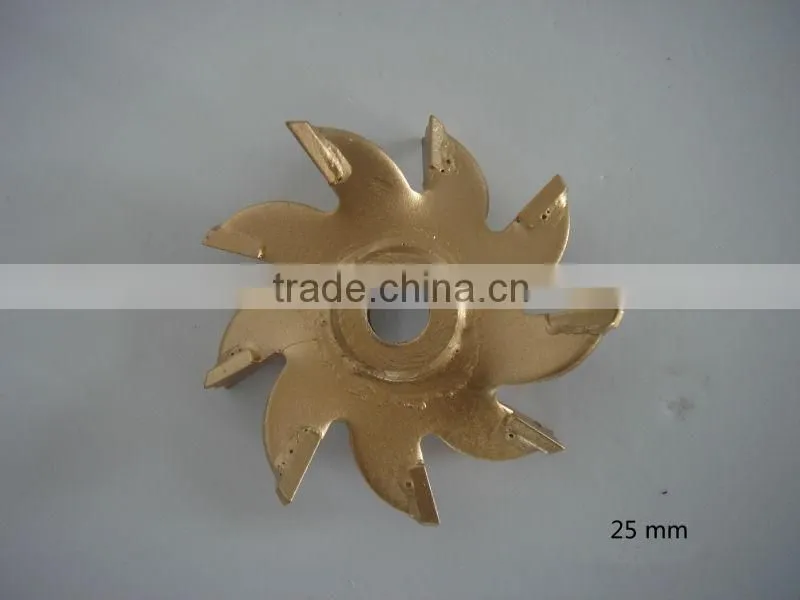

The wall chaser have two mdoels and two blades for choosing. One is 25mm blade, the grooving depth can
reach 16-25mm, while width can reach 25-28mm, it is suitable to chasing the groove for electric wire. The other

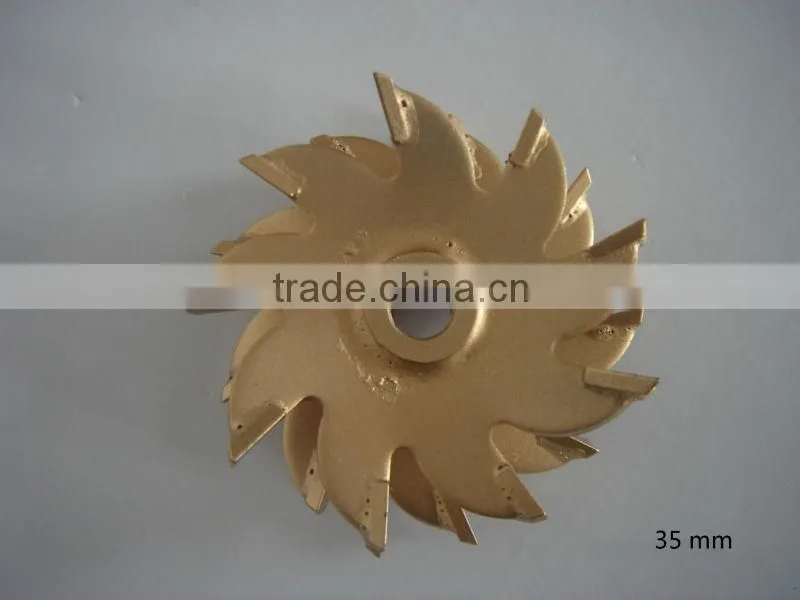

one is 35mm, which groove width and depth can reach 35-40mm. It is suitable for water pipe. For your information,
this machine is suitable to brick wall or brick covered cement, not suitable to concrete.
