Rotary Screen Printer

Rotary Screen Printer photo-1
US$ 80,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name HD
Model Number HD-6
Usage Cloths Printer
Automatic Grade Automatic
Voltage 220v or 380v
Gross Power 105~160kw
Certification CE marking
Warranty 13 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Rotary screen printer
2.High precision
3. High stability
4.High corrosion resistance

HD-6 Open width Rotary Screen Printer


Technical features:

  1. Independent servo/computer controls

  2. High stability: printing unit precision pneumatic controls stability

  3. High corrosion resistance: 80% of stainless steel steel and corrosion-resistant materials

  4. Mechanical systems integration: low failure disign

  5. New concept of energy saving and environment protection, save water and electricity (cycling use of water)

  6. Scraper/magnetic rod combination machine: suitable for different weight fabric

  7. Printing stable and flexible: imported stainless steel ball screw. Move the printing table without mechanical clearance.

  8. Unique printing system, gluing, washing, printing rollers can expand more additional systems.

  9. Double correction device, stainless steel rollers. Infrared ray probe ensures the conduction band running smoothly.

  10. The dryer with high fabric entry saves your workspace.





Technical Parameter:

1.Efficient printing width: 1800~4000mm

2.Printing colors: 4~24

3.Screen pattern repeat: 640,726,819,914,1018,1200

4.Standard speed: 4~100m/min

5.Printing type: magnetic rod or scraper

6.Register precision: ±0.05mm

7.Driving type: independent servo driving

8.Digital main screen: optical fiber servo main line controls(Chinese-English display)

9.Dryer type: standard dryer, loose type dryer, open-width entry

11.Heating Source: thermal oil: (160°), natural gas(180°), steam(130°)

12.Air pressure: 0.6~0.8MPa

13. Water pressure: 0.3MPa

14. Total power: 105~165KW

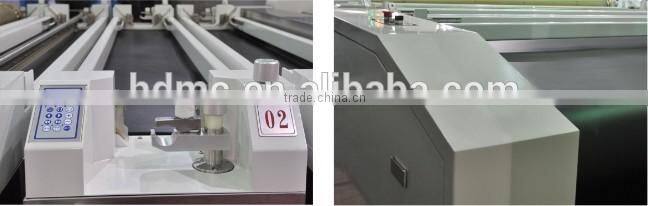

 Rotary screen printer

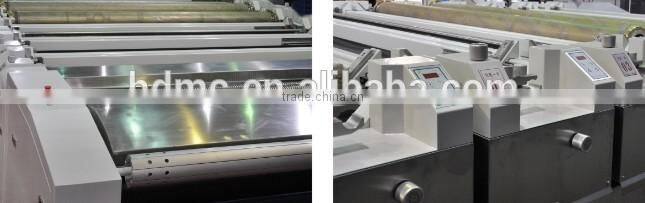

Rotary screen printer
