Help Center15mm Mini Stepper Motor
US$ 2 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Constar
Model Number:
1511BY01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5V Mini PM Stepper Motor 12mmNegotiableMOQ: 100 Pieces -
24v 35mm High Precision Sterpper MotorNegotiableMOQ: 10 Pieces
-
3515BY 24V 2 Phase Stepper Motor DriverNegotiableMOQ: 10 Pieces
-
24V 3515 Printer PMDC Mini Step MotorNegotiableMOQ: 10 Pieces
-
3515BY 24V Permanent Magnet dc Stepper MotorNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Constar
Model Number
1511BY01
Phase
2
Type
Permanent Magnet
Certification
CE, ROHS
Step Angle(degrees)
9°
Holding Torque
0.8mNm
Current / Phase
0.25A
15mm mini Stepper motor
1. Applications: Security system, office automation system, medical equipment, mini household appliance, toys
2. Operating Environment: -15~+45°c
3.Characteristics:
Standard Size Series |
Dimension |
Voltage (V) |
Resistance |
Step Angle (Deg) |
Detent Torque (mNm) |
Pull-in Torque (mNm) |
Load pull-in Frequency |
Excitation Mode |
1511BY01 |
φ15*11 |
5 |
20 |
9° |
0.8 |
1 |
1000 |
|

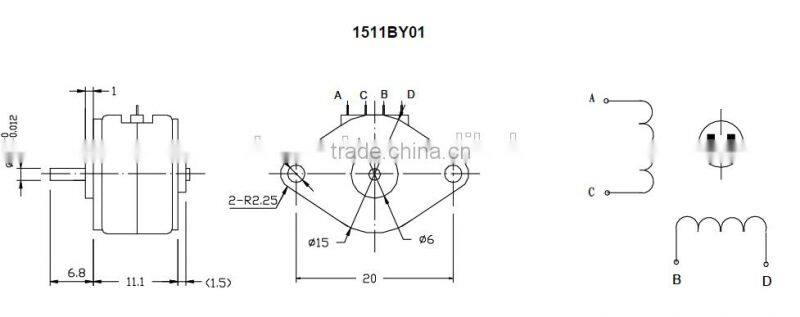

4,Outline Drawing:

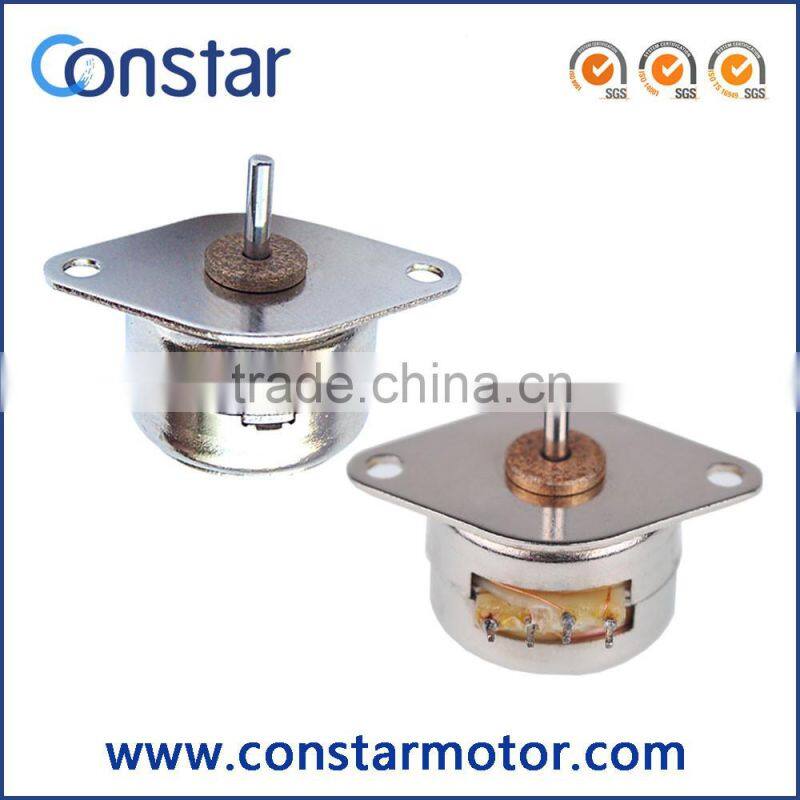

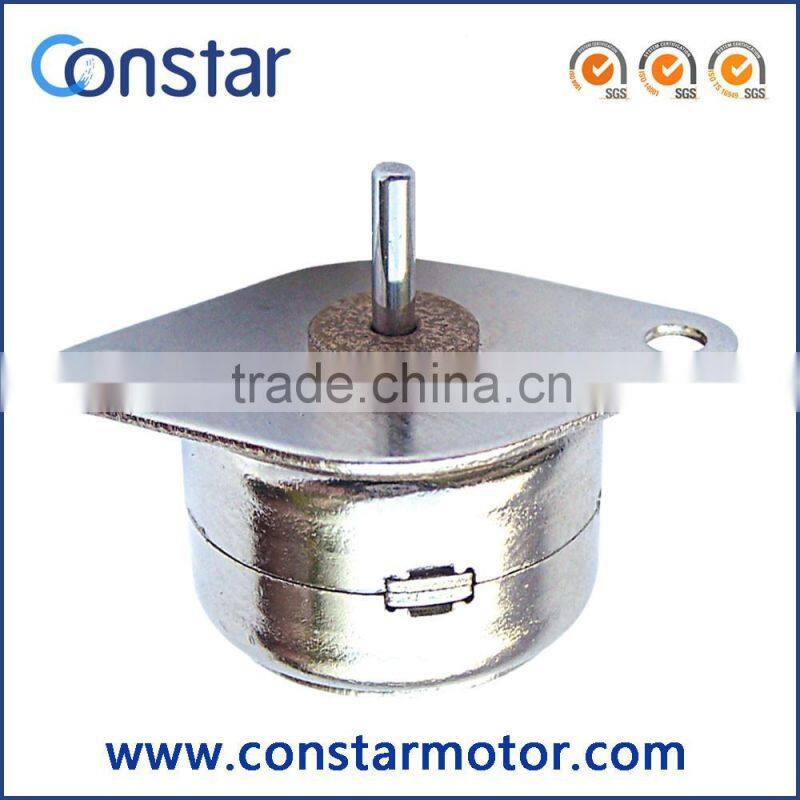

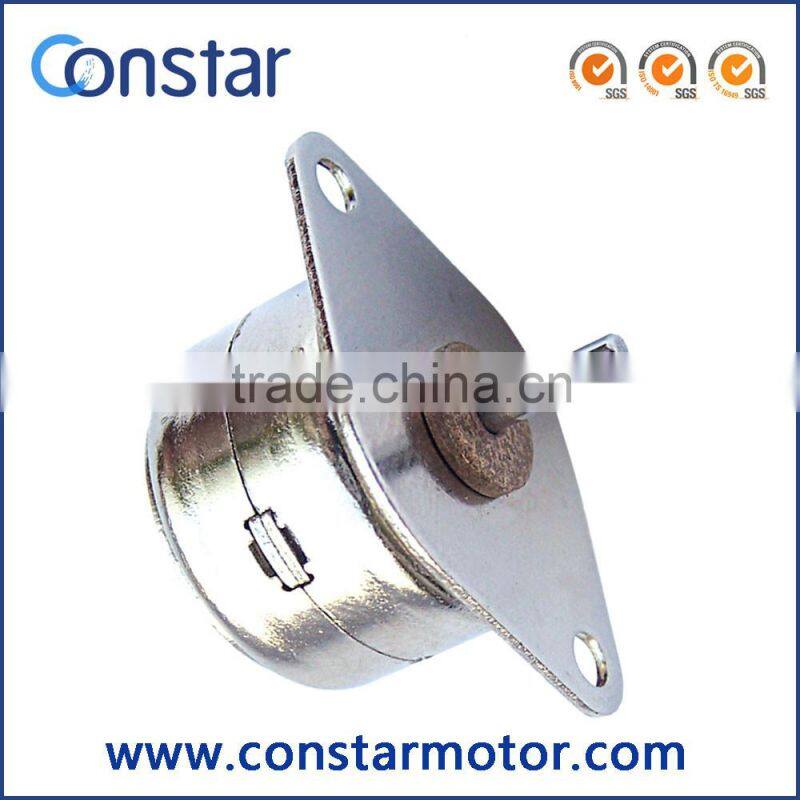

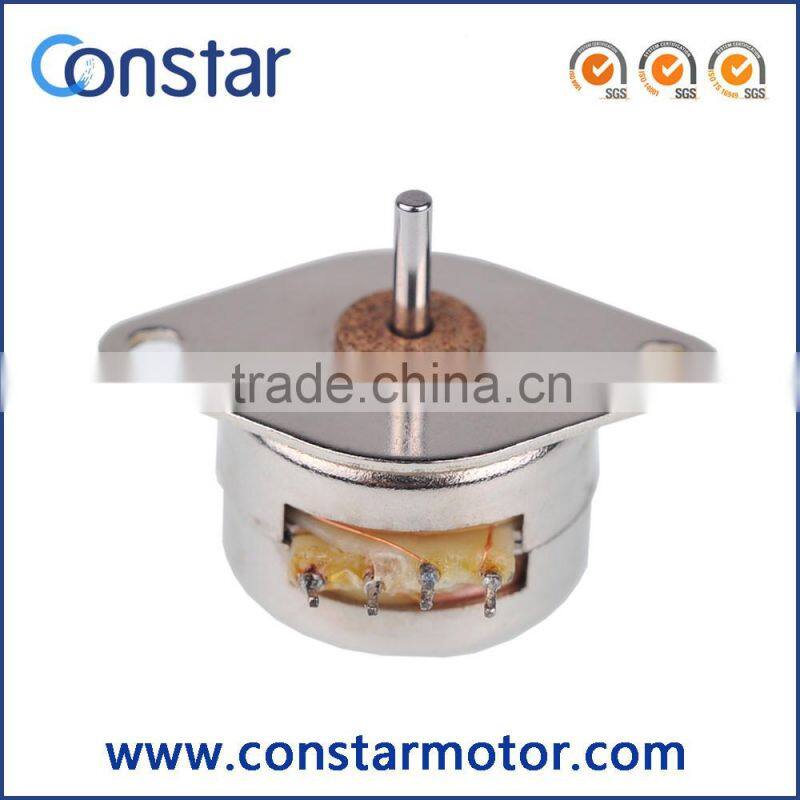

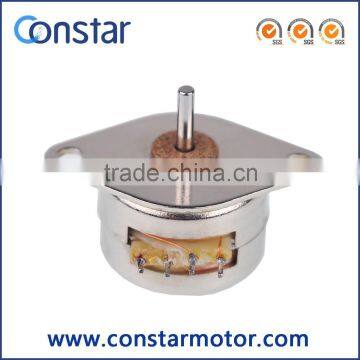

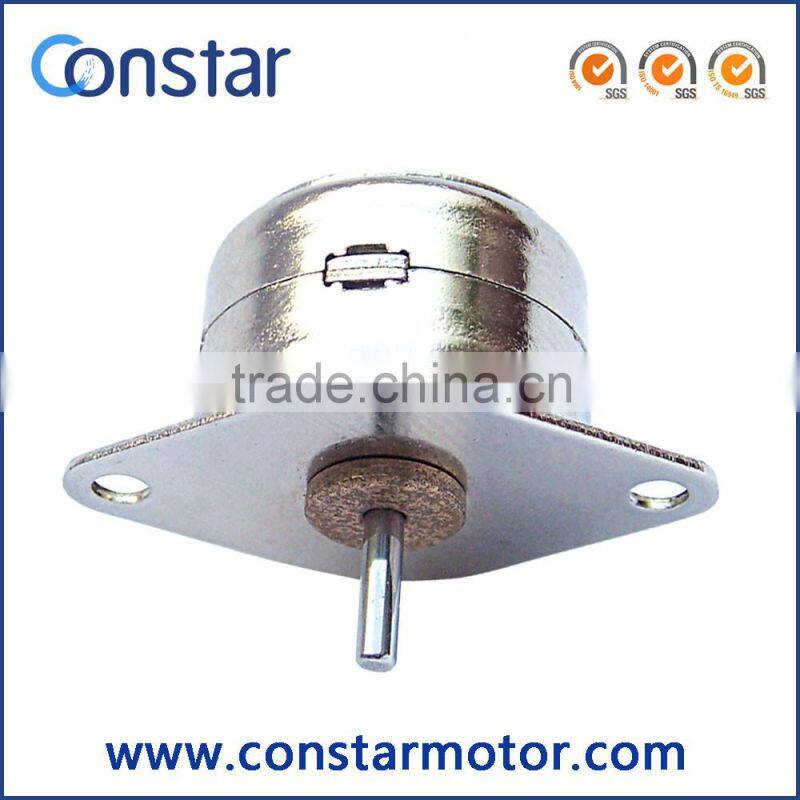

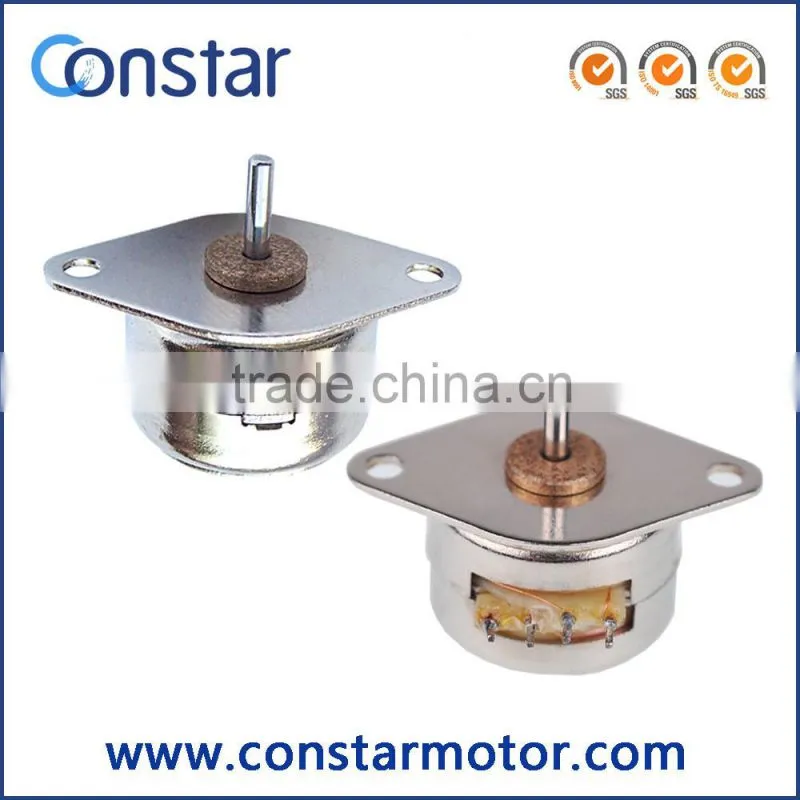

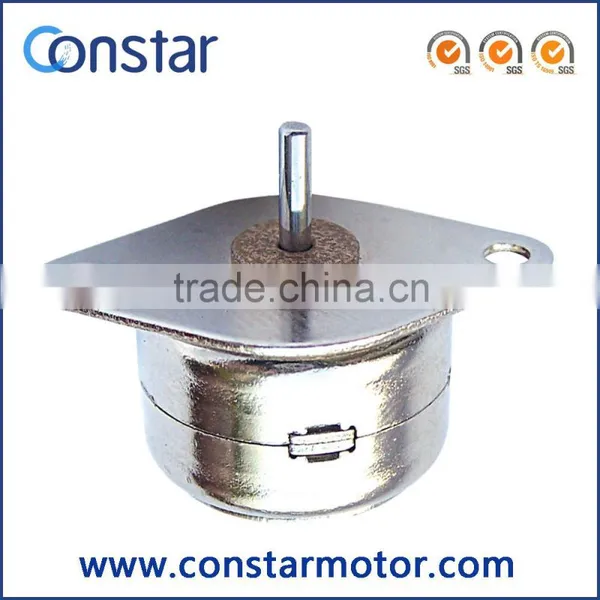

5,Photo:
