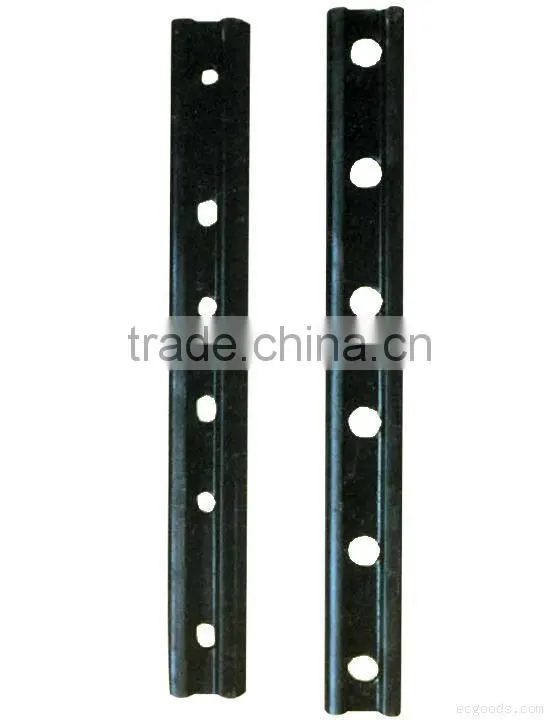

2015 Connecting Railroad Fishplate

Name: 2015 Connecting Railroad Fishplate
Brand: zhongxiang
SKU: 127118915

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Tie Plates

Material:

55Q

Dimensions (L x W x H) (mm):

according to steel rail

Henan Zhongxiang Material Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TianJin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Tie Plates

Material 55Q

Dimensions (L x W x H) (mm) according to steel rail

Place of Origin China

Brand Name zhongxiang

Model Number Rail Fishplate

Fishplate for railway

Detailed Images

In addition rail fishplates available from CDR include:

Chinese standard rail fishplate

Size: 43KG, 50KG, 60KG, 75KG

Austrilian standard rail fishplate

Size: 31KG, 41/47KG, 50KG, 53KG, 60KG, 68KG

British standard rail fishplate:

Size: BS75R, BS80A, BS90A, BS100A, BS113A

UIC (International Union of Railways) standard rail fishplate

Size: UIC54, UIC60

Germany industry standard rail fishplate

Size: Fl10, Fl14, Fl18, Fl20, Fl30, Fl33, Fl41-49, Fl41-54

Brazilian rail fishplate

Size: TJ57, TJ ASCE 90, TJ UIC60

Peruvian rail fishplate

Size: 75LBS A.S.C.E, 75 LBS BSS, 80 LBS A.S.C.E, TJ BS80A

African rail fishplate

Size: 85LB, 85LB-80LB

Item No.	Description	Specification	Material
1	Fish Bolt	22×135, 24×135, 24×145	Q235
2	High-strength Fish Bolt	22×135, 24×135, 24×145	C45
3	Insulated Bolt	22×160, 24×160, 24×170	C45
4	T type bolt	M24x110	Q235
5	Flat Washer	6×25×50	Q235
6	Spring Washer	20×8, 24×8, 26×8
7	Double Spring Washer	26×8
8	Gauge apron	10#, 13#, 14#, 20#	Q235
9	Antiseptic gauge apron	10#	Q235
10	Elastic rail clip	Type	60Si2Mn
11		SKL serious Type	60Si2Cr, 38Si7
12		G Type	60Si2MnA
13		W Type	60Si2MnA
14	Antiseptic elastic rail clip	B Type	60Si2MnA
15	Rubber tie plate	P43, P50, P60	Rubber
16	Steel Tie plate/ base plate		QT450-10
17	Rail anchor		QT450-10, Q235A, QT400-15
18	Screw spike	M22x185, M24x195	Q235
19	Square head screw spike	22x145, 22x155, 22x165	Q235A
20	Hexagon screw spike	22x145, 22x155, 22x165, 22x185, 22x195	Q235A
21	Dog Spike	16×165
22	Nylon apron block	V type, 0-4#, 2-6#	polyamide 66
23	Insulated Rail Gauge Rod	¢32, ¢36
24	Rail Gauge Rod	¢32, ¢36
25	Fish plate	43kg, 50kg, 60kg, 75kg	B7. 45#
		BS60, BS75R, BS80A, BS90A	B6, B7
		Insulated fish plate (43, 50, 60, 75)..	B6, B7
		UIC60, UIC54	50#, 45#
