17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor

Constar Micromotor Co., Ltd.
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor thumbnail-1
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor thumbnail-2
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor thumbnail-3
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor thumbnail-4
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor thumbnail-5
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor photo-1
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor photo-2
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor photo-3
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor photo-4
17mm No-load Speed 25500rpm Micro dc Coreless Motor,toy Airplane Motor photo-5
US$ 2 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Constar
Model Number:
1718RN51-57-7.4
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Constar
Model Number 1718RN51-57-7.4
Usage Other, medical,health care and industrial automation., medical,health care and industrial automation.
Certification CE, ROHS
Type Micro Motor
Torque 2.2mNm
Construction Other, precious metal commutation
Commutation Brush
Protect Feature Other, *
Speed(RPM) 21100rpm
Continuous Current(A) 962mA
Output Power 9.68W
Voltage(V) 7.4V
Efficiency Other, *

17mm No-load speed 25500rpm micro dc coreless motor,toy airplane motor



1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment


2.Operating Environment:  -10~+60°C; 15~90%RH


3.Characteristics:

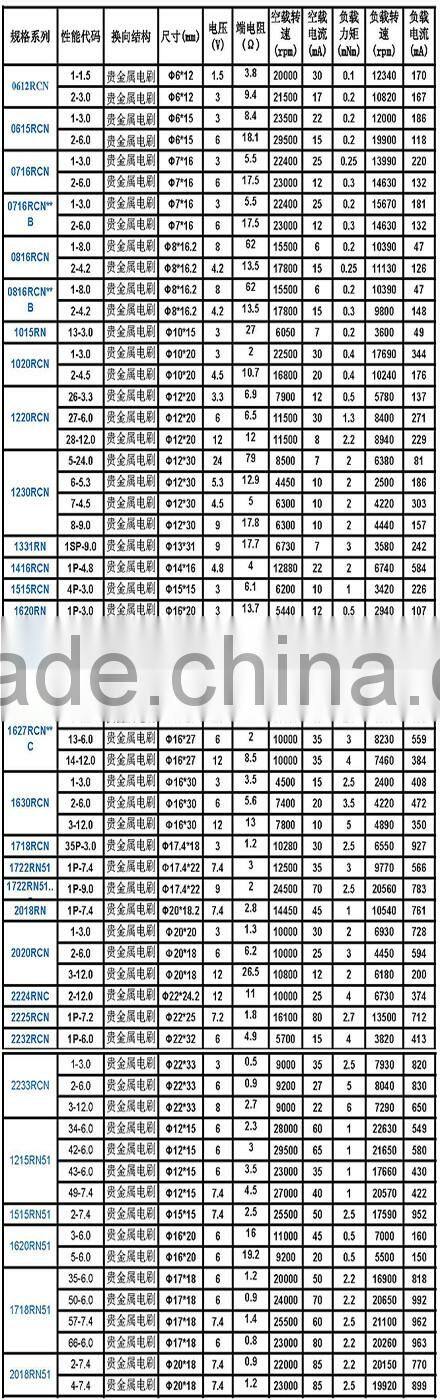

The following are our standard products, we also provide customized products and service.

Series

Performance

Code

Commutation Structure

Dimension

(mm)

Voltage

(V)

Termanal resistence (Ω)

No-load

Speed

(rpm)

No-load

Current

(mA)

Load

Torque

(mNm)

Load

Speed

(rpm)

Load

Current

(mA)

1718RN51

35-6.0

Precious Metal

Φ17*18

6

1.2

20000

50

2.2

16900

818

50-6.0

Precious Metal

Φ17*18

6

0.9

24000

70

2.2

20650

992

57-7.4

Precious Metal

Φ17*18

7.4

1.4

25500

60

2.5

21100

962

66-6.0

Precious Metal

Φ17*18

6

0.8

23000

80

2.2

20260

963



4. Options:   Lead wires length, shaft length, special coils, gearheads, encoder.

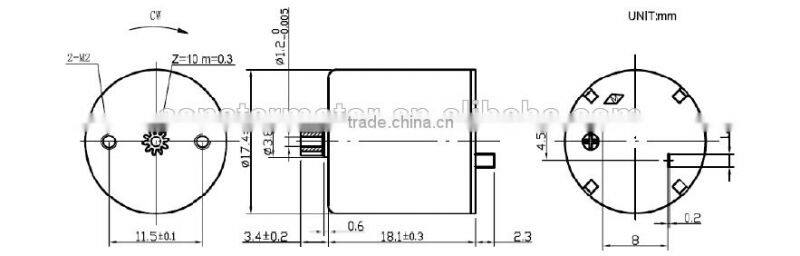

5,Outline Drawing:

17mm No-load speed 25500rpm micro dc coreless motor,toy airplane motor



17mm No-load speed 25500rpm micro dc coreless motor,toy airplane motor17mm No-load speed 25500rpm micro dc coreless motor,toy airplane motor



6,Our Other Item:

17mm No-load speed 25500rpm micro dc coreless motor,toy airplane motor
