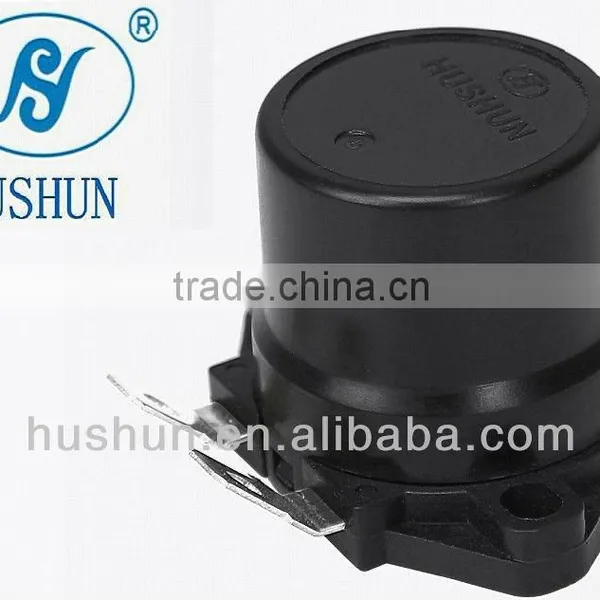

Gas Heater Tilt Switch

Name: Gas Heater Tilt Switch
Brand: HUSHUN
SKU: 127103695

US$ 0.6 - 0.8 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HUSHUN

Model Number:

LXW-DC

Guangdong Hushun Electric Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHUNDE

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HUSHUN

Model Number LXW-DC

Usage Gas Sensor

Theory Resistance Sensor

Output Switching Transducer

Product name: Sealed Tilt switch DC

The Operating Angle can be made specially according to your own specifications.

Code	Items	Testing Standard Parameter
1	Operating Angle	Tilt of 8 to 15 degrees. The value of tilt degress is specified when the switch is tilted gradually(approx.1 degree/s).
2	Returning Angle	Tilt of more than 5 degrees
3	Permissible Mounting Level	1 degree max. from the horizontal
4	Contact Form	Normal Close contact
5	Mounting	Pitch:32mm 2 Screws (M3)
6	Soldering	Soldering Iron: temperature 350±10°, 3 sec. Max
7	Ratings	5V DC, 0 .1mA to 30V DC, 100mA (Resistive load)
8	Insulation Resistance	>100MΩ
9	Contact Resistance	<30mΩ
10	Mechanical life	>1×10⁶times
11	Electrical Life	30V DC 100mA >100,000 times ,Note: when AC 250V 0.1A>10,000times
12	Operating temperature and humidity	Temperature: -25° to +85°(with no icing and condensation) Humidity: 45 to 95% RH
13	Storage temperature and humidity	Temperature: -25° to +60°(with no icing and condensation) Humidity: 45 to 95% RH
14	Protection	IP67
