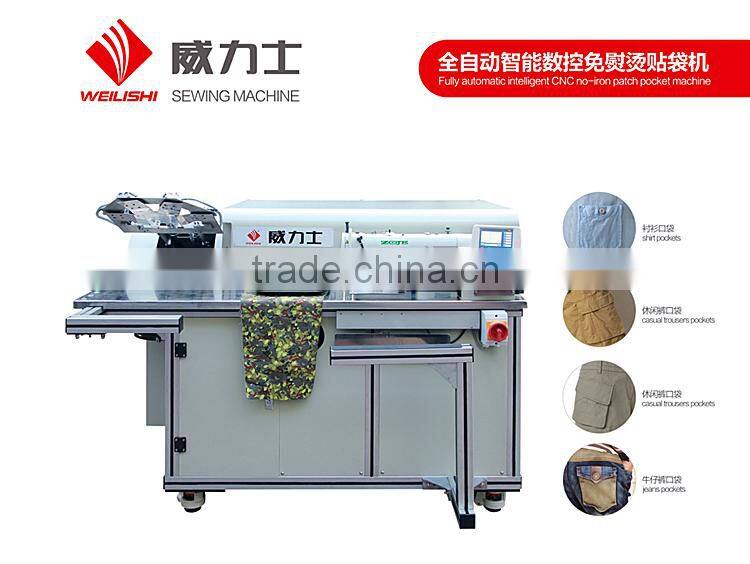

WLS-188 Auto Pocket Setter (Pocket Attaching) Sewing Machine (Pattern Programmable)

Product Application

My company production of WEILISHI series CNC multi function patch pocket machine, for today's recruitment difficulties, high labour costs and sewing process complex individual requirements, break through the traditional concept of the study, the most advanced computer control technology into the sewing machine, adopting the optimization design, make traditional sewing process has been a subversive update, production efficiency is greatly improved.

Wide application, can be widely used in shirt, jeans, T shirts, shorts, coats, casual pants, suits, cases, and so on.

Main Features

1) One button operation, workers to operate as long as click on the start button, the machine will automatically run.

2) automatic folding no-iron patch pocket machine

3)every hour can delicate sewing 240 pockets

4) Running in a high automatization and intellectualization,no pollution

5) can choose automatic folding feeding work mode

6)have semi-automatic prepare folding edge feeding work mode

7)applicable to the following material's pocket sewing: the net color denim fabric, shirt and other garments. Also widely used in luggage bag's pocket sewing.

POCKET SEWING MACHINE Parts

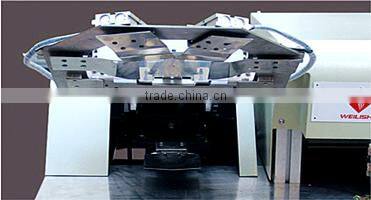

Name: Automatic Identification System

①simple and accurate, greatly improve efficiency.

when it no pocket on the tongue, the machine will stop work.

②the whole machine using servo motor control system, repeat positioning accuracy can reach to 0.001mm

POCKET SEWING MACHINE Parts

Name: Automatic tightening system

①Automatic folding no-iron patch pocket machine;

②Machine use of scanner identification, simple and accurate, greatly improve efficiency;

③original machine head can be replaced, can sewing thick material and thin material;

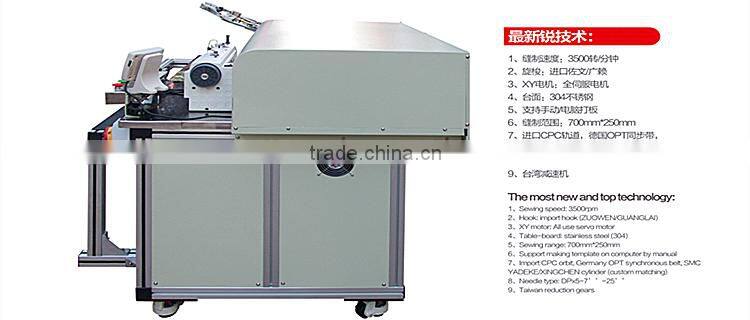

POCKET SEWING MACHINE specification

Name: Automatic disconnection system

① sewing speed: 3500rpm
② Hook: import hook (ZUOWEN/GUANGLAI)
③ XY motor: all use servo motor
④ table-board: stainless steel (304)
⑤ sewing range: 700mm*250mm
⑥ support making template on computer by manual
⑦ import CPC orbit, Germany OPT synchronous belt, SMC/YADEKE/XINGCHEN cylinder (custom matching)
⑧ needle type: DP*5-7#-25#
⑨ Taiwan reduction gears

POCKET SEWING MACHINE Parts

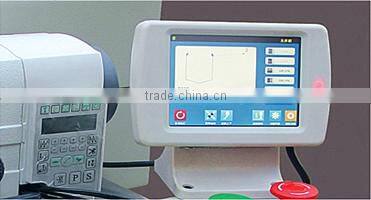

Name: center control systerm
①the whole machine adopts CNC processing center design principle;

②computer control system adopts ARM processor, it can realize the safe operation of the dual mode model;

③the whole movement parts using the flexible judgment, can avoid wrong operation lead to bad product produce;

④every hour can delicate sewing 240 pockets
