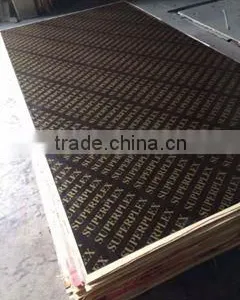

Linyi Film Faced Plywood / Double Sided Laminating Film Shuttering Ply
Product Name |
Shuttering Plywood / Construction Ply Wood |
Color of Film |
Black, Brown, Dark Brown, Red |
120G/M2, 135G/M2,150G/M2, 180G/M2, 220G/M2, 240G/M2 | |
Finish of Film |
Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-slip |
Origin of Film |
Imported, Domestic |
Core |
Poplar, Combi, Eucalyptus, Birch, Bamboo, Mixed Hardwood, Imported Hardwood |
Glue Type |
MR, E1, E2, Melamine, WBP, Phenolic WBP |
Thickness |
6mm, 9mm, 10mm, 12mm, 15mm, 16mm, 17mm, 18mm, 20mm, 21mm, 22mm, 25mm, 28mm, 30mm |
Size |
915x2135mm, 610x2440mm, 615x2500mm, 1200x1800mm, 1200x2400mm, 1200x1830mm, 1220x2440mm, 1250x2500mm,1500x3000mm, 2000x5200mm |
*also named: Formwork Plywood, Construction Plywood, Concrete Form work plywood
Features & Technical Data
Board Density |
>530KGS/M3(Poplar Core), >630KGS/M3(Combi Core) |
>700KGS/M3(Birch Core), >700KGS/M3(Bamboo Core) | |
Tolerance of Thickness |
+ / - 0.5mm |
Tolerance of Length/Width |
+ / - 2mm |
Number of Layers |
From 5 up to 21 depending on thickness |
Edges Processing |
By waterproof Acrylic Pain |
Moisture |
≤9% |
Formaldehyde Emission Class |
E1 (up to 8 mg per 100g of bone dry plywood) |
Ultimate Shearing Strength |
Not less than 1.5Mpa (Birch Core), not less than 1.0Mpa (Combi Core), not less than 0.7MPa(Poplar Core) |
Abrasion |
≤0.1G.100G |
Impulsion |
40KJ/M2 |
Modulus of Elasticity |
≥5000 MPa |
Bending Strength |
≥40MPa |
Warp Degree |
≥1% |
Expansion Rate of Thickness |
≤8% |
Time of Usage |
≥5-20 Times (depends on quality grades) |
Certification |
ISO9001:2008, FSC, CARB, SGS, DIN68705-3, EN13986, EN636-3 |
Application |
Construction, Truck/Container Flooring, Packaging |
Factory description:
Founded in 1998, Jinhua Decorative Boards Co., Ltd is a leading enterprise in Linyi city specializing in the production of all kinds of commercial plywood ,fancy plywood, glossy/matt polyester plywood ,PVC plywood and all sorts of decorative plywood; it is located at the Zhubao Industrial Zone, Lanshan District, Linyi City, Shandong Province ------ one of the three largest well-known board production bases in China, with convenient traffic; and it is near the Beijing-Shanghai Highway and Rizhao-Dongying Highway, with beautiful environments and excellent geographical location.
