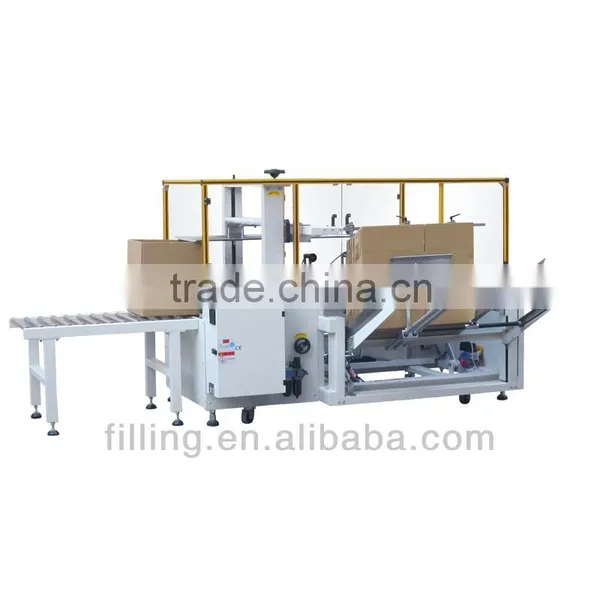

Automatic Carton Sealer GPK-40
GPK-40 is a carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. Machine can do 12 carton forming and tapping in every min. very efficiency and convenient. Carton board can be loaded without stopping the machine. Packing line will not stop during the continuous packing flow. Carton packing size can be adjust manually. Easy to operate and maintain.
Description
Technical Parameter
Model GPK-40
Production speed 12ctns/min
Power supply 110V/220V,1P,50-60HZ 200W
Carton size(mm) L250-450 * W150-400 * H100-400
Air compressing 0.4-0.75 Mpa
Air comsumption : 450NL/MIN
Machine dimension L2000xW1900xH1450mm
Machine weight: 450KG
Adhesive tape width 48/60/75MM
Configuration
1. Bearing: China HRB with good quality, the famous brand of world
2. Electricity box: Special design, move freely
3. Double insurance: China CHINT, greater security for install two insurances in air switch and safety switch
4. Belt: Italy imported material, durable in use
5. Cylinder: Taiwan Shako, accurately
6. PLC: Japan Omron
7. Sensor: Germany Leuze
8. Motor: Taiwan Luyang, high quality, low failure rate
9. Cutter: Japan SK-12, stainless steel cutter, sharp and durable
10. Electric: French Schneider, high quality parts
11. Caster:YX-200, durable in use
12. Relay: Japan IDEC
13. Tape head can be exchanged from 2 inch to 3 inch.
Options
1. Can use International famous brand parts.
2. Can choose color
3. Can be added anti-explosion function.
4. Can be added full protective cover.
5. Can be added safety switch, when the protective cover is opening, the machine will stop
6. Stock chest can be lengthened or change to pneumatic horizontal pushing-type
7. In-feed way can be opposite.
8. 110V, 220V, 380V
9. Plug type selective.
10. Alarm for tape lack and break
11. Stainless steel
12. Can erect cube carton
13. Four belts driven for high carton
14. Erecting sizes: height: 80-1200mm; width: 100-400mm; length: 100-850mm.
15. Customized table height.
