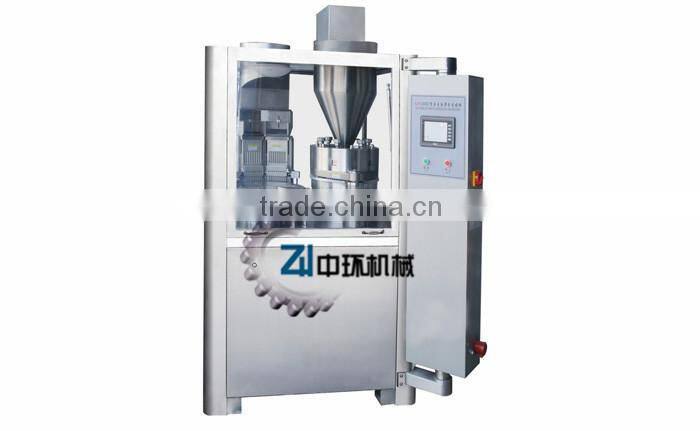

NJP-3500/2000A/C Automatic Pharmaceutical Capsule Filling Machine

NJP-3500/2000A/C Automatic Pharmaceutical Capsule Filling Machine photo-1
US$ 5,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Medical
Packaging Type:
Capsule
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Medical
Packaging Type Capsule
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/220V
Power 8-10KW
Place of Origin Zhejiang, China
Brand Name ZHONGHUAN
Model Number NJP-3500/2000A/C
Dimension(L*W*H) 1000*1300*1900
Weight 2000kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

NJP-3500/2000A/C Automatic Pharmaceutical Capsule Filling Machine



Performance and characteristic:

1.Small volume,low consumption of energy,simplification in changing modules.Easy operating and cleaning.

2.Adopt Fugexan eliminating Ma's trough roller to transmit,less vibration,its noise is lower than 75dB while running at top speed.Dose difference is controlled within ±3%.

3.The rate of capsule flling is>99%.

4.The turning-around parts are in full closure,having excellent lubricating cond-itions.Without old spot on the working bench,avoiding the cross pollution with medicines.Around the dosedish are fixed with shelter,which can reduse the medicine powder cast from under the dish through another pipe.

5.Meanwhile,it can reduce the dust on the surface of the bench.

6.Adopt the SIE MENS man-machine interface(including PLC programming controller,crystal screen displaying the out pulteach minute,accumulative output,dynamic empty capsules and medicine powder state,alarming for lacking of capsules and insuffi-cient medicine powder stop,trouble shooting display and soon)It has communication fhermal.

Main technical data:

ITEM 3500 2000

MODEL

Output(pcs./min)                          3500                      2000

No. of segment bores                      25                       18

Appropriate for Capsule                 00#-4#                  00#-4#

Total Power                                  10.5KW                  8KW

Overall Weight                              3000Kg                   2000Kg

Overall Dimension(mm)                 11700×1560×2000   1000×1300×1900
