MT-48W Full Automatic Hydraulic Plastic Cap Compression Moulding Machine

Name: MT-48W Full Automatic Hydraulic Plastic Cap Compression Moulding Machine
Brand: Weiye
SKU: 127076963
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Driven Type:

Hydraulic

Taizhou Jiaojiang New Weiye Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Driven Type Hydraulic

Automatic Grade Automatic

Power 46KW

Packaging Type Cartons

Packaging Material Wood

Place of Origin Zhejiang, China

Brand Name Weiye

Model Number MT-48W

Specifications

1.Mold number:48 cavity
2.Output per hour:30000-36000pcs
3.Total power:46kw
4.Voltage:380v-50hz,415v-50hz,440v-50hz

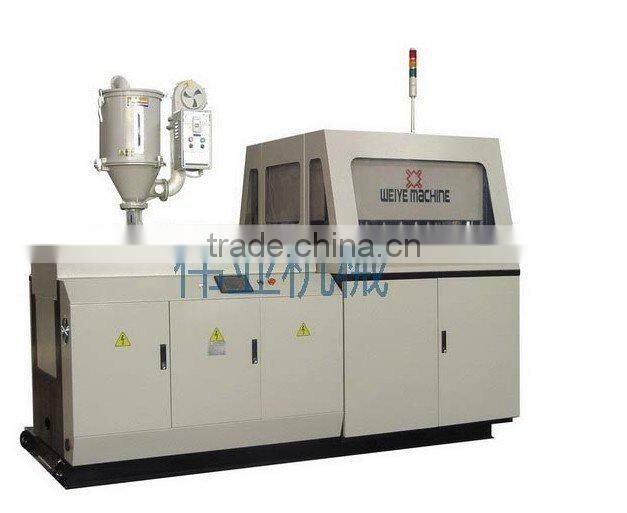

Full automatic plastic bottle capping molding machine

1.Mold number:48 cavities
2.Output per hour:30000-36000pcs
3.Total power:46kw
4.Voltage:380v-50hz,415v-50hz,440v-50hz

5.Type:MT-48W

Basic Equipment

ntrol system :Import PLC+Temperature contor model+Import touch screen+Malfunctionalert+Data storage

2. Air drive system:Import SMC

3.Extruder system:Hard gear surface reduce+Inverter

4.Minimum order quatity:1Set/Sets

5.Port:Ningbo

6.Payment terms:T/T

7.Packaging details:Our products start with a fixed metal framework and then the wood packaging

8.Delivery time:2-3Months

Technical parmeters

Min. cap diameter:22mm	No gate point	High finish	Compressed air:0.8MPa 0.3m³
Max. cap diameter:33mm	No micro holes	higher weight consistency	Screw diameter:70mm
Min. cap height:10mm	Better aesthetic look	Continous process	Mold number:48 capvity
Max. cap height:50mm	Higher productivity	No colour streaks	Low melt temperature
Output each hour:30000-36000mm	Low energy requirement and cost	Low rejection	Less wear and tear
Total power:46KW	Low production cost	Low mould investment
