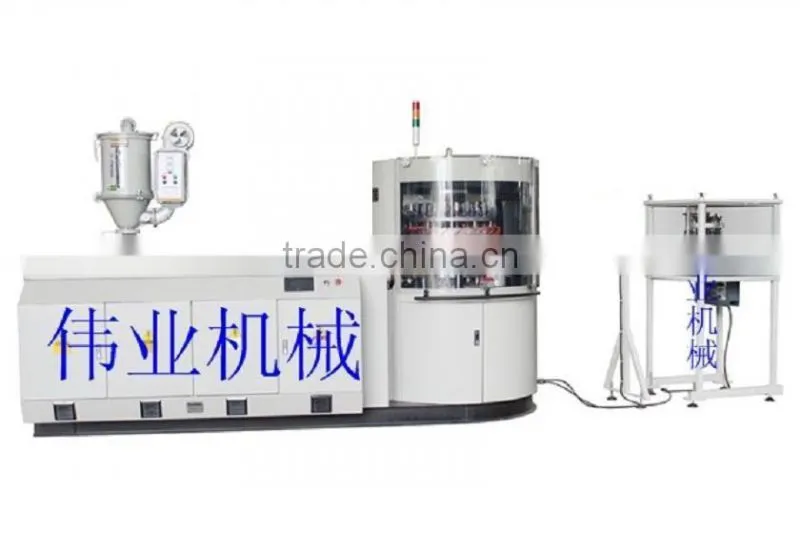

MR-24W Series of High Speed Full Automatic Plastic Cap Making Machine

Name: MR-24W Series of High Speed Full Automatic Plastic Cap Making Machine
Brand: Weiye
SKU: 127075997

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Driven Type:

Mechanical

Taizhou Jiaojiang New Weiye Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Driven Type Mechanical

Automatic Grade Automatic

Power 22kw

Packaging Type Cartons

Packaging Material Wood

Place of Origin Zhejiang, China

Brand Name Weiye

Model Number MR-24W

Specifications

1.Mold number:24 cavity
2.Output per hour:12000-15000pcs
3.Total power:22kw
4.Voltage:380v-50hz,415v-50hz,440v-50hz
5.8T

Basic Equipment

1.Mold number:24 cavity
2.Output per hour:12000-15000pcs
3.Total power:22kw
4.Voltage:380v-50hz,415v-50hz,440v-50hz
5.8T

ntrol system :Import PLC+Temperature contor model+Import touch screen+Malfunctionalert+Data storage

2. Air drive system:Import SMC

3.Extruder system:Hard gear surface reduce+Inverter+Conserves energy the heater

Min. cap diameter:20mm	Compressed air:0.8Mpa 0.3m³
Max. cap diameter:45mm	Screw diameter:70mm
Min. cap height:10mm	Heating power:10kw
Max.cap height:30mm	Provide plastic motor power:7.5kw
Output each day:280000-320000pcs	Mold number:24 cavity
Power:22kw	Main motor power:3kw
Contour dimensions:3800Χ1600Χ2580mm	Power supply voltage:380v-50hz,415-50hz,440-50hz
Machine weight:8t

Basic Feature

Min. cap diameter:20mm	Compressed air:0.8Mpa 0.3m³
Max. cap diameter:45mm	Screw diameter:70mm
Min. cap height:10mm	Heating power:10kw
Max.cap height:30mm	Provide plastic motor power:7.5kw
Output each day:280000-320000pcs	Mold number:24 cavity
Power:22kw	Main motor power:3kw
Contour dimensions:3800Χ1600Χ2580mm	Power supply voltage:380v-50hz,415-50hz,440-50hz
Machine weight:8t
