Specifications
1.daily output:720000-860000caps2.cap diameter:25-30mm
3.cap height:10-30mm
4.mold number:24cavities
5.power:12.8kw

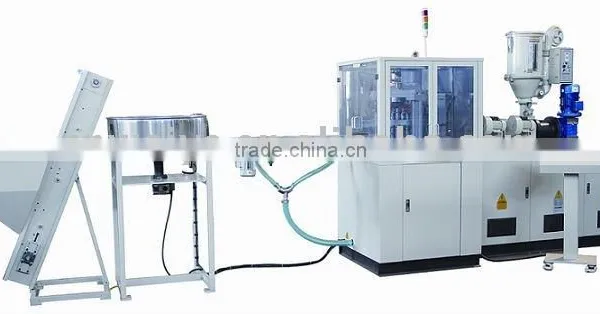

MS-24W Plastic cap lining machine
The machine is used for making inner mats for plastic lids,and the inner soolves the problems of water and gas leakage,and make the sealing structure to reach the requirements of reasonable standard.
Basic Equipment:
Control system:Imported PLC+Temperature control module+Imported touch
screen
Air drive system:Import SMC
Extrusion system:Hardened-gear speed reducer+Inverter+Enedrgy-saving
heater
MS-24W Technical parameters
| Min.cap diameter:25mm |
| Max.cap diameter:30mm |
| Min.cap height:10mm |
| Max.height:30mm |
| Daily output:720000-860000caps |
| Power:12.8kw |
| Power supply voltage:3AC/N/PE 220v60hz 380v50hz 415v50hz 440v60hz |
| Compressed air:0.8MPa 1.5m3(self-supply) |
| Mold number:24cavities |
| Contour dimensions:6500X1800X2600mm |
| Machine weight:3T |
Function
♦Low pressure alarm/mold data storage
♦Temperature PID control,make sure the high quality and high accuracy.
♦If the electric heating temperature do not reach at the setting
temperature,the cold slug can prevent from starting.
♦Monitor,calculate,alarm,self-diagnosis device.
♦Temperature deviation alarm
♦Pladtic drop detection system is optional.
