Home > Manufacturing & Processing Machinery > Agricultural Machinery > Tiller > 12HP Diesel Engine Power Tiller GT-125

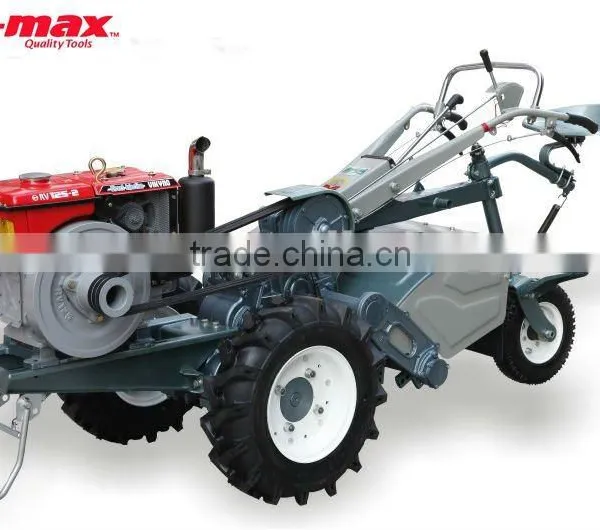

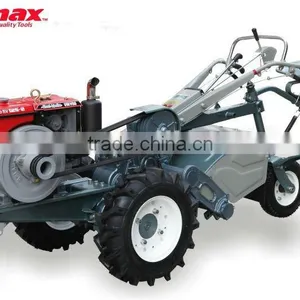

12HP Diesel Engine Power Tiller GT-125
Negotiable
MOQ: 10 Plants (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Power Tiller Walking Tractor SH121NegotiableMOQ: 20 Pieces -
4WD Diesel Farm Tractor SH254NegotiableMOQ: 10 Pieces
-
2'' Water Pump For Power TillerNegotiableMOQ: 300 Pieces
-
Tractor Trailer Four-wheeled Tow Truck 7C-1NegotiableMOQ: 20 Pieces
-
Walking Tractor 80cm Tiller SH80TNegotiableMOQ: 100 Pieces
Condition
New
Type
Farm Cultivator
Power Type
Diesel
Certification
CE
Use
Farm
Place of Origin
Zhejiang, China
Brand Name
G-max
Model Number
GT-125
Specifications
12HP Diesel Tiller1.Most Popular in Sri Lanka
2.Hand Starting
3.OEM order is accepted
12HP Diesel Engine Power Tiller GT-125
Technical Parameter:
-Engine Information:
| Product: | 12HP Diesel Tiller |
| Engine Model: | RV125-2(Original Viet Nam VIKYNO model) |
| Type: | Single Cylinder, 4-stroke, Water-cooled, Horizontal,Diesel Engine |
| Bore x Stock: | 90x94mm |
| Rated Output: | 10.5/2200 HP/RPM |
| Maximum Output: | 12.5/2400 HP/RPM |
| Maximum Torque: | 4.04/1800 kgm/rpm |
| Compression Ratio: | 18 |
| Fuel: | Light Diesel Oil |
| Fuel Tank Capacity: | 9.5L |
| Specific Fuel Consumption: | 185 g/HP/hr |
| Nozzle opening pressure: | 220 kg/cm2 |
| Lubricating Oil: | SAE30,20,10W-30 |
| Lubricating Oil Capacity: | System(L): 2.8 |
| Combustion system: | Direct Injection |
| Starting System: | Handle Starting |
| Lamp: | 6V-25W |
| Cooling System: | Condenser (Radiator) |
| Cooling Water Capacity: | 2.1L |
| Engine Weight: | 105kgs |
-Chassis Information:
| Over Dimensions: | 2950x980x1240mm |
| Wheel Tread: | 570,630,690,750,810mm |
| Tyres: | Front 6.00-12; Rear 4.00-8 |
| Skid Wheels: | 2 Nos.42kgs |
| Ground Clearance: | 210mm |
| Weight(without engine): | 330kgs |
| Speed(km/hr): | Forward 1.41,2.51,4.21,5.22,9.27,15.56 |
| Reverse 1.11, 4.12 | |
| Rotary Tiller: | Model: 1GL-60 |
| Whole weight: 118kgs | |
| Width:600mm | |
| Transmission type: chain drive | |
| Turning Speed:1st: Low:200,High:251; 2nd: Low:233, High:291 | |
| No. of blades: 18 pieces |
Application scope: Plain, mountainous area, hills of small grades, paddy field, and dry land.
Function: Ploughing, rotary tilling, harrowing, reaping, seeding, spraying, pumping, threshing, etc.
Company Profile
Workshop&Testing Room&Warehouse:
Exhibitions:
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2010
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
