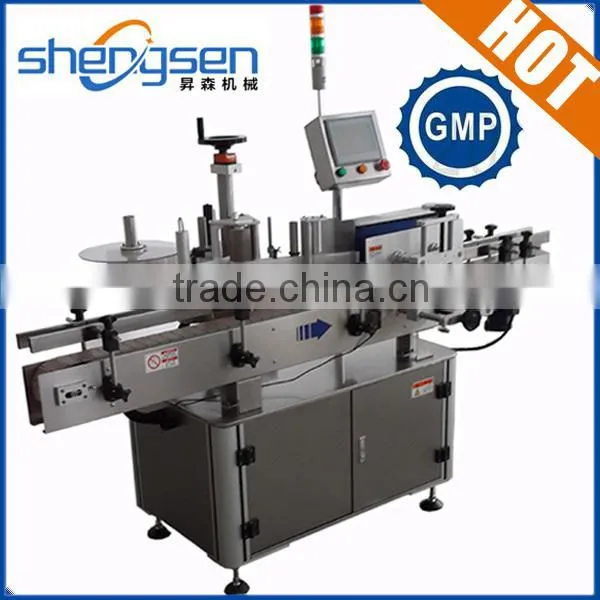

Help CenterHigh-Speed Vertical Labeling Machine for Round Bottles
Related Products
-
Food Labeling Machine for Round BottlesUS$ 4,000 - 8,000MOQ: 1 Set -
Multi-function Labeling Machine With Single-label and Multi-surfacesUS$ 5,000 - 10,000MOQ: 1 Set
-
Shampoo Labeling Machine for Two Side Adhesive LabelingUS$ 12,000 - 15,000MOQ: 1 Set
-
Automatic Wrap Around Labeling MachineUS$ 4,000 - 15,000MOQ: 1 Piece
-
Automatic Cone Labeling Machine /Packaging MachineryUS$ 9,000 - 15,000MOQ: 1 Set
Specifications
1.PLC, touch screen to operate simply2.Korea magic eye,advanced function to reach high accuracy
3.Perfect label on the bottle
Product description
1.The machine is adopted mature PLC control system, running stability, high speed.
2.Operating system adopt touch screen control, simple operation, practical, high efficiency.
3.Advanced pneumatic printer system, handwriting clear, speed and stability.
4.Wide application scope, can label various size of circular objects.
5Attaching and rolling bottles, make tags attached more firm.
6. Can connect production line before and after, also can be equipped with a receiving turntable, facilitate product of collecting, sorting and packaging.
Technical parameters
Voltage specification |
AC220V ,50/60HZ |
Power |
1200W |
Operation direction |
Right -entering,left- entering |
Driving type |
stepping or servo motor |
Labeling speed |
20-300bottle/min |
Labeling precision |
±1 mm(depending on the surface roughnes) |
printed air source |
5kg/cm² |
label scope |
length15-90mm height 15-130mm |
Application containers |
Diameter20-80mm height 30-200mm |
Outside size |
2000(L)×900(W)×1270(H)mm |
optional add parts:code printer ,inkjet machine Pneumatic printer,code bar machine.
Detailed picture:

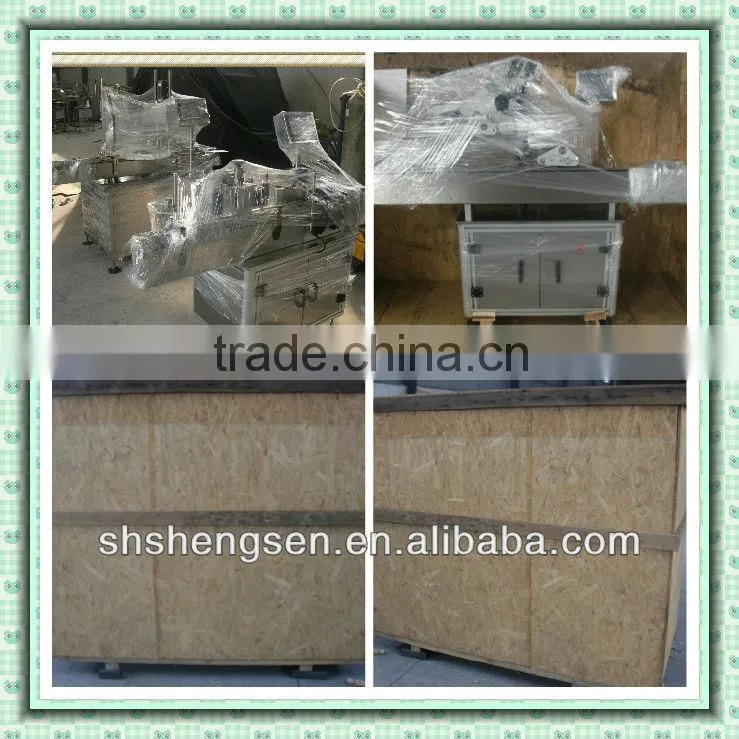

Packing
